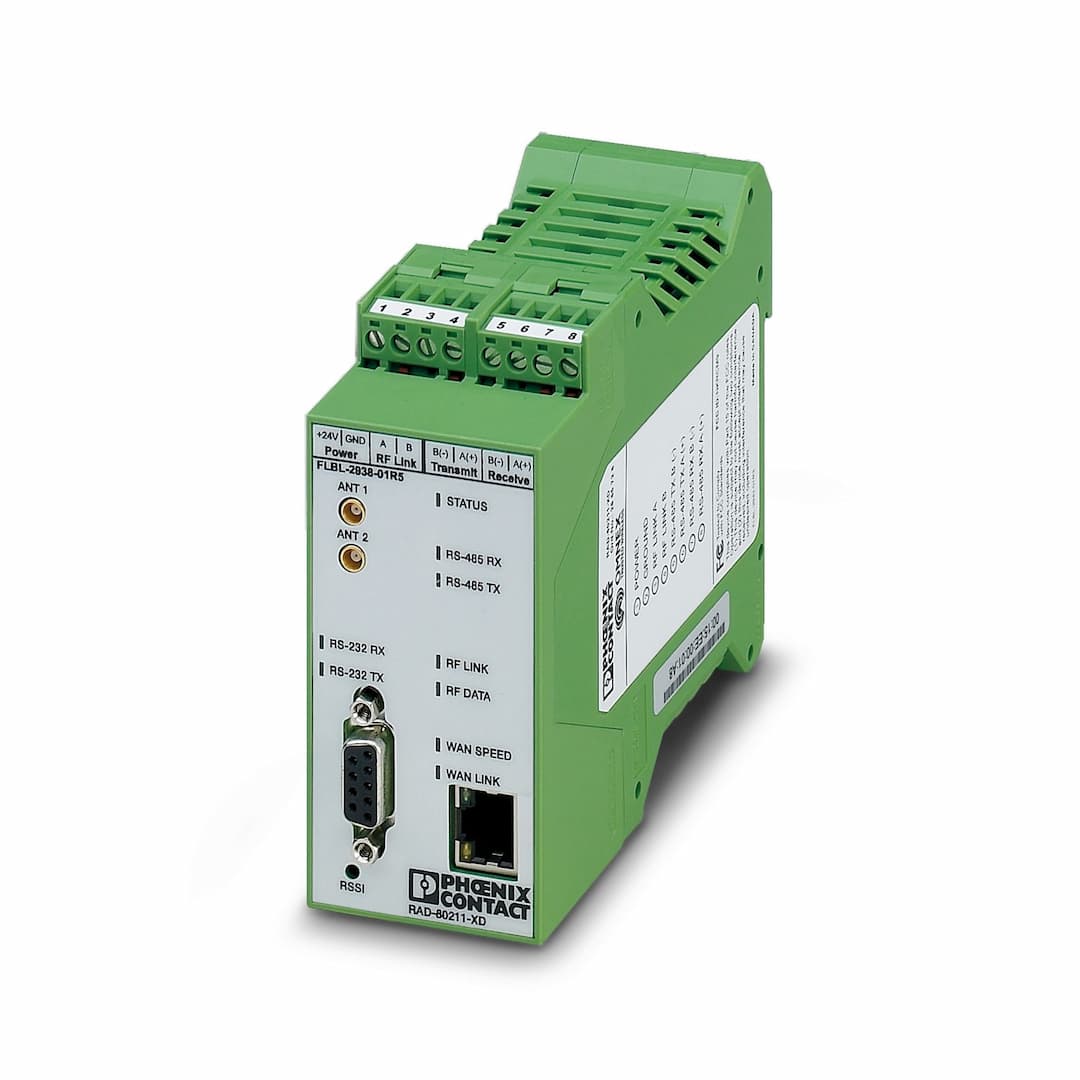

Product Model
RAD-80211-XD
Selling Points
- 1High-Security IEEE Standard 802.11i with AES Encryption: Ensures trusted connections with robust security features.
- 2Versatile Modes: Functions as an access point, client, or bridge for various applications.
- 3Dual-Band Support: Operates in both 2.4 GHz and 5 GHz bands for increased versatility.
- 4Integrated Web Server: Simplifies programming and network diagnostics via a plant floor-friendly web server.
- 5Modbus RTU/TCP Compatibility: Seamlessly integrates with process and industrial applications using Modbus protocols.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Connection method | Via COMBICON |
Supply voltage | 24 V DC | Supply voltage range | 12 V DC ... 30 V DC |
Supply current | 500 mA | Number | 1 |
Connection method | RJ45 jack | Number | 1 |
Operating modes | Access point, client, bridge | Configuration | Web-based management |
Automatic channel selection | yes | Security | WEP 64 bit/128 bit
WPA TKIP
802.11i WPA2 (AES) |
Wireless licenses | USA, Canada | Connection method | D-SUB-9, COMBICON |
Protocols supported | RS-232, RS-485, RS-422 | Antenna connection method | MCX (female) |
Frequency band | 2.4 GHz
5 GHz | Wireless standard | IEEE 802.11
a
b
g
h |
Transmission power | 20 dBm (EIRP) | Number of wireless interfaces | 1 IEEE 802.11 a/b/g |
Width | 45 mm | Height | 99 mm |
Depth | 115 mm | Color | green |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 65 °C |
Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) | Permissible humidity (operation) | 5 % ... 90 % (non-condensing) |
UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D | Mounting type | DIN rail mounting |
Assembly note | Antenna not included |
Specifications may be subject to change without notice
