Product Model

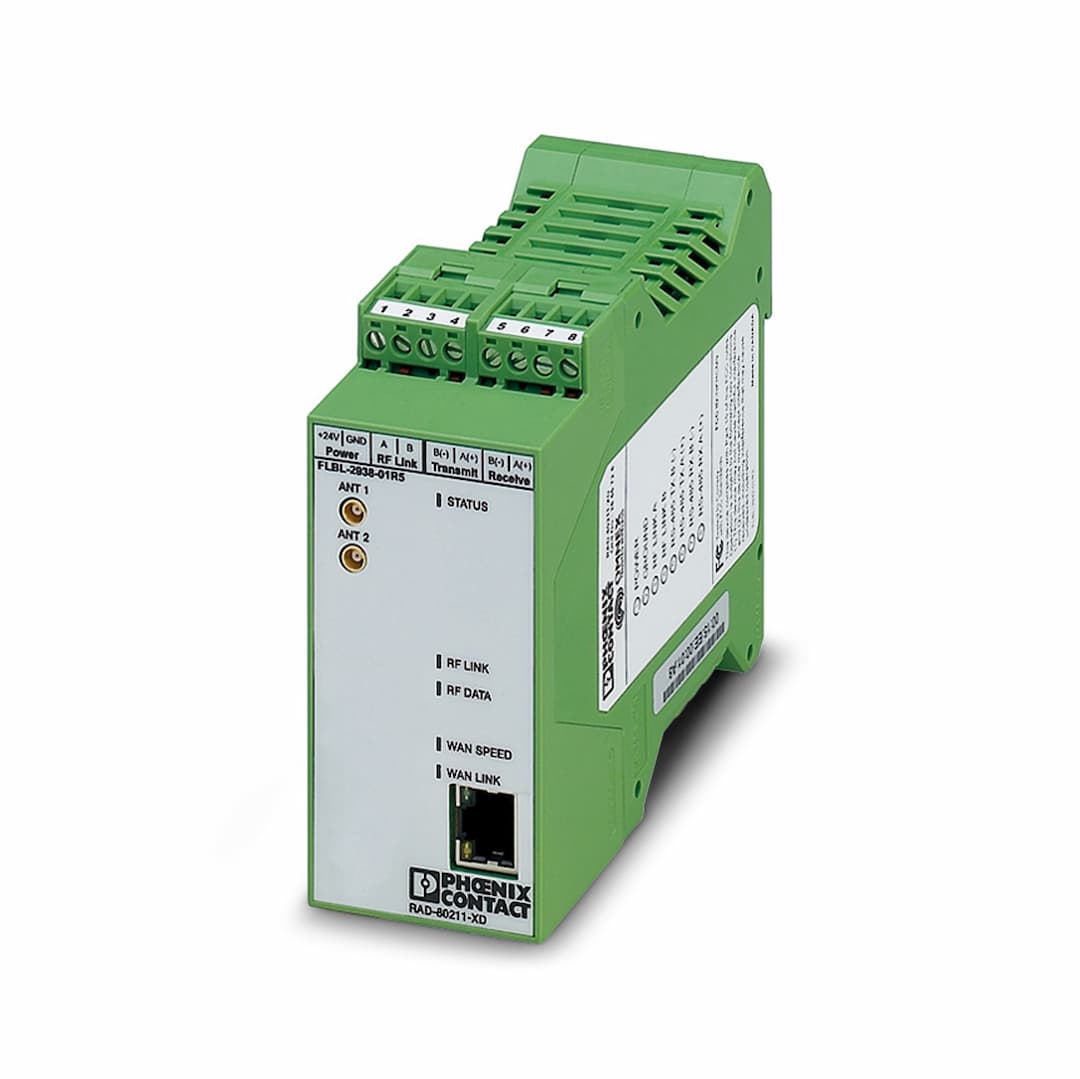

RAD-80211-XDB
Selling Points
- 1High-Performance WLAN Access Point: Reliable and secure connectivity for industrial environments.
- 224 V DC Power: Compatible with a wide range of industrial power supplies.
- 3IEEE 802.11 a/b/g Standards: Supports multiple frequency bands for enhanced coverage.
- 4Web-Based Management: Easy configuration and monitoring via a user-friendly interface.
- 5DIN Rail Mounting: Compact design for seamless integration into control cabinets.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Connection method | Via COMBICON |
Supply voltage | 24 V DC | Supply voltage range | 9 V DC ... 30 V DC |
Supply current | 215 mA (24 V DC)
468 mA (9 V DC) | Number | 1 |
Connection method | RJ45 jack | Number | 1 |
Operating modes | Access point, client, bridge | Configuration | Web-based management |
Automatic channel selection | yes | Security | WEP 64 bit/128 bit
WPA TKIP
802.11i WPA2 (AES)
WPA PSK (preshared key) |
Wireless licenses | Americas, more countries in E-shop | Country support | USA
Canada |
Connection method | D-SUB-9, COMBICON | Protocols supported | RS-232, RS-485, RS-422 |
Antenna connection method | 2x MCX (female) | Frequency band | 2.4 GHz
5 GHz |
Wireless standard | IEEE 802.11
a
b
g
h | Transmission power | 20 dBm (EIRP) |
Number of wireless interfaces | 1 IEEE 802.11 a/b/g | Width | 45 mm |
Height | 99 mm | Depth | 113 mm |
Color | green | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 65 °C | Air pressure (operation) | 795 hPa ... 1080 hPa (up to 2000 m above sea level) |
Permissible humidity (operation) | 5 % ... 90 % (non-condensing) | UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D T5 |
FCC | Part 15 | Mounting type | DIN rail mounting |
Assembly note | Antenna not included |
Specifications may be subject to change without notice
