Product Model

RAD-80211-XD/HP

Manufacturer

Phoenix Contact

Category

Unclassified

Product ID

20445

In Stock
Last updated: 2025/4/19
View Specifications

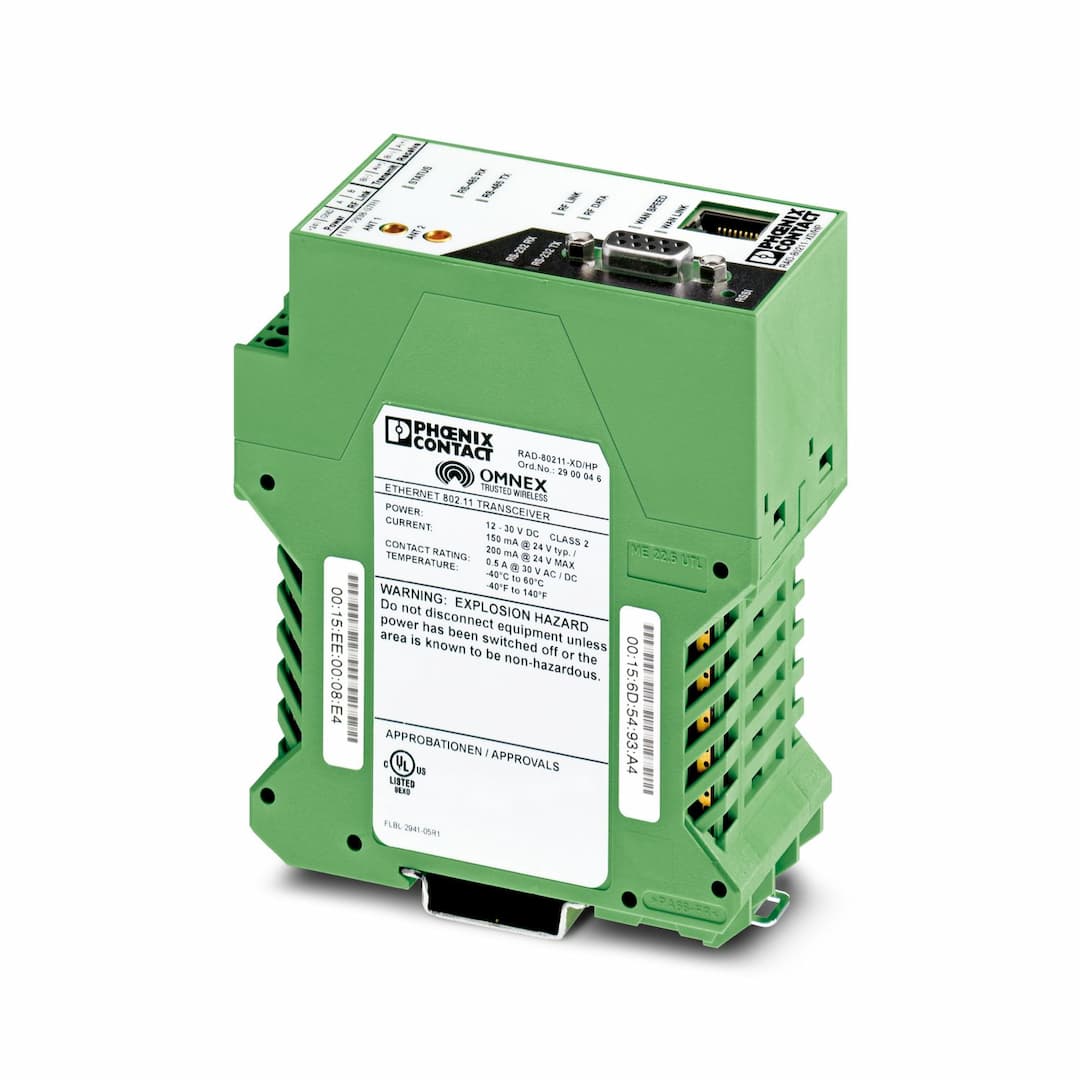

Phoenix Contact RAD-80211-XD/HP

Selling Points

  • 1High-power WLAN transceiver with 400 mW transmission power.
  • 2Supports up to 40 nodes in a single mesh network for reliable wireless communication.
  • 3Integrated web browser interface for easy configuration as an access point, bridge, or client.
  • 4Secure data transmission with 128-bit AES encryption and optional 802.1x authentication.
  • 5Compatible with legacy serial devices via RS-232, RS-422, and RS-485 interfaces.
Product Details
RAD-80211-XD/HP
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Wireless module
Supply voltage
24 V DC
Supply voltage range
12 V DC ... 30 V DC
Typical current consumption
230 mA
Max. current consumption
280 mA
Connection method
Screw connection
Stripping length
8 mm
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section rigid
0.2 mm² ... 4 mm²
Cross section AWG
24 ... 14
Screw thread
M3
Data rate
300 ... 57,6 kBit/s
Connection method
D-SUB-9 female connector
File format/coding
Asynchronous
Data flow control/protocols
RTS/CTS
Data rate
300 ... 57,6 kBit/s
Connection method
COMBICON plug-in screw terminal block
Direction
Bi-directional
Frequency
2.4 GHz
Frequency range
2.4032 GHz ... 2.4799 GHz
Transmission power
400 mW
Antenna connection method
MCX (female)
Frequency band
2.4 GHz 5 GHz
Wireless standard
IEEE 802.11 a b g
Width
45 mm
Height
99 mm
Depth
115 mm
Color
green
Housing material
Polyamide PA non-reinforced
Degree of protection
IP20
Ambient temperature (operation)
-40 °C ... 70 °C
Ambient temperature (storage/transport)
-40 °C ... 70 °C
Conformance
FCC Directive, Part 15.247 ISC Directive RSS 210
UL, USA / Canada
Class I, Div. 2, Groups A, B, C, D
Assembly note
on standard DIN rail NS 35 in accordance with EN 60715
Mounting position
any

Specifications may be subject to change without notice
