Product Model

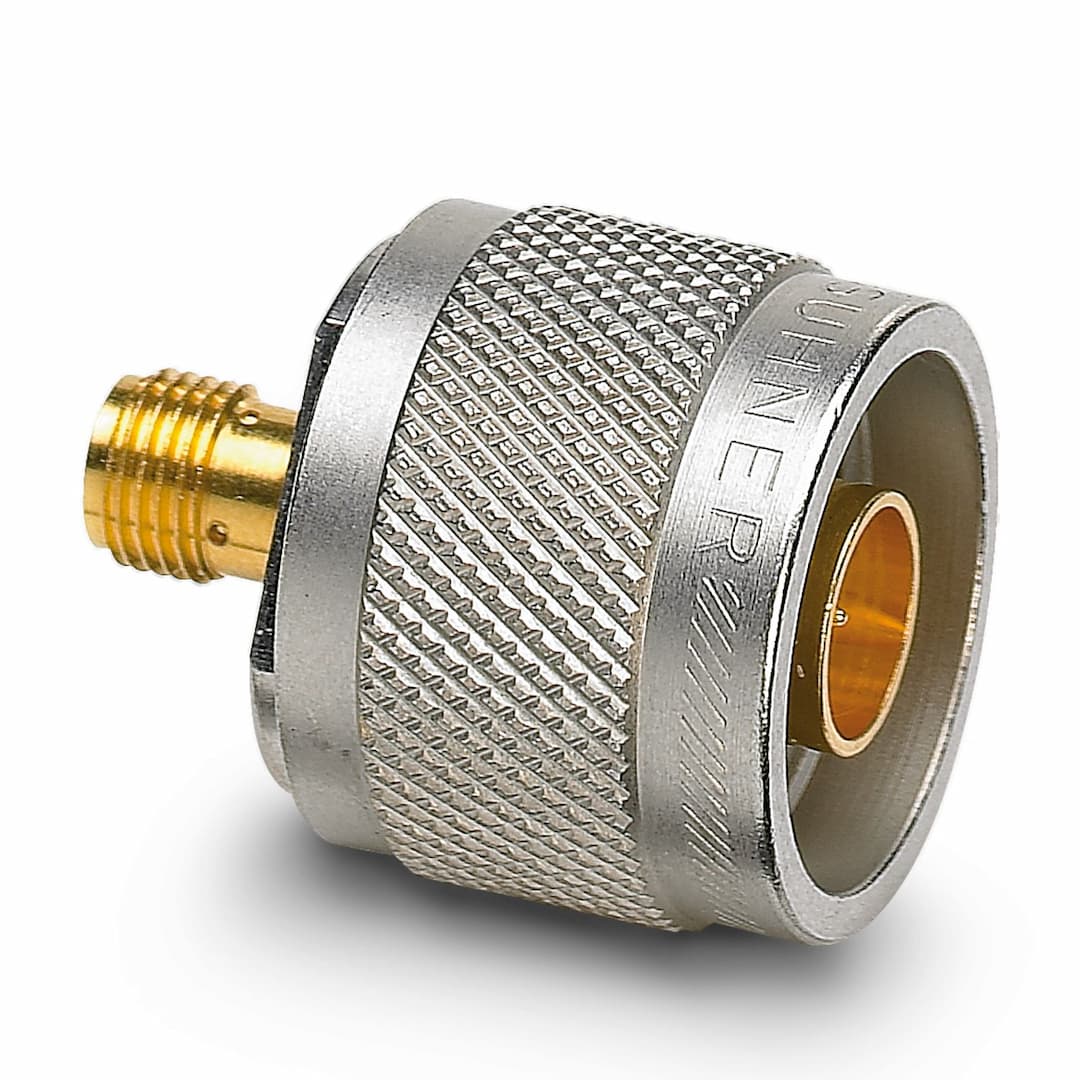

RAD-ADP-N/M-SMA/F
Selling Points
- 1Supports frequencies from 0.3 GHz to 6 GHz.
- 2Made from brass (CuZn) for long-lasting performance.
- 3Converts N (male) to SMA (female) connectors.
- 4Operates in temperatures from -65°C to 165°C.
- 5Meets REACh SVHC and China RoHS regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Coaxial adapter |
Frequency range | 0.3 GHz ... 6 GHz | Impedance | 50 Ω |
Connection method | N (male) -> SMA (female) | Width | 27.5 mm |
Diameter | 20.5 mm | Housing material | Brass (CuZn) |
Degree of protection | IP20 | Ambient temperature (operation) | -65 °C ... 165 °C |
Ambient temperature (storage/transport) | -65 °C ... 165 °C |
Specifications may be subject to change without notice
