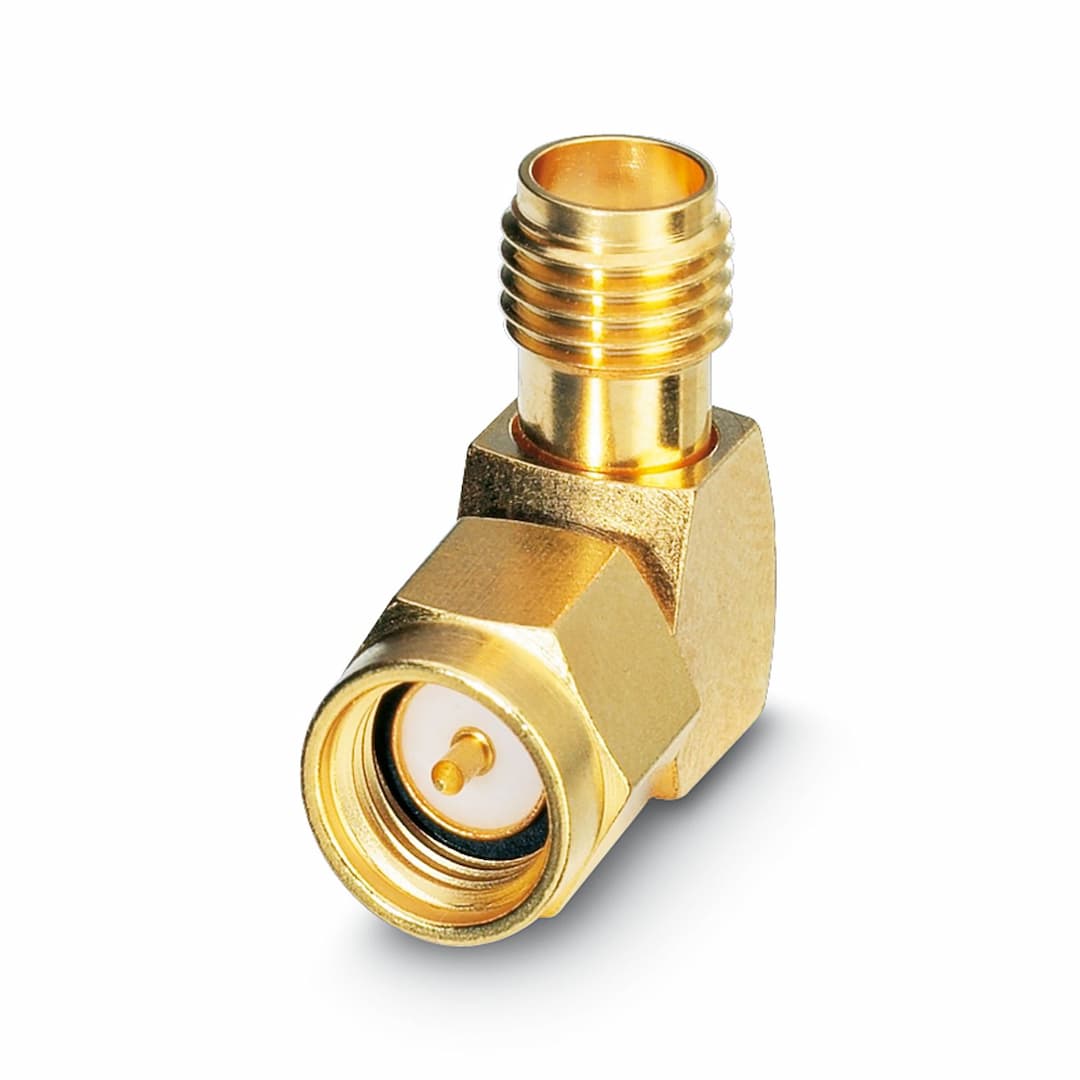

Product Model
RAD-ADP-SMA/F-SMA/M-90
Selling Points
- 1Supports frequencies from 0.3 GHz to 6 GHz.
- 2SMA (female) to SMA (male) with a 90° angle.
- 3Made from brass (CuZn) for robust performance.
- 4Ensures reliable operation in various environments.
- 5Designed for control cabinet feed-through and industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Coaxial adapter | Frequency range | 0.3 GHz ... 6 GHz |
Impedance | 50 Ω | Connection method | SMA (female) -> SMA (male) |
Width | 17.2 mm | Height | 15.2 mm |
Diameter | 8 mm | Housing material | Brass (CuZn) |
Degree of protection | IP20 | Ambient temperature (operation) | -65 °C ... 165 °C |
Ambient temperature (storage/transport) | -65 °C ... 165 °C |
Specifications may be subject to change without notice
