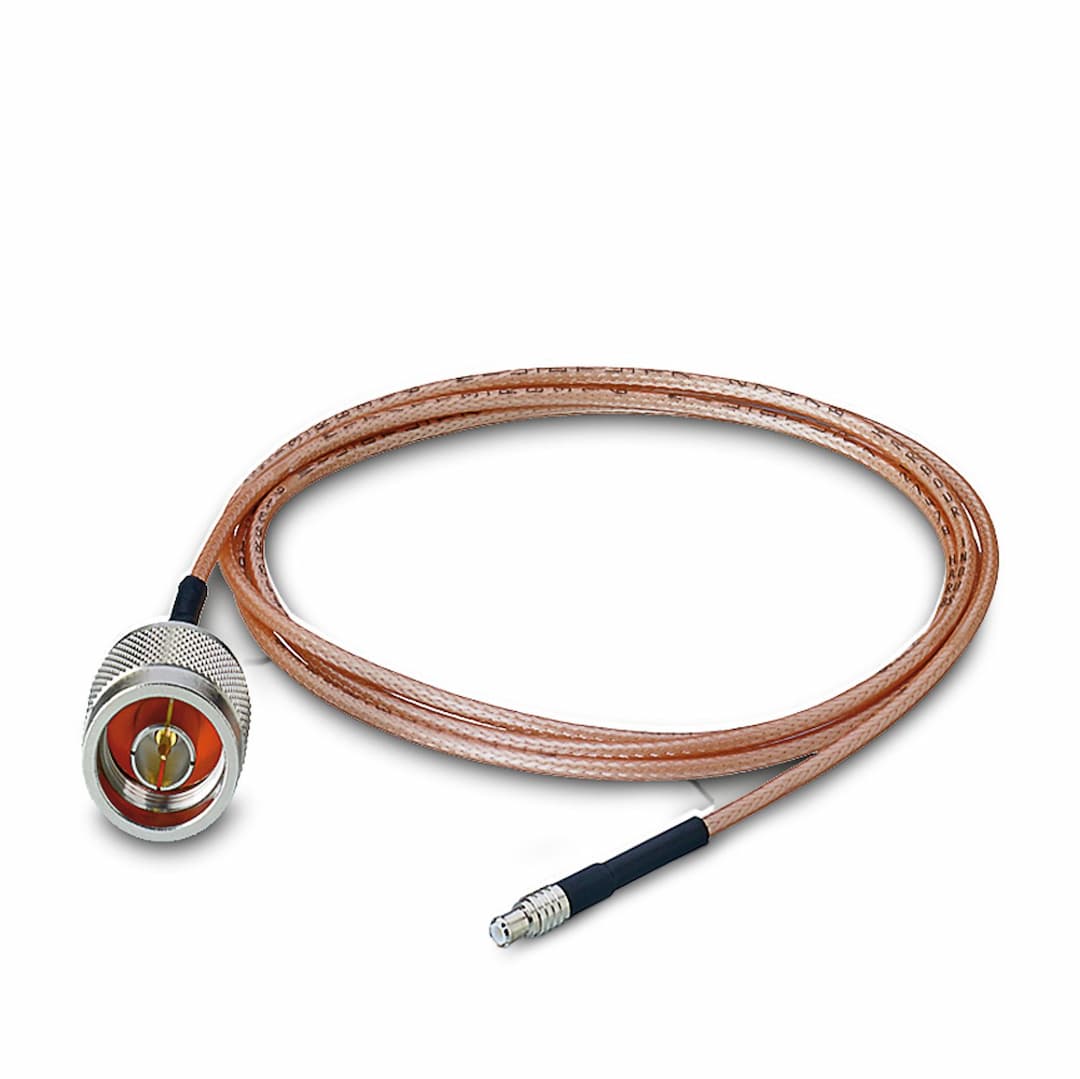

Product Model
RAD-CON-MCX-N-SS
Selling Points
- 1Flexible Inner Conductor for Easy Installation
- 2High-Quality RG 316 Cable with 0.9 dB Attenuation at 900 MHz
- 3MCX to N Connectors Ensure Secure Connections
- 4Suitable for Indoor Use with Operating Temperature Range of -40°C to 75°C
- 5Durable Fluorinated Ethylene Propylene (FEP) Outer Sheath
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Adapter cable | Frequency range | 0.1 GHz ... 1 GHz |
Impedance | 50 Ω | Connection method | MCX (male) |
Connection method | N (male) | Outer sheath, material | Fluorinated ethylene propylene (FEP) |
Cable length | 1.2 m | Cable type | RG 316 |
External cable diameter | 2.50 mm | Outer sheath, material | Fluorinated ethylene propylene (FEP) |
Bending radius, long-term | 25.40 mm | Ambient temperature (operation) | -40 °C ... 75 °C |
Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Specifications may be subject to change without notice
