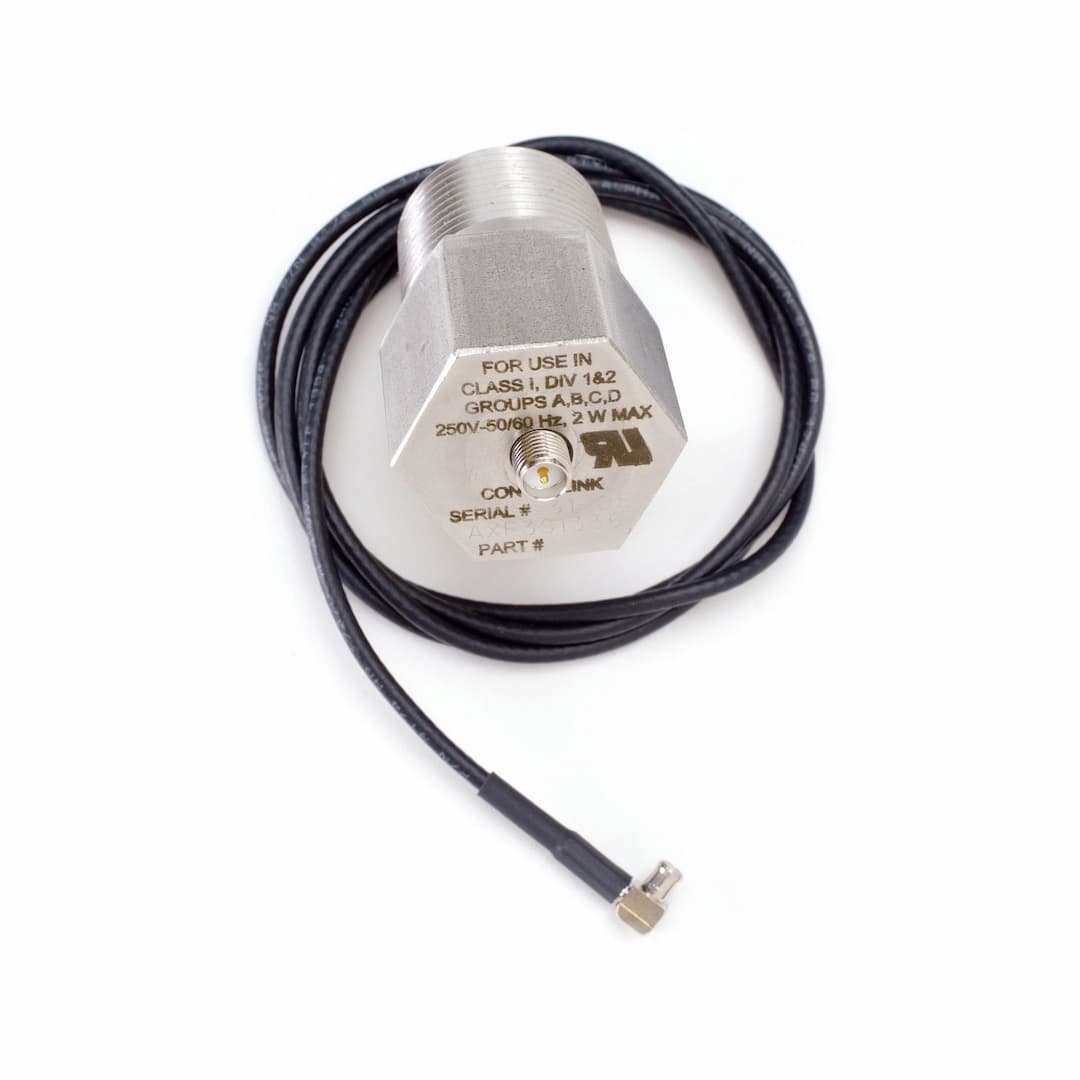

Product Model
RAD-CON-MCX-RPSMA-EX
Selling Points
- 1Explosion-Proof Design: Limits energy to the antenna, eliminating explosion risk in hazardous environments.
- 2Easy Installation: No seal fitting required; can be installed directly with UL or CSA listed explosion-proof housing.
- 3Flameproof and Intrinsically Safe: Ensures safe operation in Class 1, Div. 1 areas with no risk of ignition.
- 4Integrated Cable: Includes three feet of integrated cable with an MCX connector for seamless connection.
- 5Versatile Connectivity: Compatible with any Phoenix Contact wireless product using an RPSMA connector.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Adapter cable | Screw connection | 3/4" NPT |
Frequency range | 0.3 GHz ... 6 GHz | Impedance | 50 Ω |
Maximum error voltage U | 250 V DC | Maximum HF output power P | 2 W |
Maximum capacity | 5.64 nF | Connection method | MCX (male) |
Connection method | RSMA (male) | Outer material connection | Stainless steel |
Cable length | 0.76 m | Degree of protection | IP66 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
UL, USA / Canada | Class I, Div. 1, 2, Groups A, B, C, D |
Specifications may be subject to change without notice
