Product Model

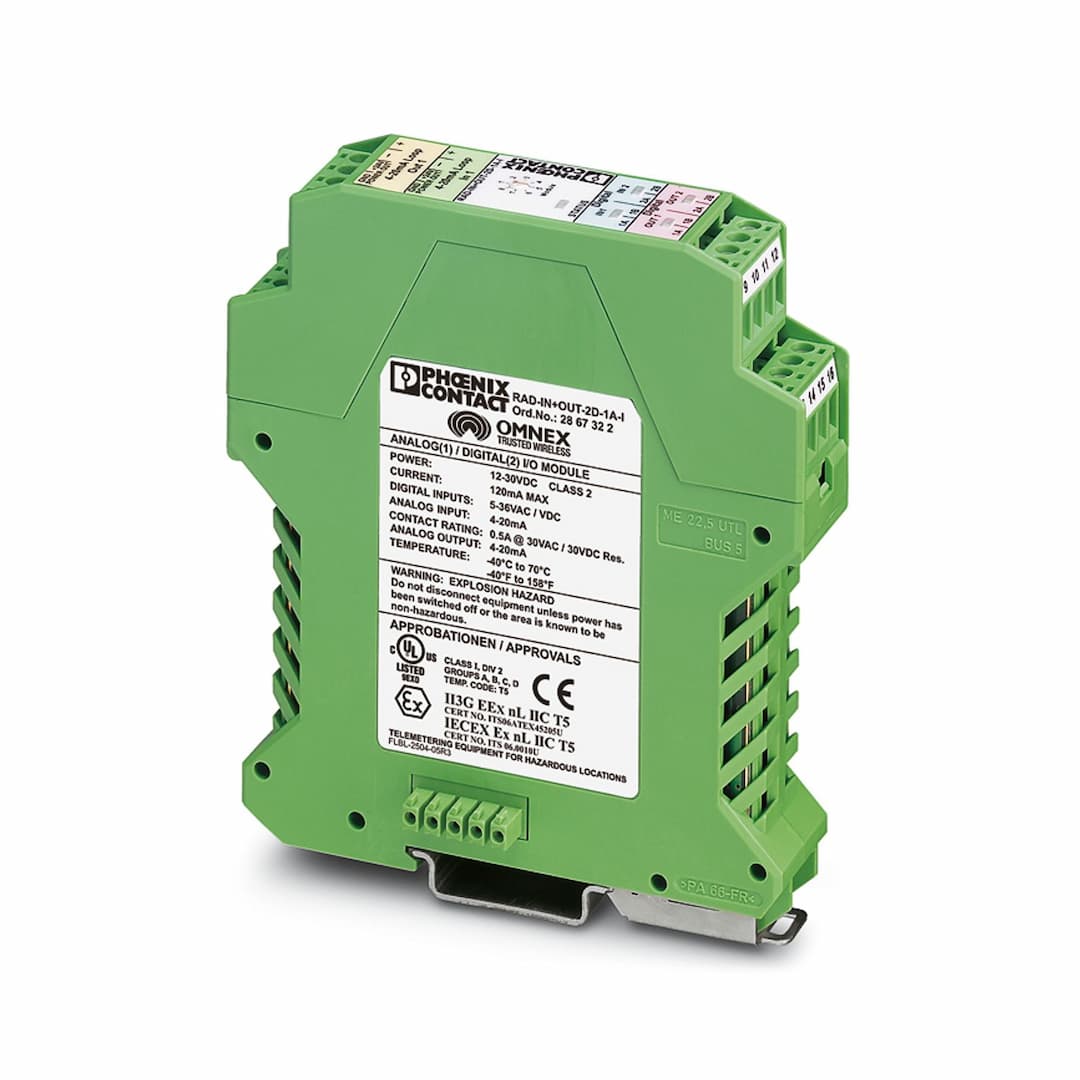

RAD-IN+OUT-2D-1A-I
Selling Points
- 1Versatile I/O Capabilities: Supports 2 digital inputs/outputs and 1 analog input/output for diverse industrial applications.
- 2Robust Technical Specifications: Operates within -20 °C to 65 °C ambient temperature, ensuring reliability in various environments.
- 3High-Current Analog Output: Provides a current output load of 700 Ω at 24 V, suitable for demanding analog applications.
- 4Digital Input/Output Flexibility: Offers input voltage range of 5 V AC/DC to 30 V AC/DC and digital output with 250 V AC rating.
- 5Compliance and Certifications: Meets WEEE/RoHS compliance and holds certifications like CE, ATEX, and UL approvals for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Extension module | Maximum power dissipation for nominal condition | 2.64 W |
Connection method | Screw connection | Supply voltage range | 9 V DC ... 30 V DC (via bus foot) |
Typical current consumption | 70 mA | Max. current consumption | 110 mA |
Input voltage range | 5 V AC/DC ... 30 V AC/DC | Switching threshold "0" signal, voltage | max. 1.5 V DC |
Switching threshold "1" signal voltage | min. 5 V DC | Description of the input | Current input |
Number of inputs | 1 | Current input signal | 4 mA ... 20 mA |
Input resistance current input | < 170 Ω | Input frequency | max. 1 Hz |
Description of the input | Voltage input | Number of inputs | 2 |
Voltage input signal | 5 V AC/DC ... 30 V AC/DC | Output name | Relay output |
Number of outputs | 2 | Maximum switching voltage | 30 V AC/DC (EC Declaration of Conformity)
30 V DC (in acc. with UL)
250 V AC (in acc. with UL) |
Limiting continuous current | 0.5 A (EC Declaration of Conformity)
2 A (in acc. with UL) | Output name | Current output |
Number of outputs | 1 | Current output signal | 4 mA ... 20 mA |
Load | 700 Ω (at U | Resolution | 16 bit |
Connection method | Screw connection | Stripping length | 8 mm |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Cross section AWG | 24 ... 14 | Screw thread | M3 |
Width | 22.5 mm | Height | 99 mm |
Depth | 114.5 mm | Color (Housing) | green (RAL 6021) |
Material (Housing) | Polyamide | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 65 °C
-4 °F ... 149 °F | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Identification | Class I, Div. 2, Groups A, B, C, D |
Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 | Mounting position | any |
Specifications may be subject to change without notice
