Product Model

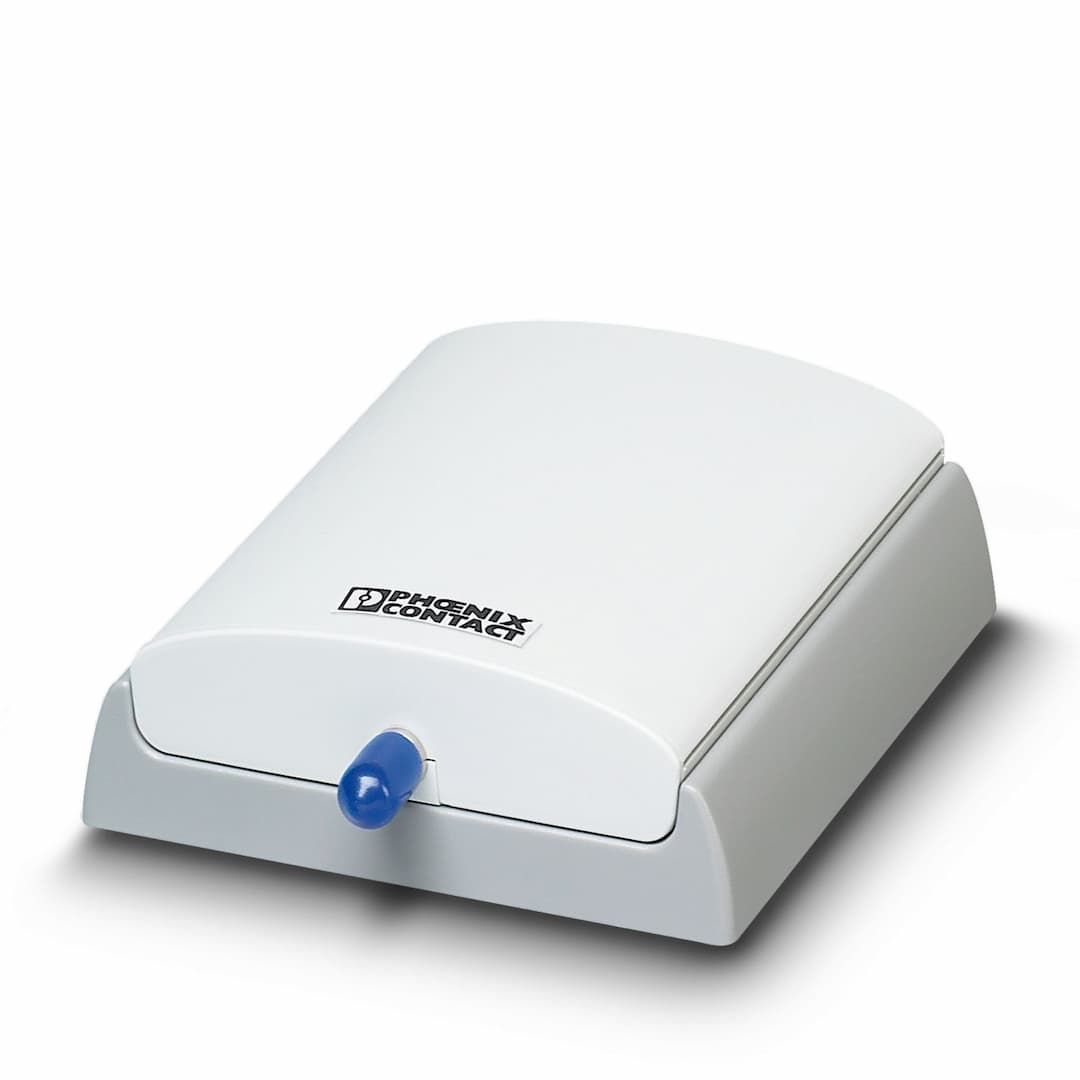

RAD-ISM-2400-ANT-CIR-8-0
Selling Points
- 1Circular Polarization: Prevents polarization loss in highly metallic industrial halls.
- 2High Gain: Achieves higher profits with a gain of 8 dBi.
- 3Wide Beamwidth: Offers horizontal and vertical beamwidths of 70° and 65° respectively.
- 4Durable Design: Meets IP55 standards for protection against dust and water.
- 5Versatile Mounting: Suitable for mast or wall mounting in various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Antenna | Gain | 8 dBi |
Vertical beamwidth | 65 ° | Horizontal beamwidth | 70 ° |
Polarization | RHCP | Frequency band | 2.4 GHz |
Frequency range | 2.4 GHz | Impedance | 50 Ω |
Connection method | SMA (female) | Width | 95 mm |
Height | 101 mm | Length | 32 mm |
Connecting cable | no | Degree of protection | IP55 |
Ambient temperature (operation) | -40 °C ... 80 °C | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Wind velocity | 12.34568 km/h (Has a force of 15 N) | Mounting type | Mast mounting or wall mounting |
Specifications may be subject to change without notice
