Product Model

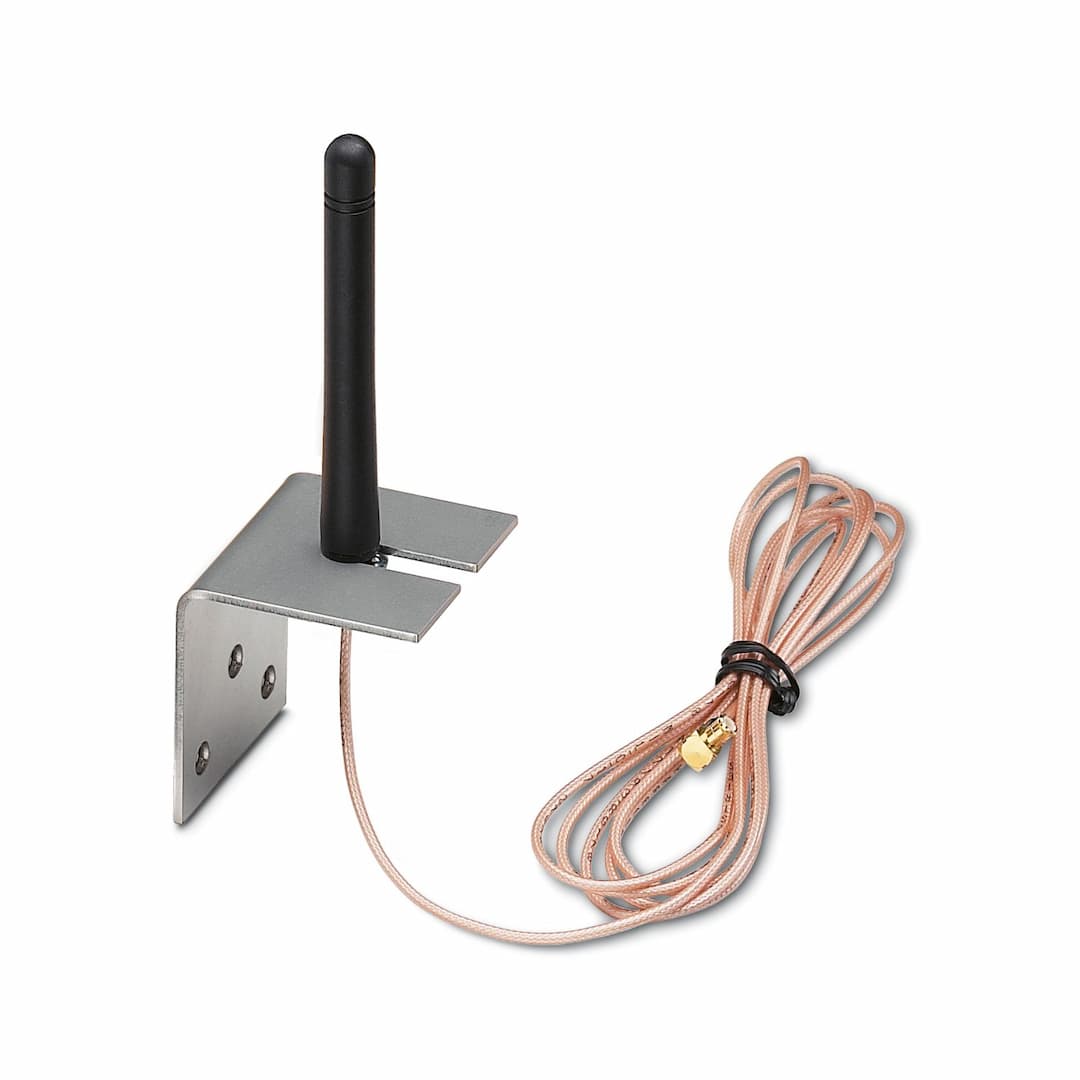

RAD-ISM-2400-ANT-OMNI-2-1
Selling Points
- 1Omnidirectional antenna with a horizontal beamwidth of 360° and vertical beamwidth of 75°.
- 2IP65 degree of protection ensures reliability in harsh environments.
- 3Includes a 1.5 m connecting cable and mounting bracket for wall mounting.
- 4Suitable for mobile and point-to-multipoint applications with a small range.
- 52 dBi gain, linear vertical polarization, 50 Ω impedance, and RSMA (male) connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Antenna | Gain | 2 dBi |
Vertical beamwidth | 75 ° | Horizontal beamwidth | 360 ° |
Polarization | Linear vertical | Frequency band | 2.4 GHz |
Frequency range | 2.4 GHz | Impedance | 50 Ω |
Connection method | MCX (male) | Width | 7.8 mm |
Height | 82.5 mm | Material | Polyurethane
Polycarbonate PC
V2A |
Outer sheath, material | Fluorinated ethylene propylene (FEP) | Cable length | 1.50 m |
Connecting cable | yes | External cable diameter | 2.50 mm |
Outer sheath, material | Fluorinated ethylene propylene (FEP) | Smallest bending radius, fixed installation | 25.4 mm |
Degree of protection | IP65 | Ambient temperature (operation) | -20 °C ... 65 °C |
Ambient temperature (storage/transport) | -30 °C ... 75 °C | Mounting type | Wall mounting |
Specifications may be subject to change without notice
