Product Model
RAD-ISM-2400-ANT-OMNI-6-0
Selling Points
- 1Omnidirectional design with a horizontal beamwidth of 360° and vertical beamwidth of 30°.
- 26 dBi gain for enhanced signal strength and range.
- 3IP55 rating for protection against dust and water, ensuring reliable performance in various environments.
- 4N (female) connector for straightforward connection to devices.
- 5Suitable for mobile applications requiring a longer range, including industrial communication systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | CCCex note | Use in potentially explosive areas is not permitted in China. |

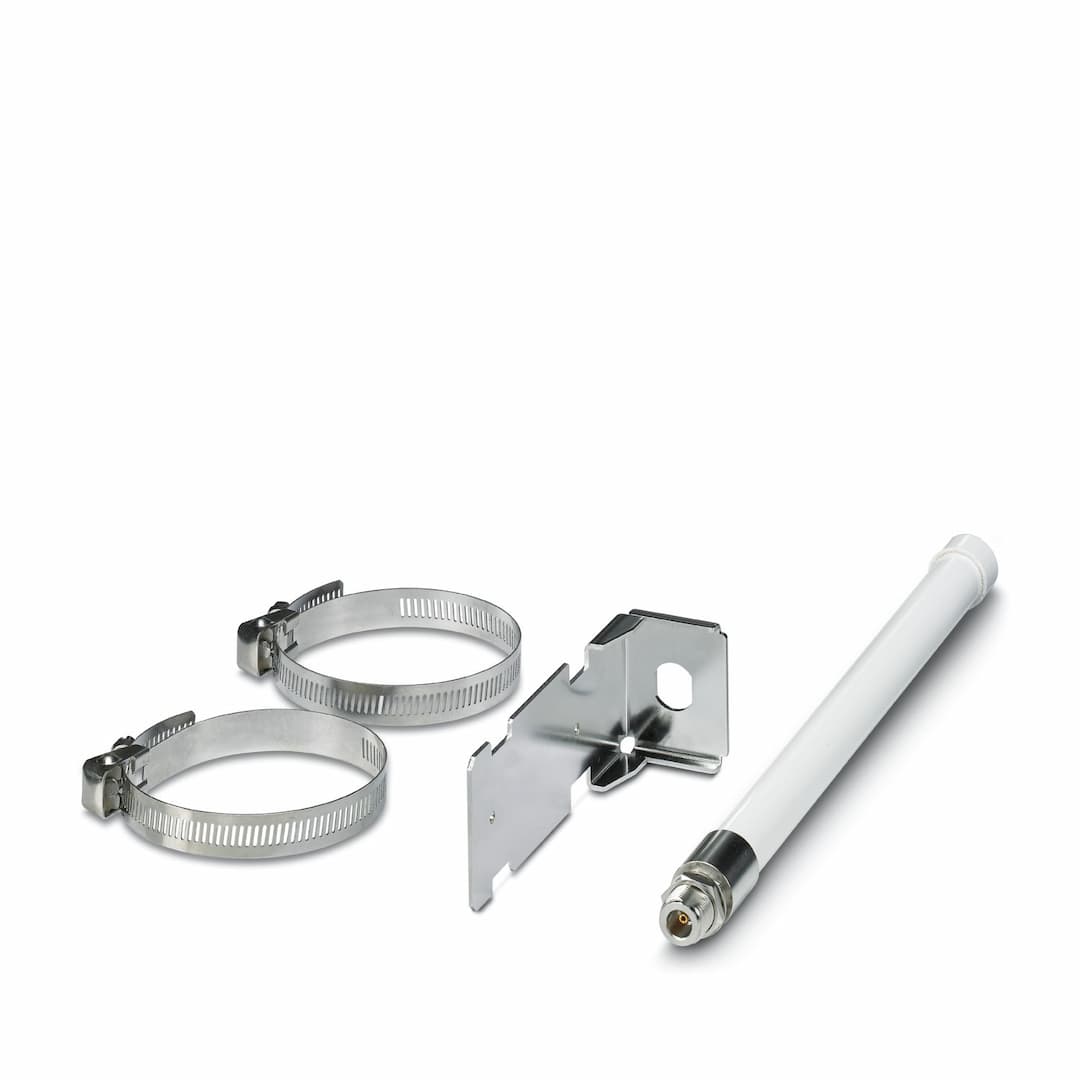

Product type | Antenna | Scope of delivery | included mounting bracket and mast clamps |
Radiation characteristics | Omnidirectional | Gain | 6 dBi |
Vertical beamwidth | 30 ° | Horizontal beamwidth | 360 ° |
Polarization | Linear vertical | Frequency band | 2.4 GHz |
Frequency range | 2.4 GHz ... 2.5 GHz | Impedance | 50 Ω |
Maximum capacity | 25.00 W | Connection method | N (female) |
Outside diameter | 25 mm ... 100 mm (Mast) | Input voltage U | 30 V |
Input current I | 600 mA | Input power P | ≤ 1 W (30 dB) |
Max. internal inductance L | negligible | Capacitance Ci | negligible |
Height | 250 mm | Diameter | 22 mm |
Outside diameter | 25 mm ... 100 mm (Mast) | Material | Fiberglass-reinforced plastic
V2A
V2A |
Flammability rating according to UL 94 | HB | Connecting cable | no |
Other resistance | salt water resistant | Degree of protection | IP67 |
Ambient temperature (operation) | -40 °C ... 75 °C | Ambient temperature (storage/transport) | -40 °C ... 75 °C |
Wind velocity | 220 km/h | Shock (operation) | IEC 60721-3-4, 4M5 |
Vibration (operation) | IEC 60721-3-4, 4M5 Random | Other resistance | salt water resistant |
Standards/specifications | EN 60079-0
EN 60079-11
EN 60079-26 | Mounting type | Wall mounting
Mast mounting |
Assembly note | Outdoors and indoors |
Specifications may be subject to change without notice
