Product Model

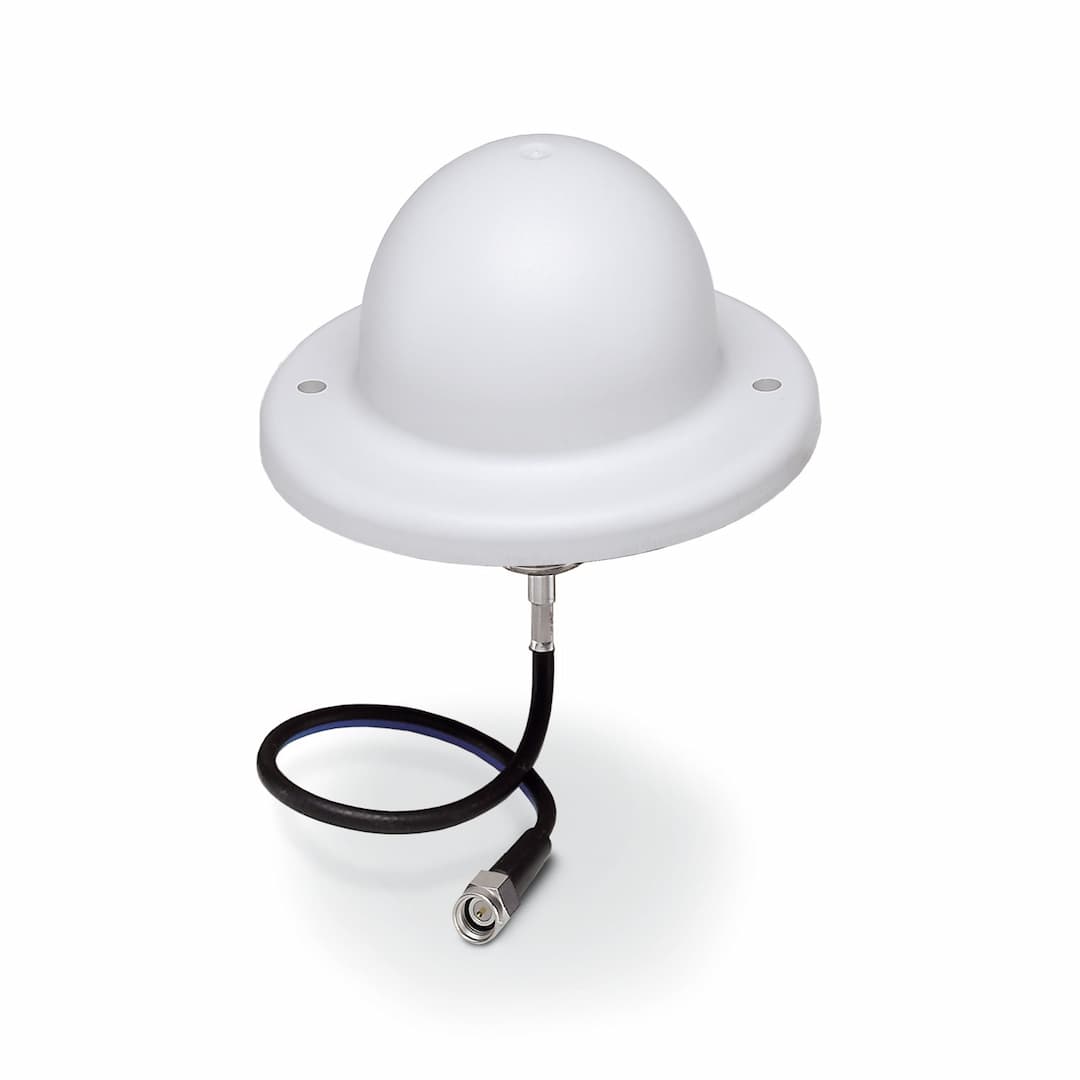

RAD-ISM-2400-ANT-VAN-3-0-RSMA
Selling Points
- 1Impact-resistant housing for durability in various environments.
- 2Omnidirectional coverage with a horizontal beamwidth of 360° and vertical beamwidth of 85°.
- 3Vandal protection with an IP55 rating, ensuring robustness against environmental factors.
- 4Linear vertical polarization for efficient signal transmission.
- 5Optional wall mounting for flexible installation options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Antenna |
Radiation characteristics | Omnidirectional | Gain | 3 dBi |
Vertical beamwidth | 85 ° | Horizontal beamwidth | 360 ° |
Polarization | Linear vertical | Frequency band | 2.4 GHz |
Frequency range | 2.4 GHz ... 2.5 GHz | Impedance | 50 Ω |
Maximum capacity | 75.00 W | Connection method | RSMA (male) |
Height | 43 mm | Diameter | 86 mm |
Material | ASA
Aluminum | Flammability rating according to UL 94 | V0 |
Outer sheath, material | RADOX®(LSFH) | Cable length | 1.50 m |
Connecting cable | yes | External cable diameter | 3.20 mm |
Outer sheath, material | RADOX®(LSFH) | Smallest bending radius, fixed installation | 5 mm |
Degree of protection | IP55 | Ambient temperature (operation) | -40 °C ... 80 °C |
Ambient temperature (storage/transport) | -40 °C ... 80 °C | Wind velocity | 12.34568 km/h (Has a force of 10 N) |
Mounting type | Control cabinet
Wall mounting | Assembly note | Optional wall mounting
Outdoors and indoors |
Specifications may be subject to change without notice
