Product Model

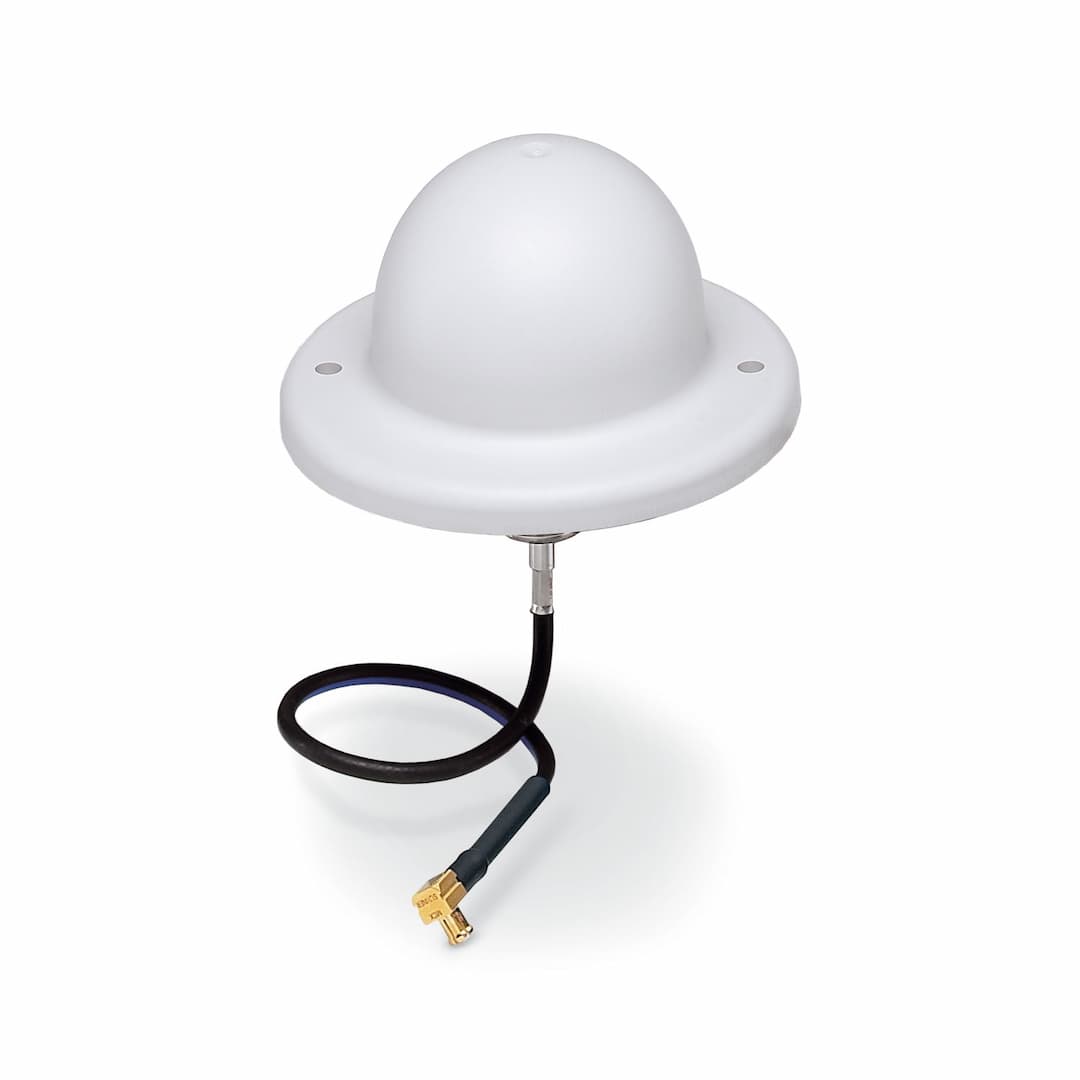

RAD-ISM-2400-ANT-VAN- 3-1-MCX
Selling Points
- 1Vandal-Resistant Design: Built to withstand vandalism with robust construction.
- 2High Gain: 3 dBi gain for enhanced signal strength and range.
- 3IP55 Protection: Rugged and reliable in harsh environments.
- 4Versatile Connectivity: MCX (male) connection for easy integration.
- 5Wide Coverage: 360° horizontal and 85° vertical opening angle for comprehensive coverage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Antenna | Gain | 3 dBi |
Vertical beamwidth | 85 ° | Horizontal beamwidth | 360 ° |
Polarization | Linear vertical | Frequency band | 2.4 GHz |
Frequency range | 2.4 GHz | Impedance | 50 Ω |
Connection method | MCX (male) | Width | 86 mm |
Height | 43 mm | Material | ASA |
Outer sheath, material | RADOX®(LSFH) | Cable length | 1.50 m |
Connecting cable | yes | External cable diameter | 3.20 mm |
Outer sheath, material | RADOX®(LSFH) | Smallest bending radius, fixed installation | 12.5 mm |
Degree of protection | IP55 | Ambient temperature (operation) | -40 °C ... 80 °C |
Ambient temperature (storage/transport) | -40 °C ... 80 °C | Wind velocity | 12.34568 km/h (Has a force of 10 N) |
Mounting type | Control cabinet | Assembly note | Optional wall mounting |
Specifications may be subject to change without notice
