Product Model

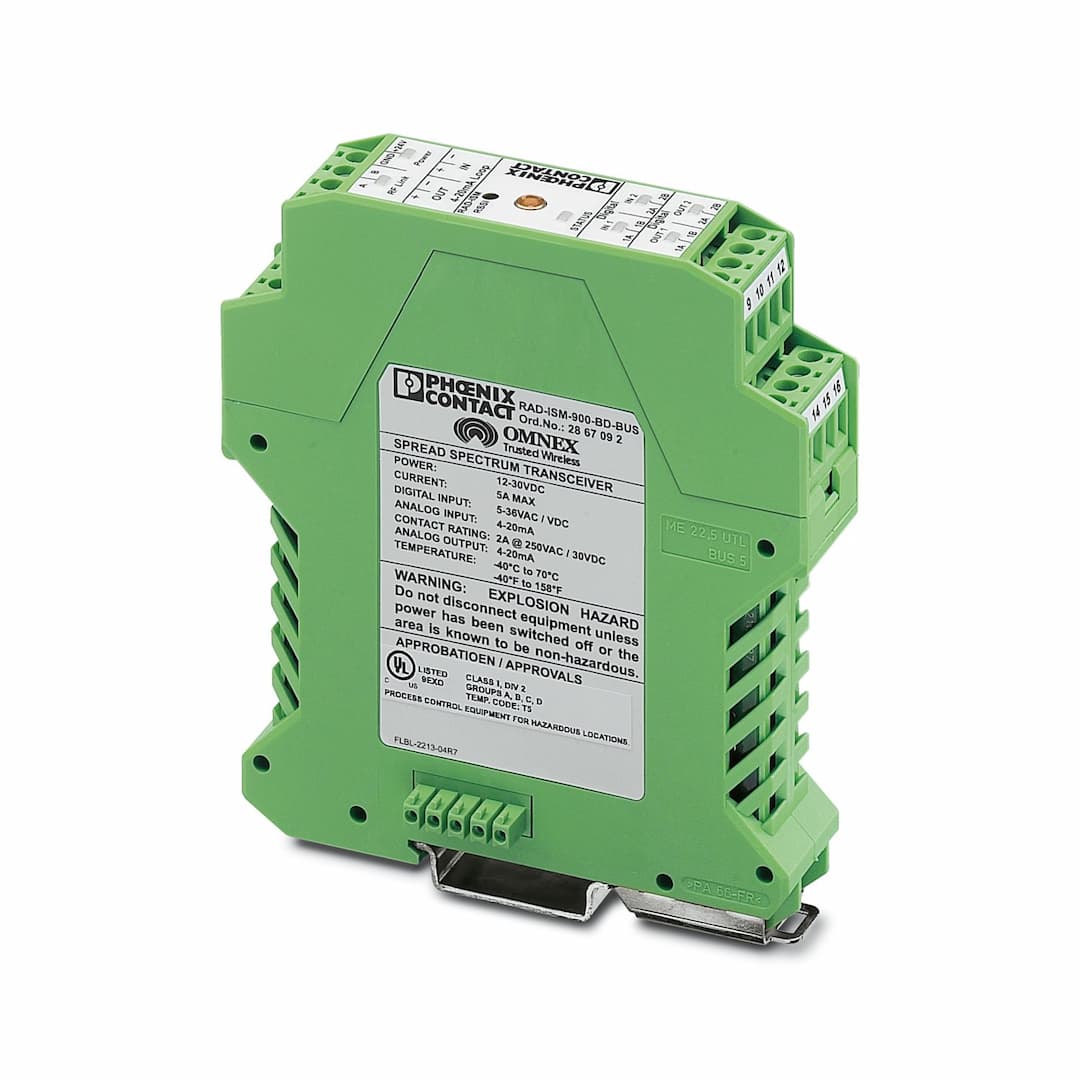

RAD-ISM-2400-BD-BUS
Selling Points
- 1Bidirectional, wireless transmission system for overcoming large obstacles and distances.
- 2Trusted Wireless technology with frequency hopping method for reliable communication.
- 3No parameterization or programming required for easy setup.
- 4Up to eight I/O extension modules can be connected via bus foot.
- 5License-free 2.4 GHz ISM band for cost-effective operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Maximum power dissipation for nominal condition | 3.6 W |
Supply voltage | 24 V DC -50 % / +25 % | Supply voltage range | 12 V DC ... 30 V DC |
Typical current consumption | 75 mA | Max. current consumption | 150 mA |
Switching threshold "0" signal, voltage | max. 1.5 V DC | Switching threshold "1" signal voltage | min. 5 V DC |
Description of the input | Current input (analog input) | Current input signal | 4 mA ... 20 mA |
Input resistance current input | < 170 Ω | Description of the input | Voltage input (digital input) |
Output name | 2x relay output + 1 x RF link | Number of outputs | 3 |
Contact switching type | 3 floating N/O contacts | Contact material | Ag, gold-plated |
Maximum switching voltage | 30 V DC
30 V AC | Limiting continuous current | 0.5 A |
Output name | Current output | Number of outputs | 1 |
Load/output load current output | 700 Ω (at U | Connection method | Screw connection |
Stripping length | 8 mm | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Cross section AWG | 24 ... 14 |
Screw thread | M3 | Direction | Bi-directional |
Frequency range | 2400 MHz ... 2480 MHz | Channel distance | 500 kHz |
Number of channel groups | 7 | Number of channels per group | 22 |
Transmission power | 10 mW | Frequency band | 2.4 GHz |
Width | 22.5 mm | Height | 99 mm |
Depth | 114.5 mm | Color (Housing) | green (RAL 6021) |
Material (Housing) | Polyamide | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 65 °C
-4 °F ... 149 °F | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Identification | II 3 G EEx nL IIC |
Note | Please follow the special installation instructions in the documentation! | Identification | Ex nL IIC T4 |
Electromagnetic compatibility | Conformance with R&TTE directive 1999/5/EC | Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 |
Mounting position | any |
Specifications may be subject to change without notice
