Product Model

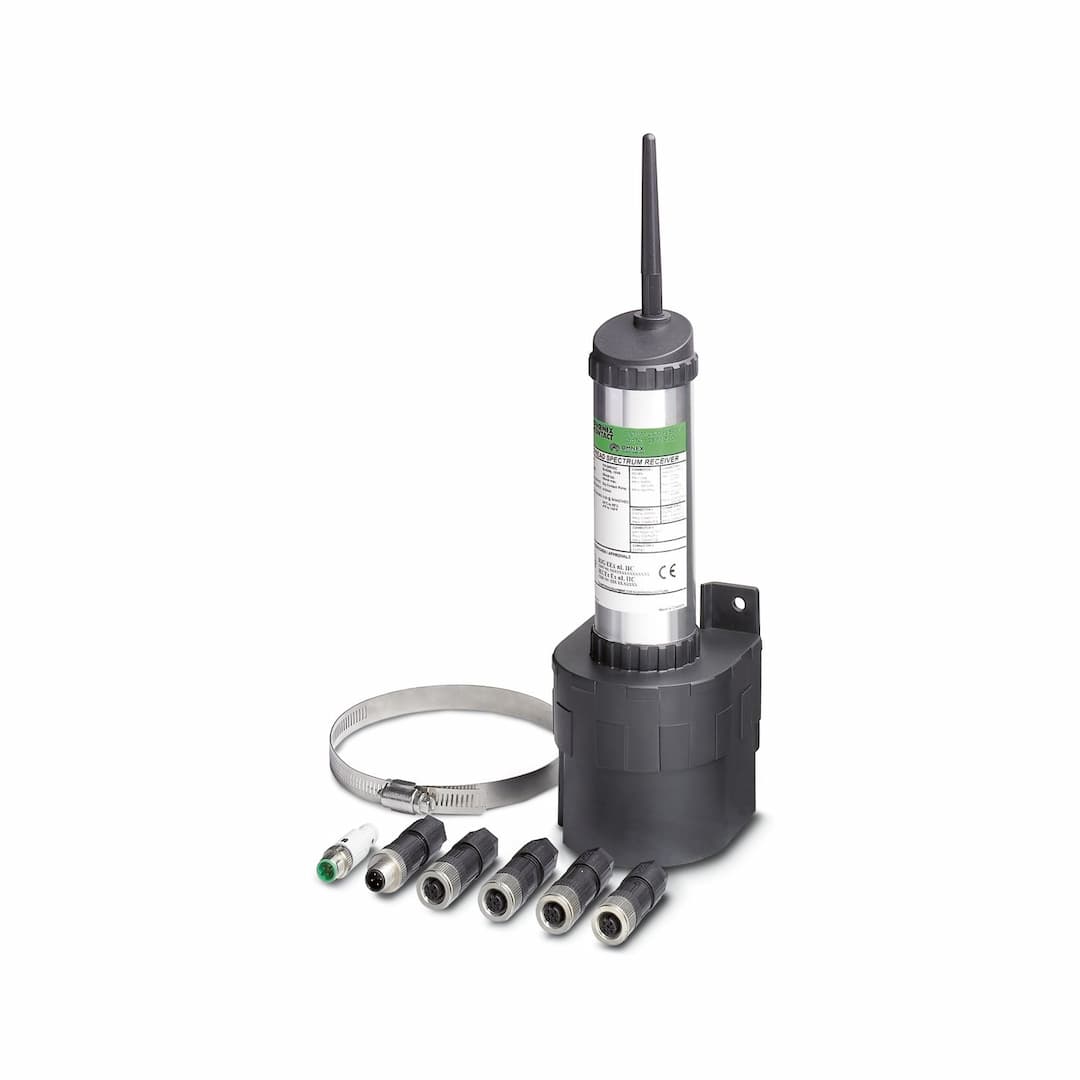

RAD-ISM-2400-PIPE-RX-HV
Selling Points
- 1Utilizes frequency hopping method for reliable communication.
- 2Easy to set up with no complex configuration needed.
- 3Operates in the unlicensed 2.4 GHz frequency band.
- 4Compatible with 85-250 V AC supply, ensuring versatility in applications.
- 5Meets IP65 standards for dust and water resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Supply voltage | 230 V AC (at U |
Supply voltage range | 85 V AC ... 250 V AC | Output name | 2x relay output + 1 x RF link |
Contact switching type | 3 floating changeover contacts | Contact material | Ag, gold-plated |
Maximum switching voltage | 250 V AC/DC | Limiting continuous current | 0.5 A |
Service life electrical | 8x 10 | Mechanical service life | 1x 10 |
Output name | Current output | Current output signal | 4 mA ... 20 mA |
Load/output load current output | 700 Ω (at U | Connection method | Spring-cage connection (M12) |
Conductor cross section flexible min. | 0.14 mm² | Conductor cross section flexible max. | 0.5 mm² |
Conductor cross section AWG min. | 20 | Conductor cross section AWG max. | 26 |
Direction | Uni-directional | Channel distance | 100 kHz |
Number of channel groups | 9 | Number of channels per group | 63 |
Frequency band | 2.4 GHz | Width | 92 mm |
Height | 98 mm | Depth | 340 mm |
Material (Housing) | Aluminum
PBT | Degree of protection | IP65 |
Degree of protection | IP65 | Ambient temperature (operation) | -20 °C ... 65 °C
-4 °F ... 149 °F |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Identification | II 3 G Ex nL IIC T4 | Note | Please follow the special installation instructions in the documentation! |
Identification | Ex nL IIC T4 | Electromagnetic compatibility | Conformance with R&TTE directive 1999/5/EC |
Specifications may be subject to change without notice
