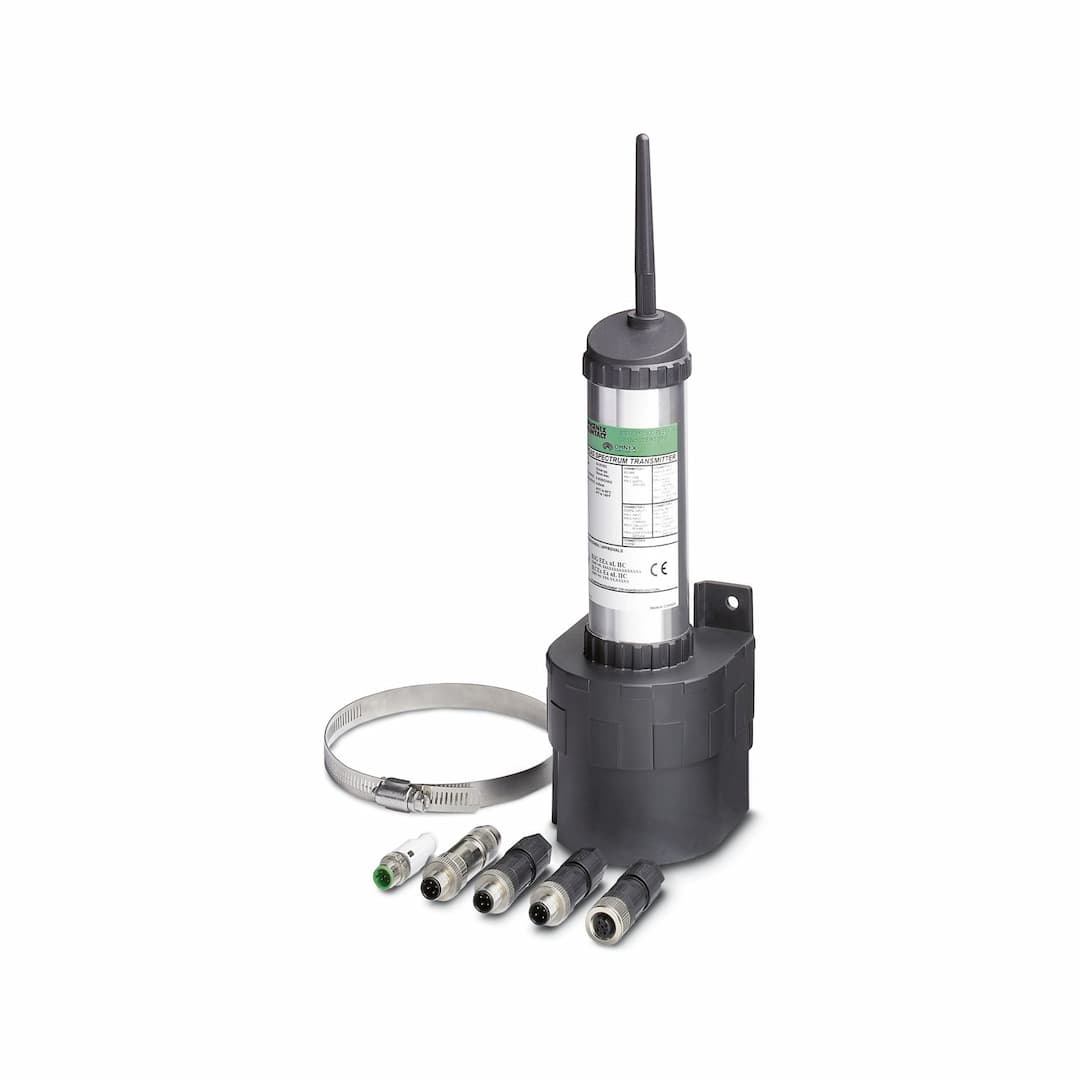

Product Model
RAD-ISM-2400-PIPE-TX-HV
Selling Points
- 1Trusted Wireless technology with frequency hopping method.
- 2License-free 2.4 GHz ISM band operation.
- 3No parameterization or programming required.
- 4Outdoor transmitter for unidirectional, wireless 2400 MHz transmission systems.
- 5Compatible with 85-250 V AC supply for versatile operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Supply voltage | 230 V AC | Supply voltage range | 85 V AC ... 250 V AC |
Input voltage range | 5 V AC/DC ... 30 V AC/DC | Switching threshold "0" signal, voltage | max. 1.5 V DC |
Switching threshold "1" signal voltage | min. 5 V DC | Description of the input | Current input (analog input) |
Current input signal | 4 mA ... 20 mA | Input resistance current input | < 170 Ω |
Description of the input | Voltage input (digital input) | Connection method | Spring-cage connection (M12) |
Conductor cross section flexible min. | 0.14 mm² | Conductor cross section flexible max. | 0.5 mm² |
Conductor cross section AWG min. | 20 | Conductor cross section AWG max. | 26 |
Direction | Uni-directional | Frequency range | 2.4032 GHz ... 2.4799 GHz |
Channel distance | 100 kHz | Number of channel groups | 9 |
Number of channels per group | 63 | Transmission power | 10 mW |
Width | 92 mm | Height | 98 mm |
Depth | 340 mm | Material (Housing) | Aluminum
PBT |
Degree of protection | IP65 | Ambient temperature (operation) | -20 °C ... 65 °C
-4 °F ... 149 °F |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Identification | II 3 G Ex nL IIC T4 | Note | Please follow the special installation instructions in the documentation! |
Identification | Ex nL IIC T4 | Electromagnetic compatibility | Conformance with R&TTE directive 1999/5/EC |
Specifications may be subject to change without notice
