Product Model

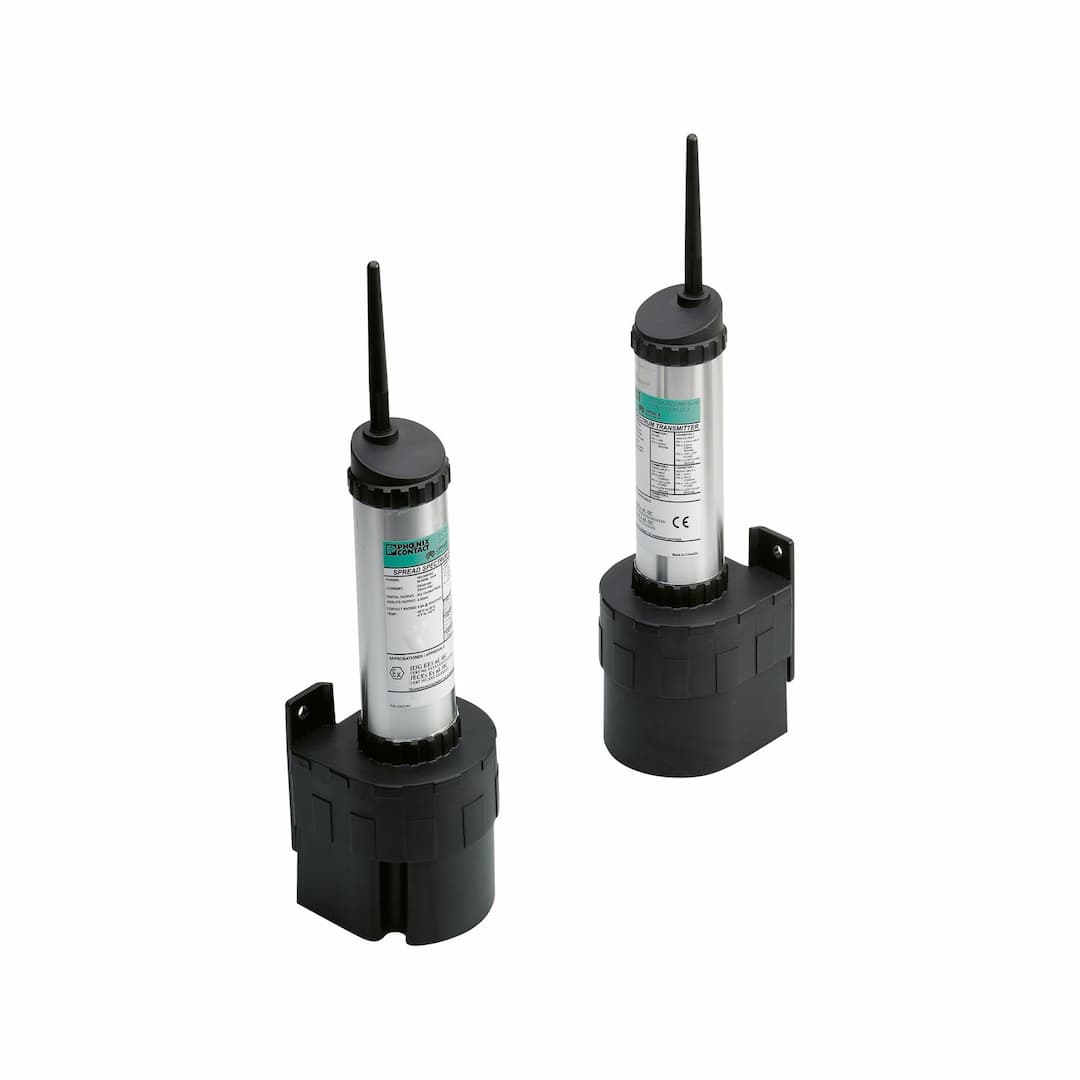

RAD-ISM-2400-PIPE-TX-ME-RX-UD
Selling Points
- 1Wide Frequency Range: Operates between 2.4032 GHz and 2.4799 GHz for versatile use.
- 2High Channel Density: Offers 9 channel groups with 63 channels per group for precise communication.
- 3Low Power Consumption: Consumes only 18 mA (typical) and 35 mA (maximum) at 24 V DC.
- 4Durable Design: Built to withstand temperatures from -20°C to +65°C (-4°F to +149°F).
- 5Easy Installation: Mounts on TS 35 DIN rail according to EN 60 715 for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Supply voltage | 24 V DC -50 % / +25 % (at U |
Supply voltage range | 12 V DC ... 30 V DC | Typical current consumption | 54 mA |
Max. current consumption | 120 mA | Supply voltage | 24 V DC -75 % / +25 %
230 V AC |
Supply voltage range | 12 V DC ... 30 V DC
85 V AC ... 250 V AC | Typical current consumption | 50 mA |
Max. current consumption | 65 mA (at 24 V DC) | Input voltage range | 5 V AC/DC ... 30 V AC/DC |
Switching threshold "0" signal, voltage | max. 1.5 V DC | Switching threshold "1" signal voltage | min. 5 V DC |
Description of the input | Current input (analog input) | Current input signal | 4 mA ... 20 mA |
Input resistance current input | < 170 Ω | Description of the input | Voltage input (digital input) |
Output name | 2x relay output + 1 x RF link | Contact switching type | 3 floating changeover contacts |
Contact material | Ag, gold-plated | Maximum switching voltage | 30 V AC/DC |
Limiting continuous current | 0.5 A | Service life electrical | 8x 10 |
Mechanical service life | 1x 10 | Output name | Current output |
Current output signal | 4 mA ... 20 mA | Load/output load current output | 700 Ω (at U |
Connection method | Screw connection | Stripping length | 8 mm |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Cross section AWG | 24 ... 14 | Screw thread | M3 |
Connection method | Spring-cage connection (M12) | Conductor cross section flexible min. | 0.14 mm² |
Conductor cross section flexible max. | 0.5 mm² | Conductor cross section AWG min. | 20 |
Conductor cross section AWG max. | 26 | Direction | Uni-directional |
Direction | Uni-directional | Frequency range | 2.4032 GHz ... 2.4799 GHz |
Channel distance | 100 kHz | Number of channel groups | 9 |
Number of channels per group | 63 | Transmission power | 10 mW |
Frequency band | 2.4 GHz | Width | 92 mm |
Height | 98 mm | Depth | 340 mm |
Material (Housing) | Polyamide
Aluminum
PBT | Degree of protection | IP65
IP20 |
Degree of protection | IP65 | Ambient temperature (operation) | -20 °C ... 65 °C
-4 °F ... 149 °F
-20 °C ... 65 °C
-4 °F ... 149 °F |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Identification | II 3 G Ex nL IIC T4 | Note | Please follow the special installation instructions in the documentation! |
Identification | Ex nL IIC T4 | Electromagnetic compatibility | Conformance with R&TTE directive 1999/5/EC |
Specifications may be subject to change without notice
