Product Model

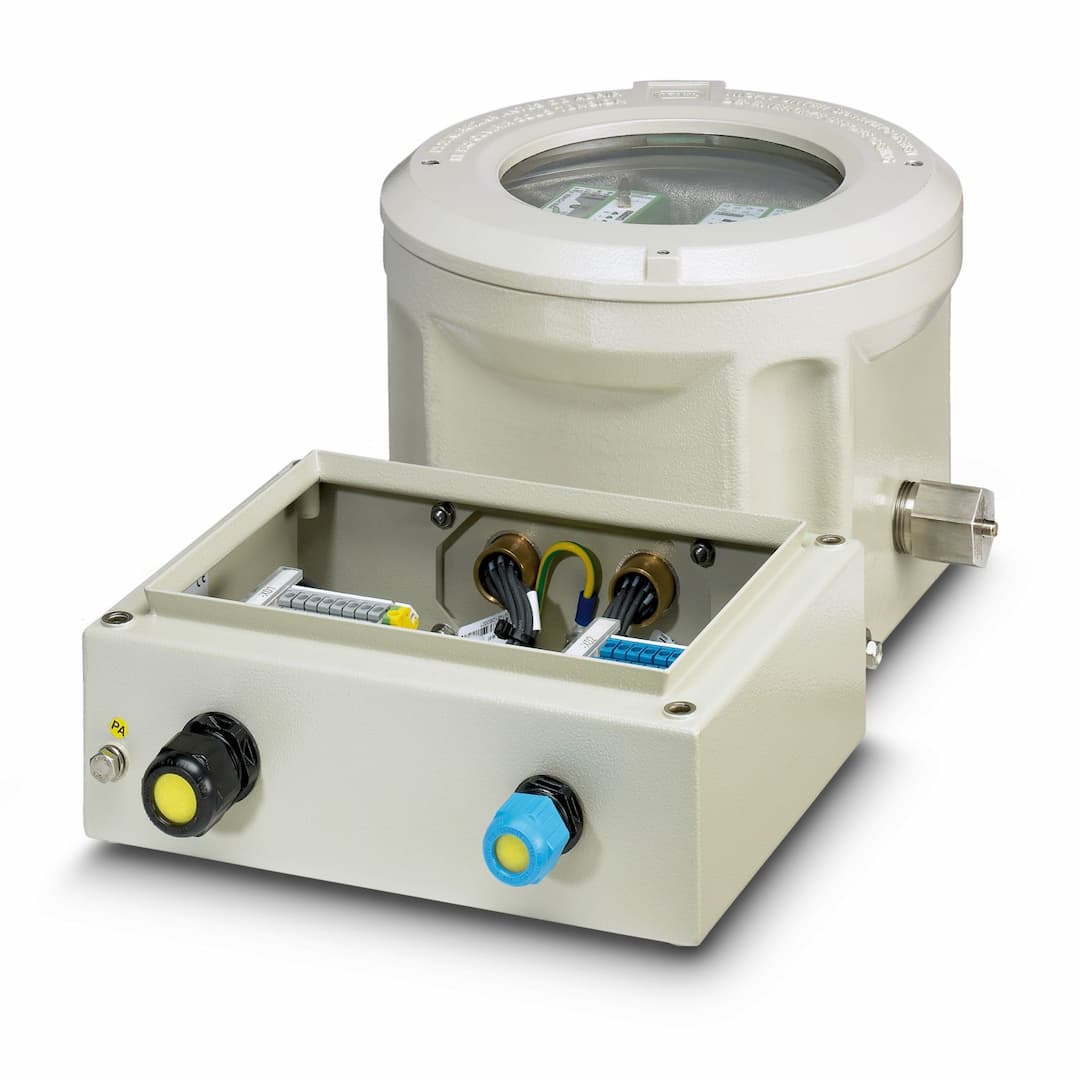

RAD-ISM-2400-SET-UD-RPS-EX
Selling Points
- 1Detects two digital signals and one analog current signal in the range of 5-30 V AC/DC.
- 2Offers 16-bit resolution and ±0.025% tolerance at 25°C for precise signal detection.
- 3Establishes automatic radio connections with both RF LEDs ON when operating voltage UB is applied.
- 4Provides two relay Form C contacts and one 4-20 mA current output for further processing.
- 5Meets II3G EEx nL IIC T4 certification for use in hazardous locations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Supply voltage | 24 V DC -50 % / +25 % (at U |
Supply voltage range | 12 V DC ... 30 V DC | Typical current consumption | 54 mA |
Max. current consumption | 120 mA | Supply voltage | 230 V AC |
Supply voltage range | 100 V AC ... 240 V AC | Typical current consumption | at 230 V AC |
Max. current consumption | at 230 V AC | Description of the input | Current input, intrinsically safe |
Current input signal | 4 mA ... 20 mA | Output name | Current output |
Current output signal | 4 mA ... 20 mA | Load/output load current output | 700 Ω (at U |
Connection method | Screw connection | Stripping length | 8 mm |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Cross section AWG | 24 ... 14 | Screw thread | M3 |
Connection method | Screw connection | Stripping length | 8 mm |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 4 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Direction | Uni-directional | Direction | Uni-directional |
Frequency range | 2.4032 GHz ... 2.4799 GHz | Channel distance | 100 kHz |
Number of channel groups | 9 | Number of channels per group | 63 |
Transmission power | 10 mW | Frequency band | 2.4 GHz |
Width | 236.5 mm | Height | 172 mm |
Depth | 371.5 mm | Material (Housing) | Aluminum
Polyamide |
Degree of protection | IP66
IP20 | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 50 °C
-4 °F ... 122 °F
-20 °C ... 65 °C
-13 °F ... 176 °F | Ambient temperature (storage/transport) | -25 °C ... 80 °C |
Certificate | CE-compliant | Identification | II 2 (1) G Ex de ib [ia] IIC T4 |
Note | Please follow the special installation instructions in the documentation! | Electromagnetic compatibility | Conformance with R&TTE directive 1999/5/EC |
Specifications may be subject to change without notice
