Product Model

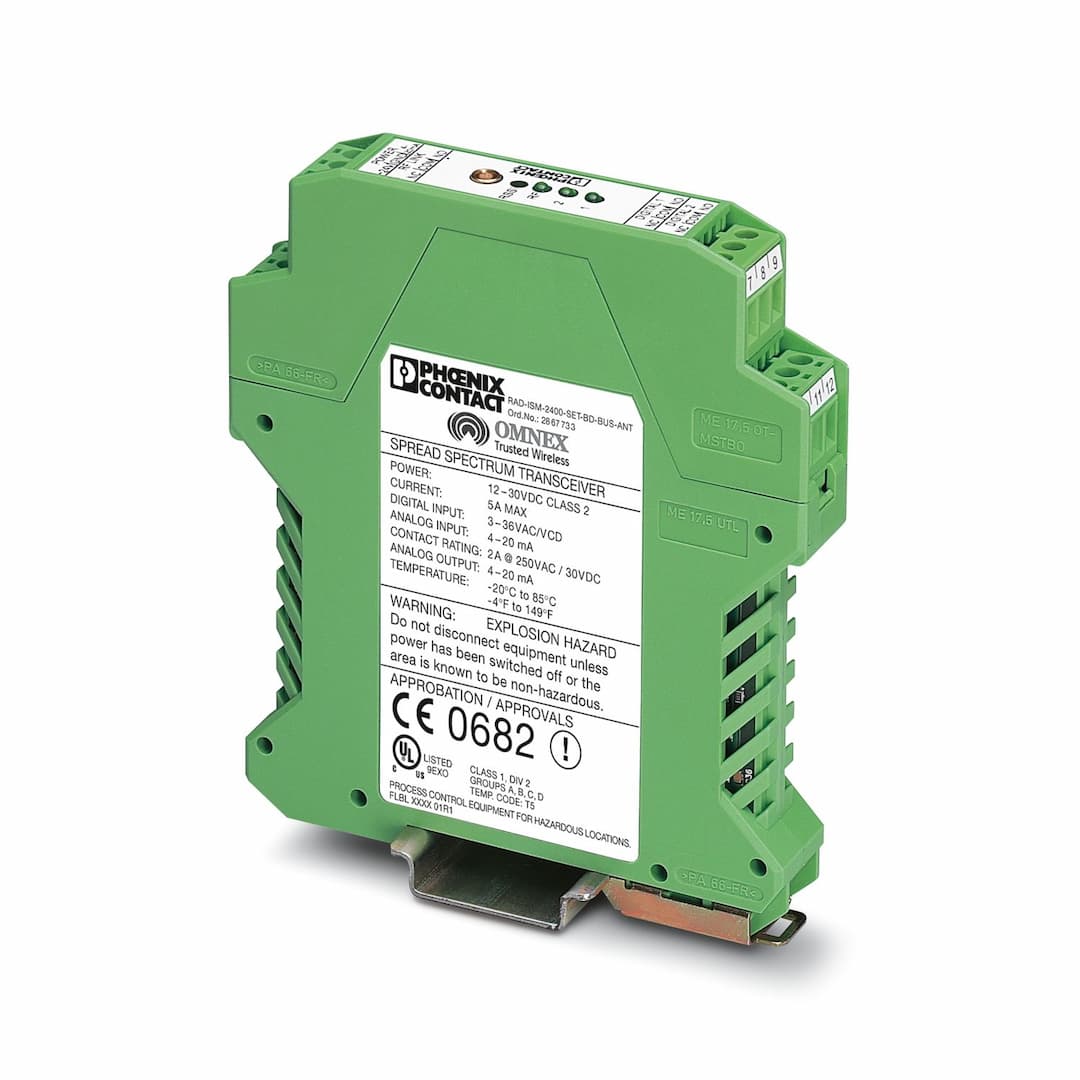

RAD-ISM-2400-TX
Selling Points
- 1Detects two digital signals (5-30 V AC/DC) and one analog current signal (4-20 mA).
- 2Connects automatically when operating voltage is applied, ensuring seamless data transmission.
- 3Operates in a wide temperature range (-20°C to +65°C), making it suitable for harsh industrial environments.
- 4Transmits data every 27 ms, ensuring real-time monitoring and control.
- 5Constructed with polyamide housing, providing IP20 protection and mounting on TS 35 DIN rail according to EN 60715.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Supply voltage | 24 V DC -50 % / +25 % (at U |
Supply voltage range | 12 V DC ... 30 V DC | Typical current consumption | 18 mA |
Max. current consumption | 35 mA | Supply voltage | 24 V DC -50 % / +25 % |
Supply voltage range | 12 V DC ... 30 V DC | Typical current consumption | 35 mA |
Max. current consumption | 45 mA | Switching threshold "0" signal, voltage | max. 1.5 V DC |
Switching threshold "1" signal voltage | min. 5 V DC | Description of the input | Current input (analog input) |
Current input signal | 4 mA ... 20 mA | Input resistance current input | < 170 Ω |
Description of the input | Voltage input (digital input) | Connection method | Screw connection |
Stripping length | 8 mm | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Cross section AWG | 24 ... 14 |
Screw thread | M3 | Direction | Uni-directional |
Frequency range | 2.4032 GHz ... 2.4799 GHz | Channel distance | 100 kHz |
Number of channel groups | 9 | Number of channels per group | 63 |
Transmission power | 10 mW | Frequency band | 2.4 GHz |
Width | 17.5 mm | Height | 99 mm |
Depth | 114.5 mm | Color (Housing) | green (RAL 6021) |
Material (Housing) | Polyamide | Degree of protection | IP20 |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 65 °C
-4 °F ... 149 °F |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Identification | II 3 G EEx nL IIC | Note | Please follow the special installation instructions in the documentation! |
Identification | Ex nL IIC T4 | Electromagnetic compatibility | Conformance with R&TTE directive 1999/5/EC |
Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 | Mounting position | any |
Specifications may be subject to change without notice
