Product Model

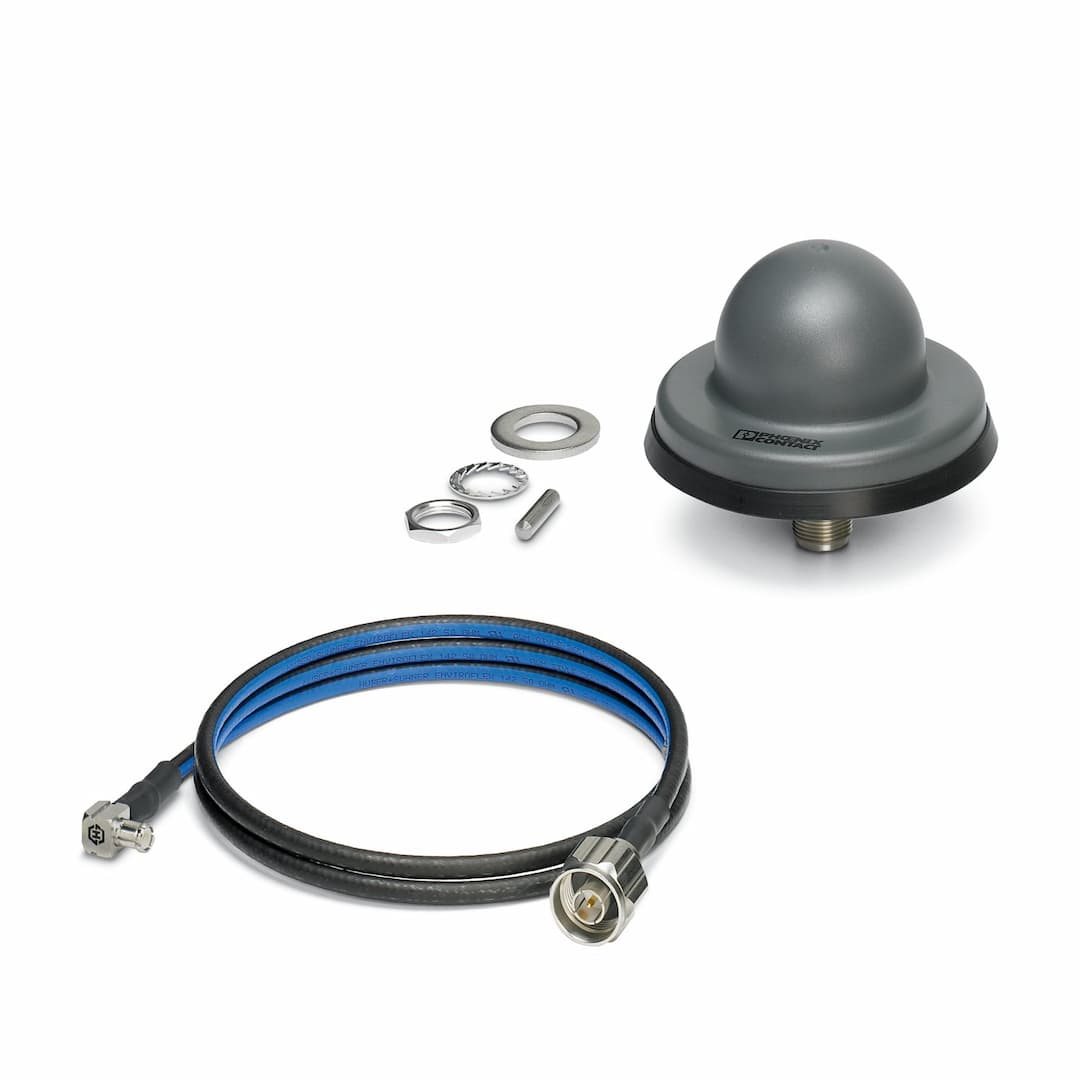

RAD-ISM-2459-ANT-FOOD-6-0-MCX
Selling Points
- 1Rugged Design: Built with vandal-resistant materials for durability in harsh environments.
- 2High Gain: Provides up to 6 dBi gain at 2.4 GHz and up to 8 dBi gain at 5 GHz.
- 3IP68 Protection: Ensures reliable operation in extreme conditions with IP68 rating.
- 4Versatile Connectivity: Features N (f) to MCX (m) adapter cable for flexible installation.
- 5Wide Temperature Range: Operates effectively from -40°C to +80°C, making it suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Antenna | Gain | 6 dBi (2.4 GHz, when mounted on metal surface)
3 dBi (2.4 GHz, no metal surface)
8 dBi (5.6 GHz, when mounted on metal surface)
5 dBi (5.6 GHz, no metal surface) |
Horizontal beamwidth | 360 ° | Frequency band | 2.4 GHz
5 GHz |
Frequency range | 2.4 GHz
5.15 GHz ... 5.83 GHz | Impedance | 50 Ω |
Connection method | N (female) | Height | 51 mm |
Diameter | 92 mm | Housing material | Aluminum, HRA 150 |
Outer sheath, material | RADOX®(LSFH) | Cable length | 1.00 m |
Connecting cable | yes | Cable type | EF 316 |
External cable diameter | 2.50 mm | Outer sheath, material | RADOX®(LSFH) |
Bending radius, long-term | 12.50 mm | Degree of protection | IP68 |
Ambient temperature (operation) | -40 °C ... 80 °C | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Wind velocity | 12.34568 km/h (Has a force of 10 N) | Mounting type | Control cabinet |
Assembly note | Protection class: IP68, only when mounted on a level surface |
Specifications may be subject to change without notice
