Product Model

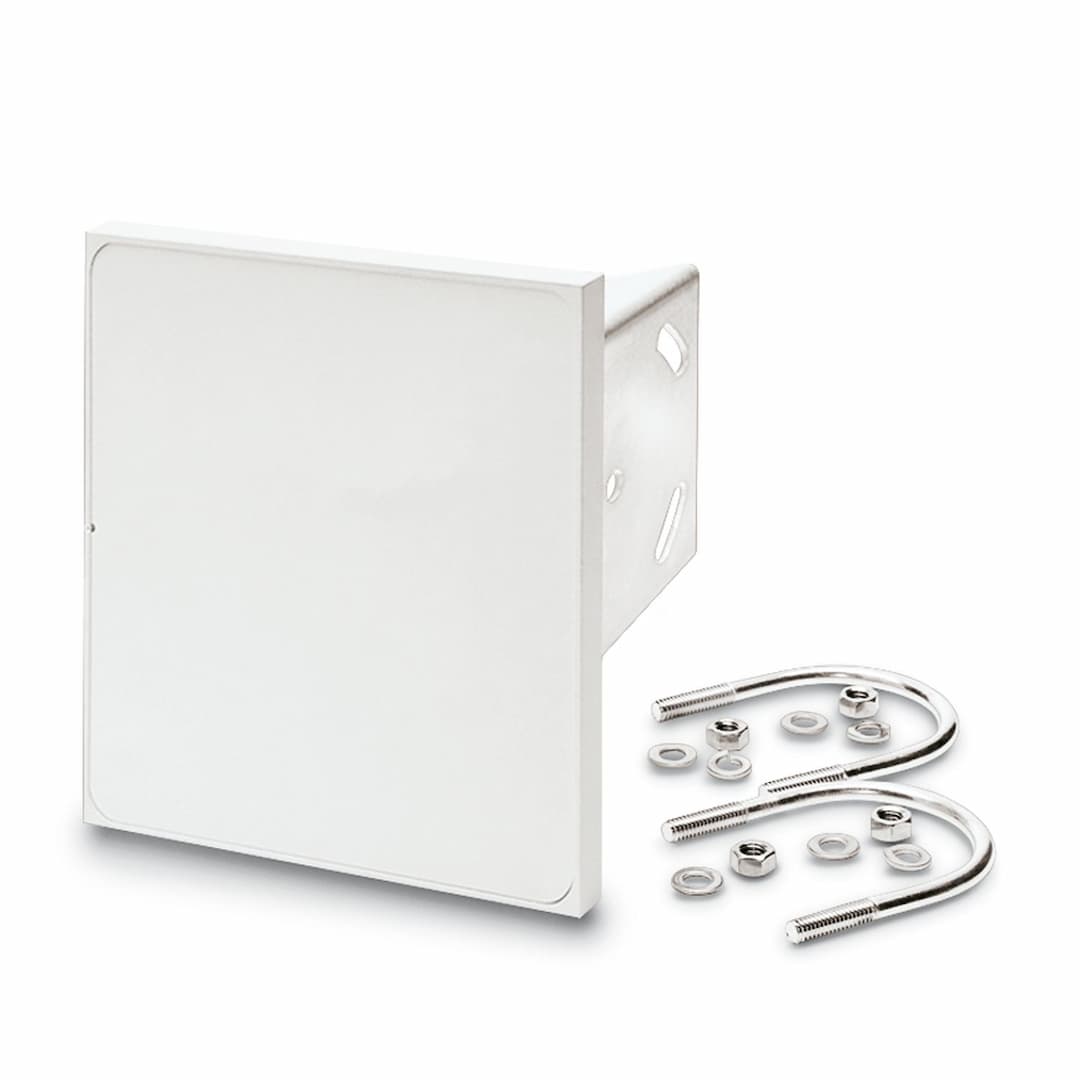

RAD-ISM-5000-ANT-PAR-18-N
Selling Points
- No selling points available for this product.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Antenna | Gain | 18 dBi |
Vertical beamwidth | 18 ° | Horizontal beamwidth | 18 ° |
Polarization | Linear vertical | Frequency band | 5 GHz |
Frequency range | 5.25 GHz ... 5.85 GHz | Impedance | 50 Ω |
Connection method | N (female) | Outside diameter | 51 mm ... 64 mm (Mast) |
Width | 152.4 mm | Height | 152.4 mm |
Outside diameter | 51 mm ... 64 mm (Mast) | Material | V2A
V2A |
Connecting cable | no | Degree of protection | IP55 |
Ambient temperature (operation) | -40 °C ... 70 °C | Mounting type | Mast mounting |
Specifications may be subject to change without notice
