Product Model

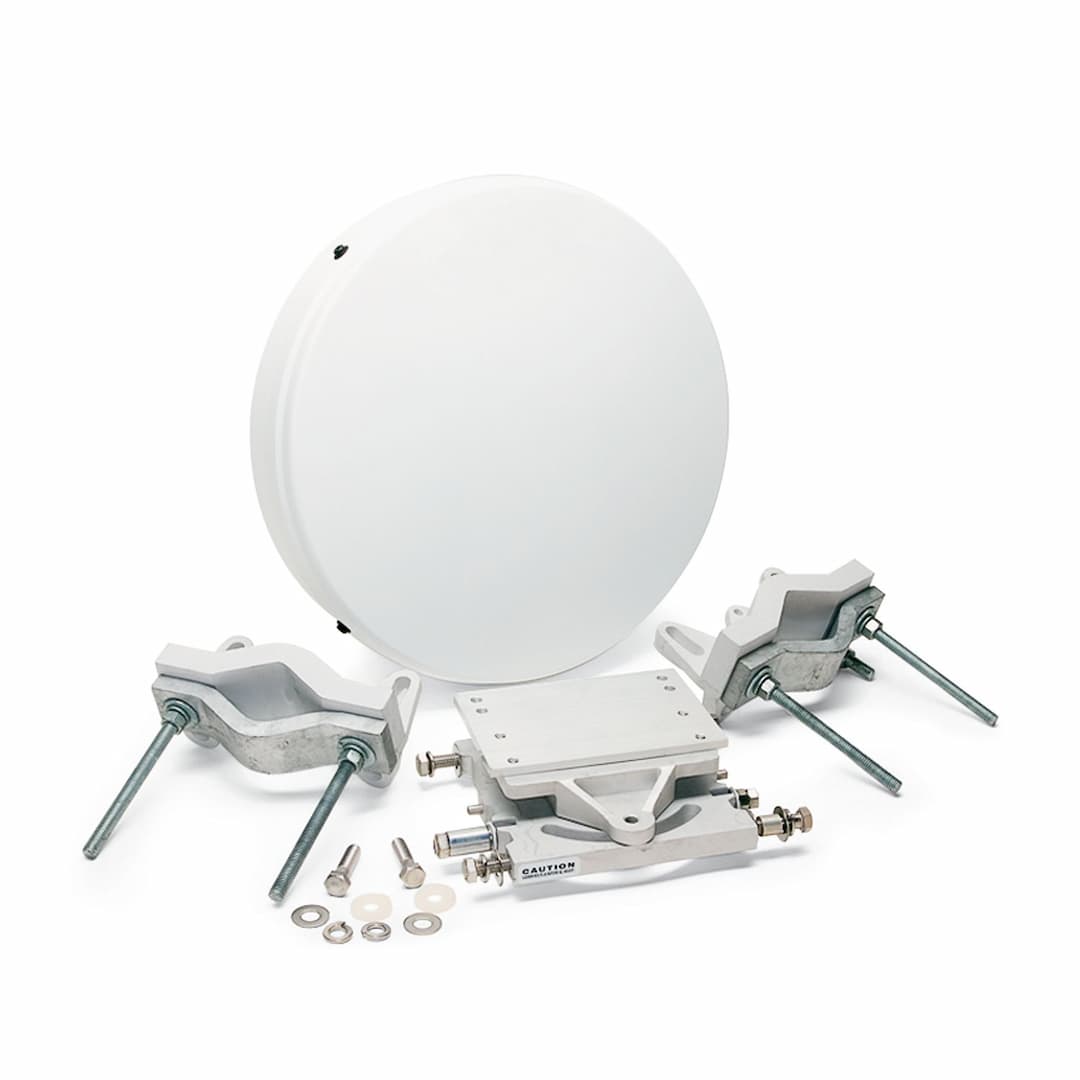

RAD-ISM-5000-ANT-PAR-22-N
Selling Points
- 122 dBi for efficient signal transmission.
- 2Ensures stable and reliable communication.
- 3Withstands harsh environmental conditions.
- 45 GHz, 5.25 GHz to 5.85 GHz.
- 5Includes mounting bracket and mast clips for seamless setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Antenna | Gain | 22 dBi |
Vertical beamwidth | 12 ° | Horizontal beamwidth | 12 ° |
Polarization | Linear vertical | Frequency band | 5 GHz |
Frequency range | 5.25 GHz ... 5.85 GHz | Impedance | 50 Ω |
Connection method | N (female) | Outside diameter | 50 mm ... 114 mm (Mast) |
Diameter | 304.8 mm | Outside diameter | 50 mm ... 114 mm (Mast) |
Material | V2A
V2A | Connecting cable | no |
Degree of protection | IP55 | Ambient temperature (operation) | -40 °C ... 70 °C |
Wind velocity | 15.4321 km/h | Mounting type | Mast mounting |
Specifications may be subject to change without notice
