Product Model
RAD-ISM-900-ANT-OMNI-FG-6-N
Selling Points
- 1Provides 360° horizontal and 15° vertical beamwidth for comprehensive coverage.
- 2Offers 8 dBi gain for enhanced signal strength and reliability.
- 3Features IP65 protection against dust and water, ensuring durability in harsh environments.

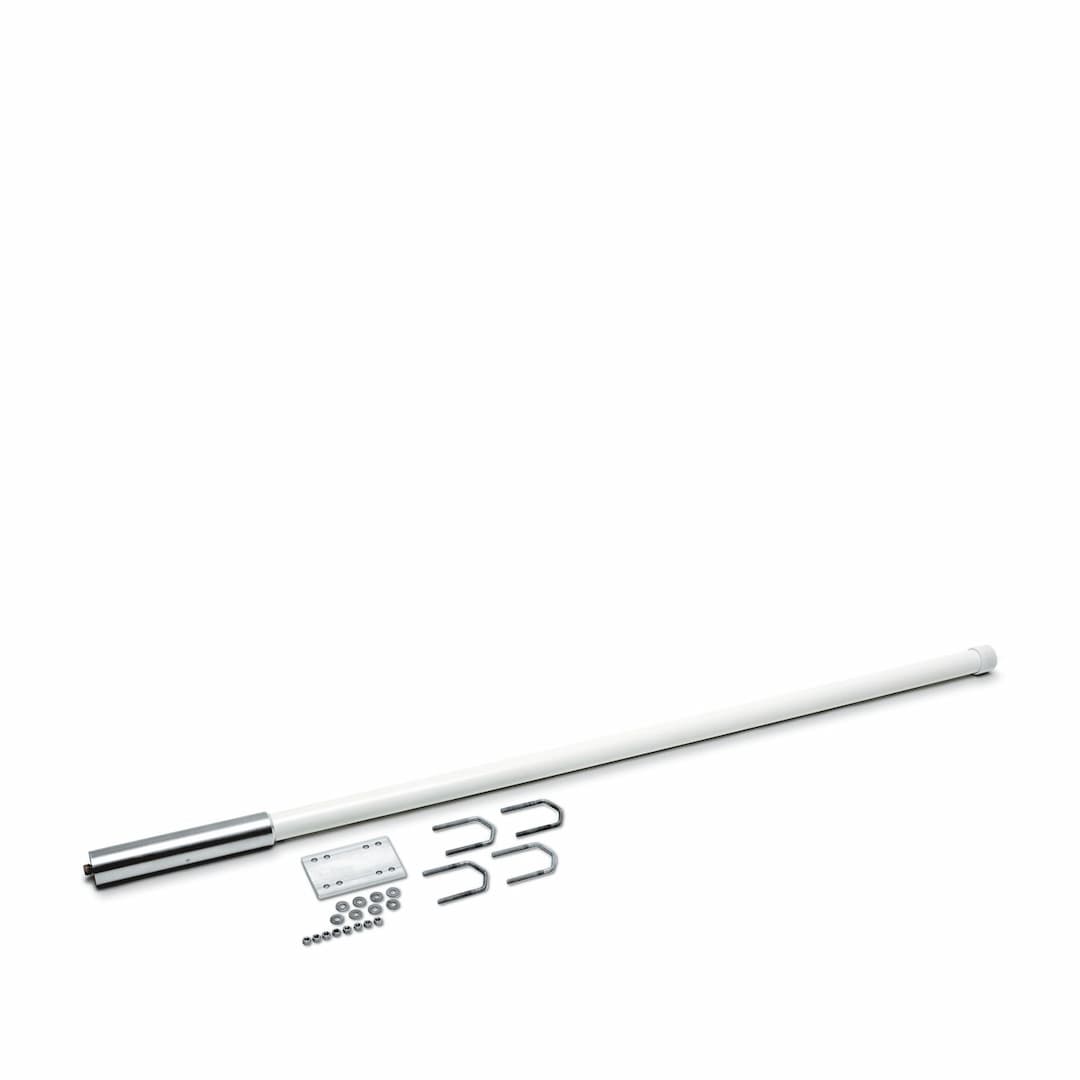

- 4Includes mounting bracket and mast clips for straightforward installation.
- 5Connects via N (female) connector, suitable for various industrial communication systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Antenna | Gain | 8 dBi |
Vertical beamwidth | 15 ° | Horizontal beamwidth | 360 ° |
Polarization | Linear vertical | Frequency band | 900 MHz |
Frequency range | 900 MHz | Impedance | 50 Ω |
Connection method | N (female) | Outside diameter | 38 mm ... 60 mm (Mast) |
Width | 6.05 cm | Height | 180.34 cm |
Outside diameter | 38 mm ... 60 mm (Mast) | Material | Fiberglass-reinforced plastic
V2A
V2A |
Connecting cable | no | Degree of protection | IP65 |
Ambient temperature (operation) | -40 °C ... 80 °C | Wind velocity | 15.5092605 km/h |
Mounting type | Mast mounting |
Specifications may be subject to change without notice
