Product Model
RAD-ISM-900-ANT-YAGI-6.5-25-AS
Selling Points
- 1Achieve reliable and long-range wireless connections with a gain of 8.5 dBi.
- 2Safeguard your system with built-in surge protection for added reliability.
- 3Ensure durability in harsh environments with IP65 protection against dust and water.

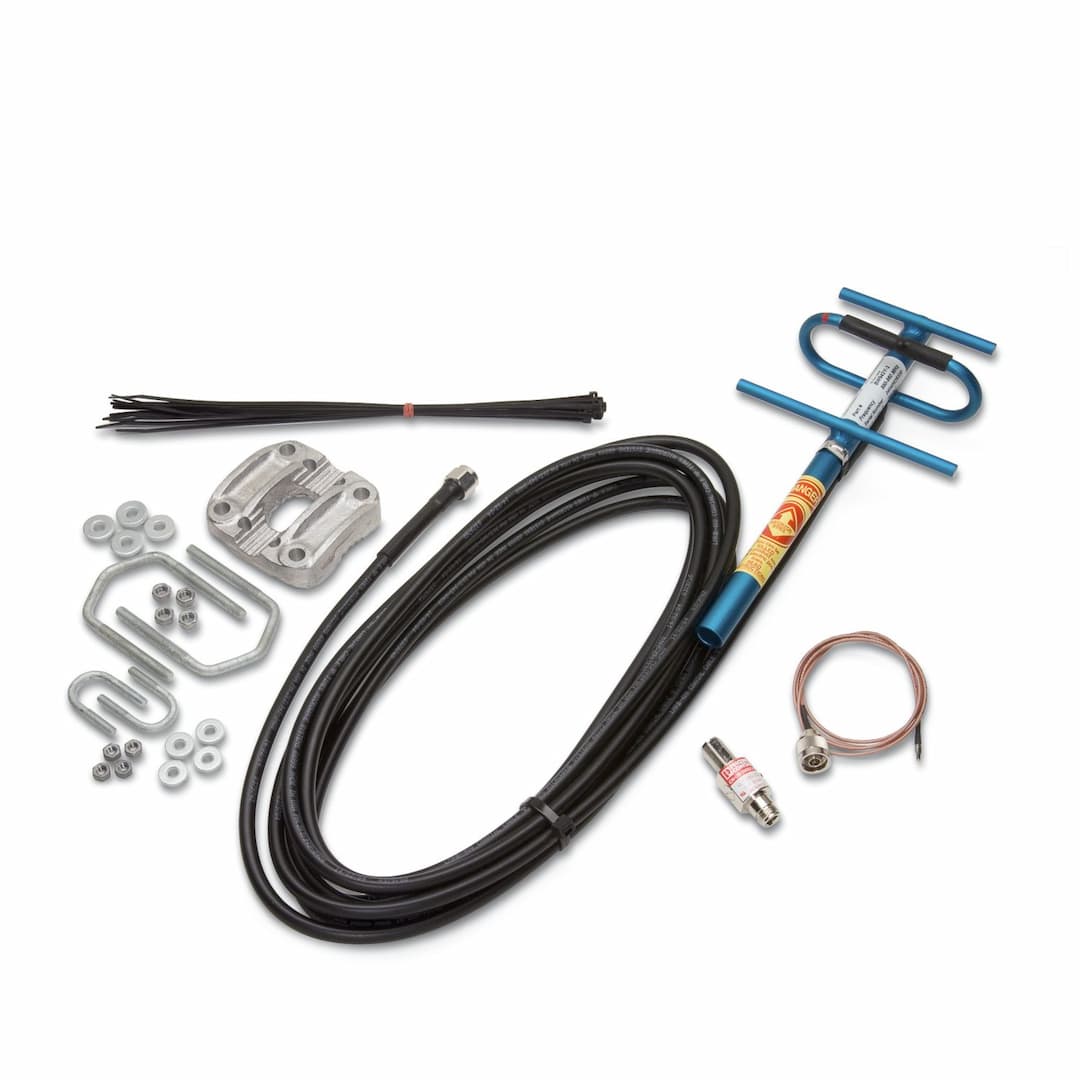

- 4Easily mount the antenna with included mast clips and adapter cable MCX->N.
- 5Connect via N (female) with a cable length of 7.6 meters for versatile setup options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Antenna | Gain | 8.5 dBi |
Vertical beamwidth | 62 ° | Horizontal beamwidth | 100 ° |
Frequency band | 900 MHz | Frequency range | 900 MHz |
Impedance | 50 Ω | Connection method | N (female) with cable (7.5 m) |
Width | 6 cm | Height | 17 cm |
Connecting cable | yes | Degree of protection | IP65 |
Ambient temperature (operation) | -40 °C ... 80 °C | Wind velocity | 15.4321 km/h |
Specifications may be subject to change without notice
