Product Model
RAD-ISM-900-ANT-YAGI-6.5-N
Selling Points
- 18.5 dBi gain for enhanced signal strength.
- 2Linear polarization with a horizontal beamwidth of 100° and vertical beamwidth of 62°.
- 3IP65 protection against dust and water, ensuring reliability in harsh environments.

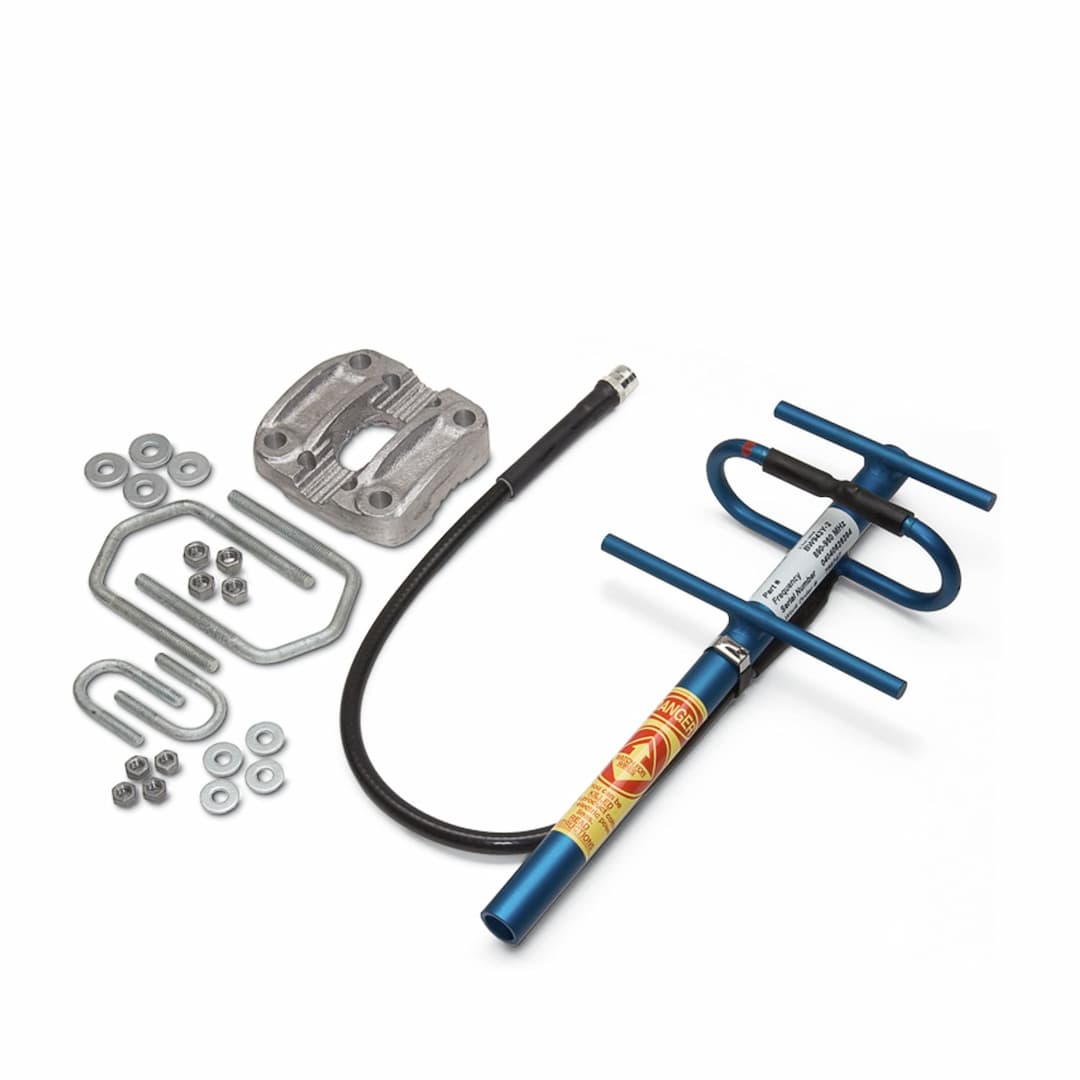

- 4Includes mounting bracket and mast clips for straightforward setup.
- 5N (female) connection with a 0.6 m cable for flexible integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Antenna |
Gain | 8.5 dBi | Vertical beamwidth | 62 ° |
Horizontal beamwidth | 100 ° | Polarization | Linear vertical or horizontal |
Frequency band | 900 MHz | Frequency range | 868 MHz ... 960 MHz |
Impedance | 50 Ω | Connection method | N (female) with cable (0.6 m) |
Outside diameter | 32 mm ... 60 mm (Mast) | Width | 60.5 mm |
Height | 172 mm | Length | 304.8 mm |
Outside diameter | 32 mm ... 60 mm (Mast) | Material | Aluminum
V2A
V2A |
Cable length | 0.60 m | Connecting cable | yes |
Degree of protection | IP65 | Ambient temperature (operation) | -40 °C ... 80 °C |
Wind velocity | 15.4321 km/h | Mounting type | Mast mounting |
Specifications may be subject to change without notice
