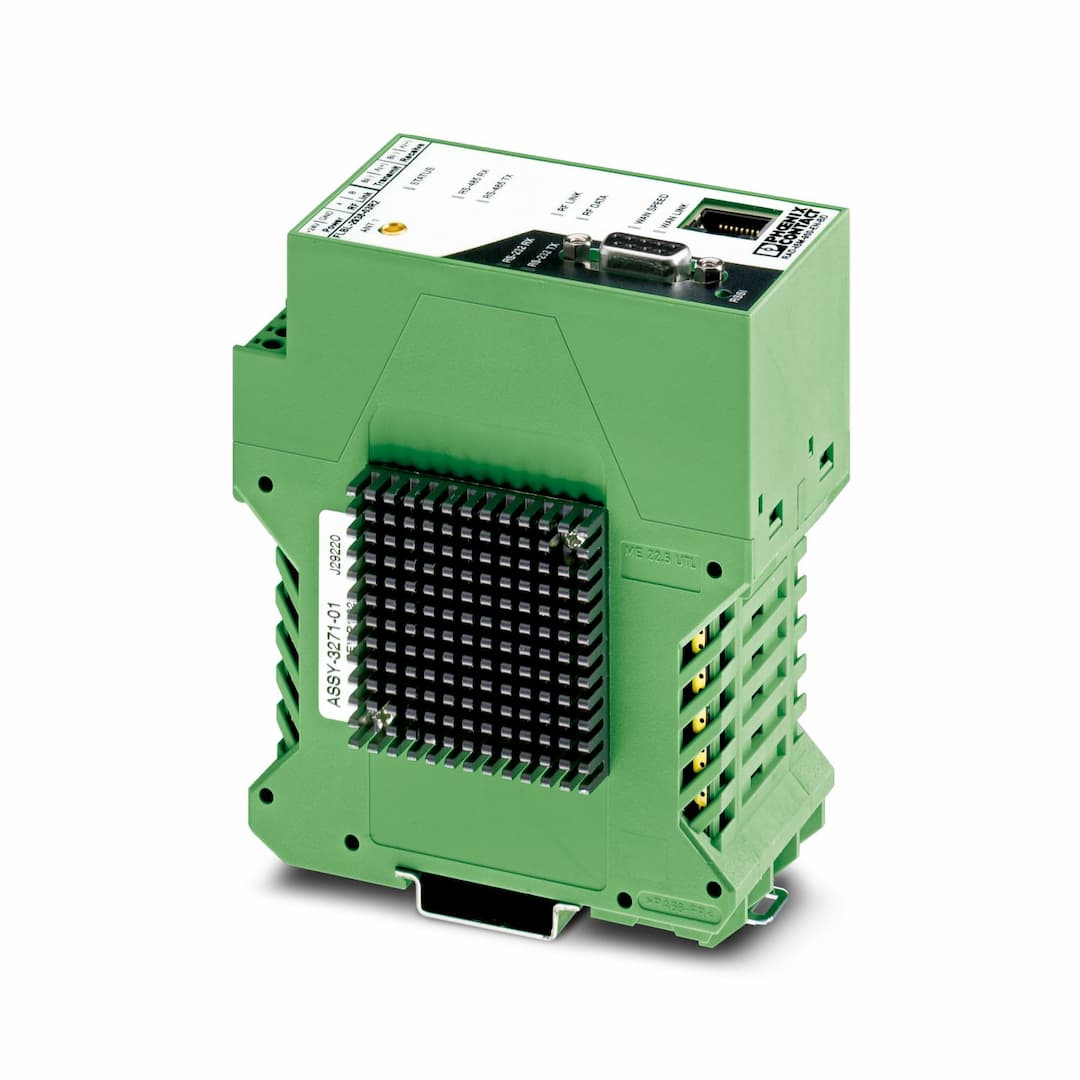

Product Model
RAD-ISM-900-EN-BD-BUS
Selling Points
- 1Bidirectional wireless transmission system for seamless data exchange.
- 2Integrated bus foot enables connection to additional I/O modules.
- 3Supports Ethernet, RS-232, and RS-485 interfaces for versatile integration.
- 4Operates in the license-free 902-928 MHz ISM band for secure communication.
- 5Compatible with Modbus/TCP protocol for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Supply voltage | 24 V DC |
Supply voltage range | 11 V DC ... 30 V DC | Max. current consumption | 250 mA (at 24 V DC) |
Connection method | Screw connection | Stripping length | 8 mm |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Cross section AWG | 24 ... 14 | Screw thread | M3 |
Data rate | 300 ... 57,6 kBit/s | Connection method | D-SUB-9 female connector |
File format/coding | Asynchronous | Data flow control/protocols | RTS/CTS |
Connection method | COMBICON plug-in screw terminal block | Direction | Bi-directional |
Frequency | 900 MHz | Frequency range | 902 MHz ... 928 MHz |
Transmission power | 1 W (adjustable in 1 dBm increments) | Transmit capacity, minimum | 10 dBm |
Transmit capacity, maximum | 30 dBm | Operating modes | bidirectional |
Frequency band | 900 MHz | Width | 52 mm |
Height | 99 mm | Depth | 115 mm |
Color | green | Housing material | Polyamide PA non-reinforced with aluminum heatsink |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 65 °C |
Ambient temperature (storage/transport) | -40 °C ... 75 °C | Conformance | FCC Directive, Part 15.247
ISC Directive RSS 210 |
UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D | Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 |
Mounting position | any |
Specifications may be subject to change without notice
