Product Model

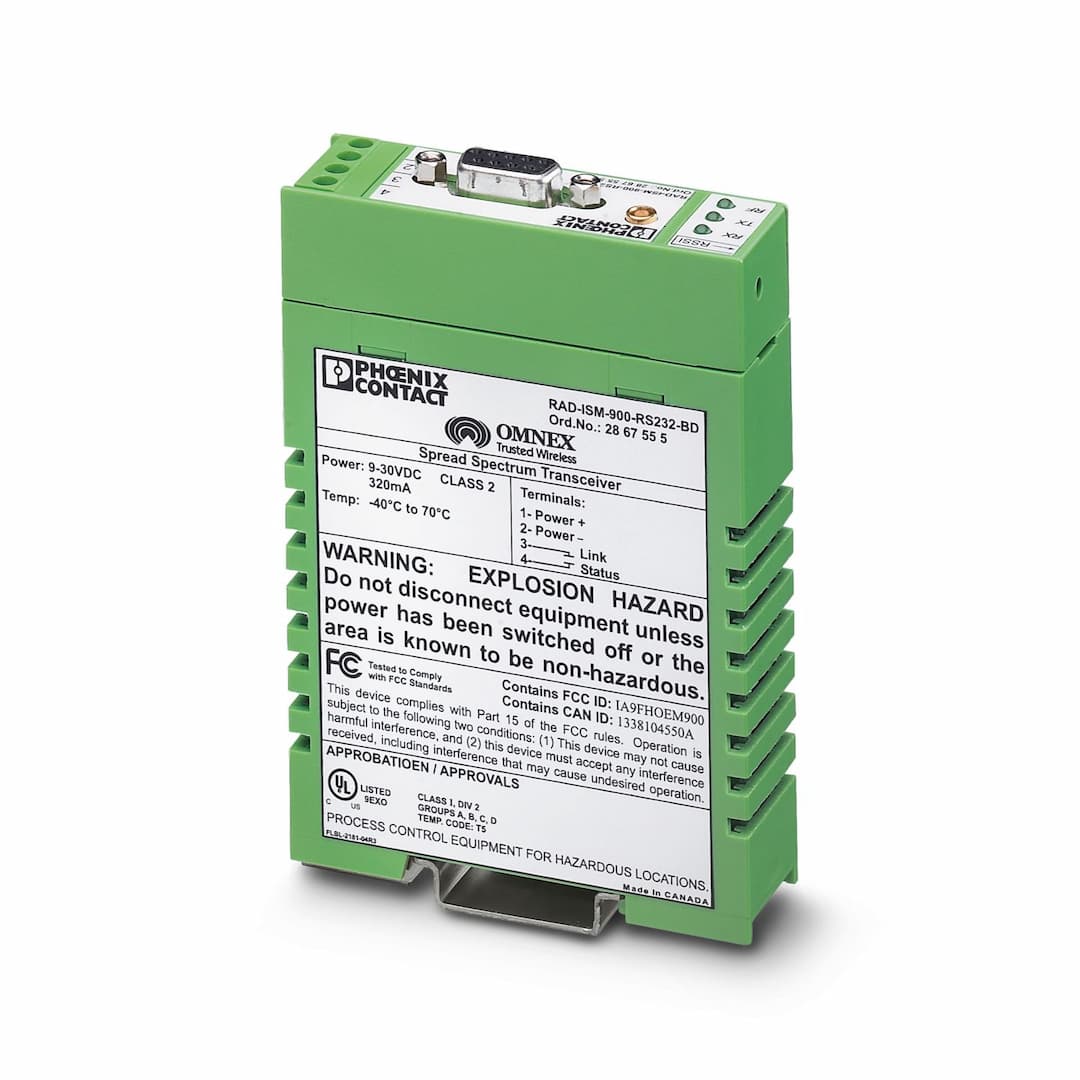

RAD-ISM-900-RS232-BD
Selling Points
- 1Built with plastic housing and designed for harsh industrial environments.
- 2Supports up to 1,000 feet (305m) in-plant range and 4 to 5 miles (6 to 8km) LOS with Omni antenna.
- 3Supports Modbus RTU and Allen Bradley DF1 protocols for seamless integration.
- 4Access remote radios via secondary port for real-time system health monitoring.
- 5Dimensions are 2.9" x 0.88" x 4.2" (75mm x 22.5mm x 107.5mm) for easy mounting on DIN-rail.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Supply voltage | 24 V DC |
Supply voltage range | 9 V DC ... 30 V DC | Typical current consumption | 110 mA |
Max. current consumption | 180 mA | Connection method | Screw connection |
Stripping length | 8 mm | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Cross section AWG | 24 ... 12 |
Screw thread | M3 | Data rate | 1,2 / 2,4 / 9,6 / 19,2 / 38,4 kBit/s |
Connection method | D-SUB-9 female connector | File format/coding | Asynchronous |
Data flow control/protocols | RTS/CTS | Direction | Bi-directional |
Frequency | 900 MHz | Frequency range | 902 MHz ... 928 MHz |
Number of channel groups | 4 | Number of channels per group | 63 |
Transmission power | 1 W | Frequency band | 900 MHz |
Width | 22.5 mm | Height | 75 mm |
Depth | 107.5 mm | Color | green |
Housing material | Polyamide PA non-reinforced | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 70 °C
-40 °F ... 158 °F | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Conformance | FCC Directive, Part 15.247
ISC Directive RSS 210 | UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D |
Electromagnetic compatibility | FCC Part 15.247 / ISC RSS 210 | Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 |
Mounting position | any |
Specifications may be subject to change without notice
