Product Model

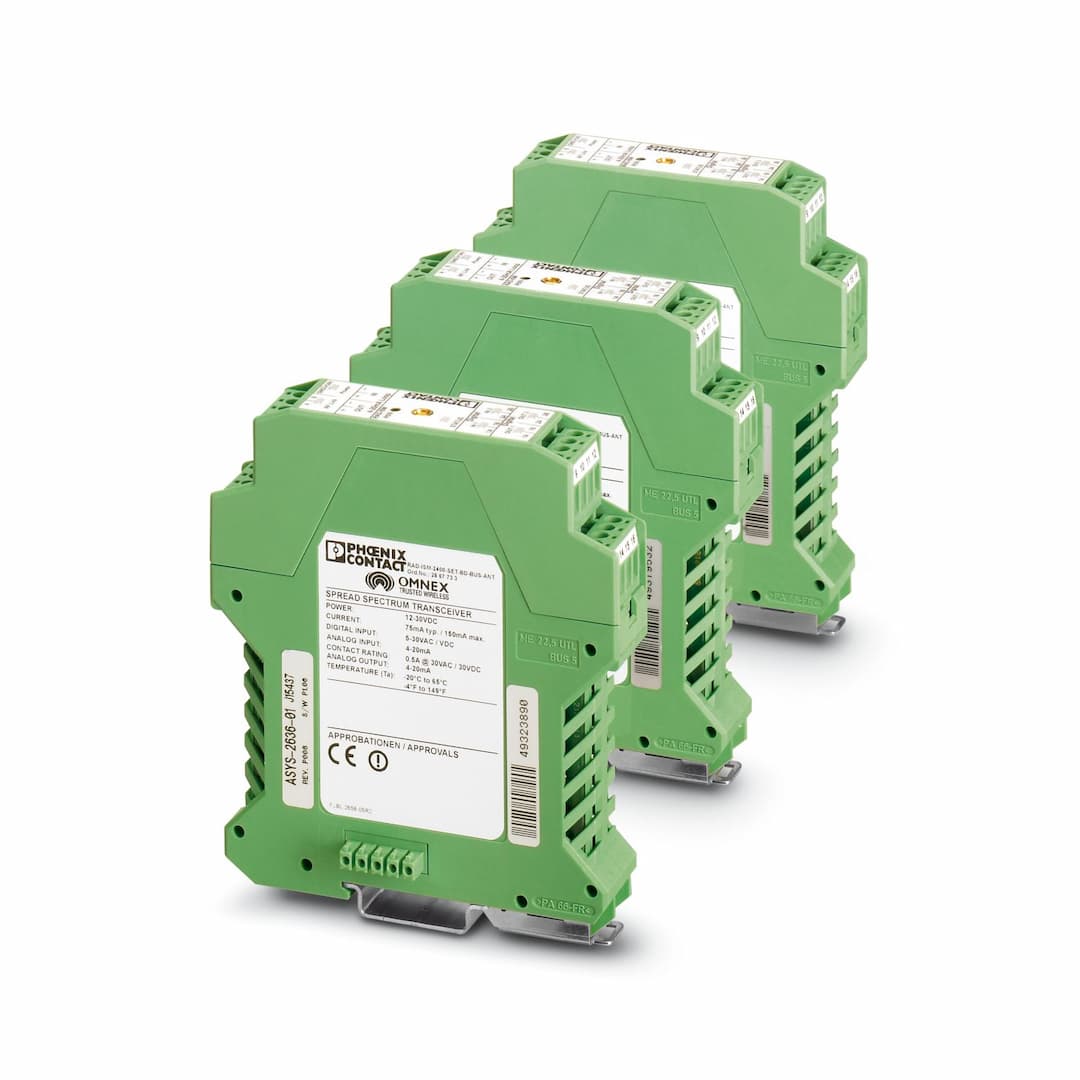

RAD-ISM-900-SET-XD-BUS-2
Selling Points
- 1Enable seamless two-way communication with the RAD-ISM-900-SET-XD-BUS-2.
- 2Ensure reliable transmission with frequency hopping spread spectrum technology.
- 3Designed for industrial use with a robust housing made of polyamide PA non-reinforced material.
- 4Operate in temperatures ranging from -40°C to 70°C, suitable for various industrial environments.
- 5Mount on any DIN rail NS 35 for quick and easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Wireless module | Supply voltage | 24 V DC |
Supply voltage range | 9 V DC ... 30 V DC | Typical current consumption | 75 mA |
Max. current consumption | 24 mA | Input voltage range | 5 V AC/DC ... 30 V AC/DC |
Switching threshold "0" signal, voltage | max. 1.5 V DC | Switching threshold "1" signal voltage | min. 5 V DC |
Description of the input | Current input (analog input) | Current input signal | 4 mA ... 20 mA |
Input resistance current input | < 170 Ω | Description of the input | Voltage input (digital input) |
Output name | 2x relay output + 1 x RF link | Number of outputs | 3 |
Contact switching type | 3 floating N/O contacts | Contact material | Ag, gold-plated |
Maximum switching voltage | 30 V DC
250 V AC | Limiting continuous current | 2 A |
Output name | Current output | Number of outputs | 1 |
Load/output load current output | 700 Ω (at U | Connection method | Screw connection |
Stripping length | 8 mm | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Cross section AWG | 24 ... 14 |
Screw thread | M3 | Direction | Bi-directional |
Frequency | 900 MHz | Frequency range | 902 MHz ... 928 MHz |
Channel distance | 22 kHz | Number of channel groups | 4 |
Number of channels per group | 63 | Transmission power | 1 W |
Frequency band | 900 MHz | Width | 22.5 mm |
Height | 99 mm | Depth | 114.5 mm |
Color | green | Housing material | Polyamide PA non-reinforced |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Conformance | FCC Directive, Part 15.247
ISC Directive RSS 210 |
Assembly note | DIN rail NS 35 | Mounting position | any |
Specifications may be subject to change without notice
