Product Model

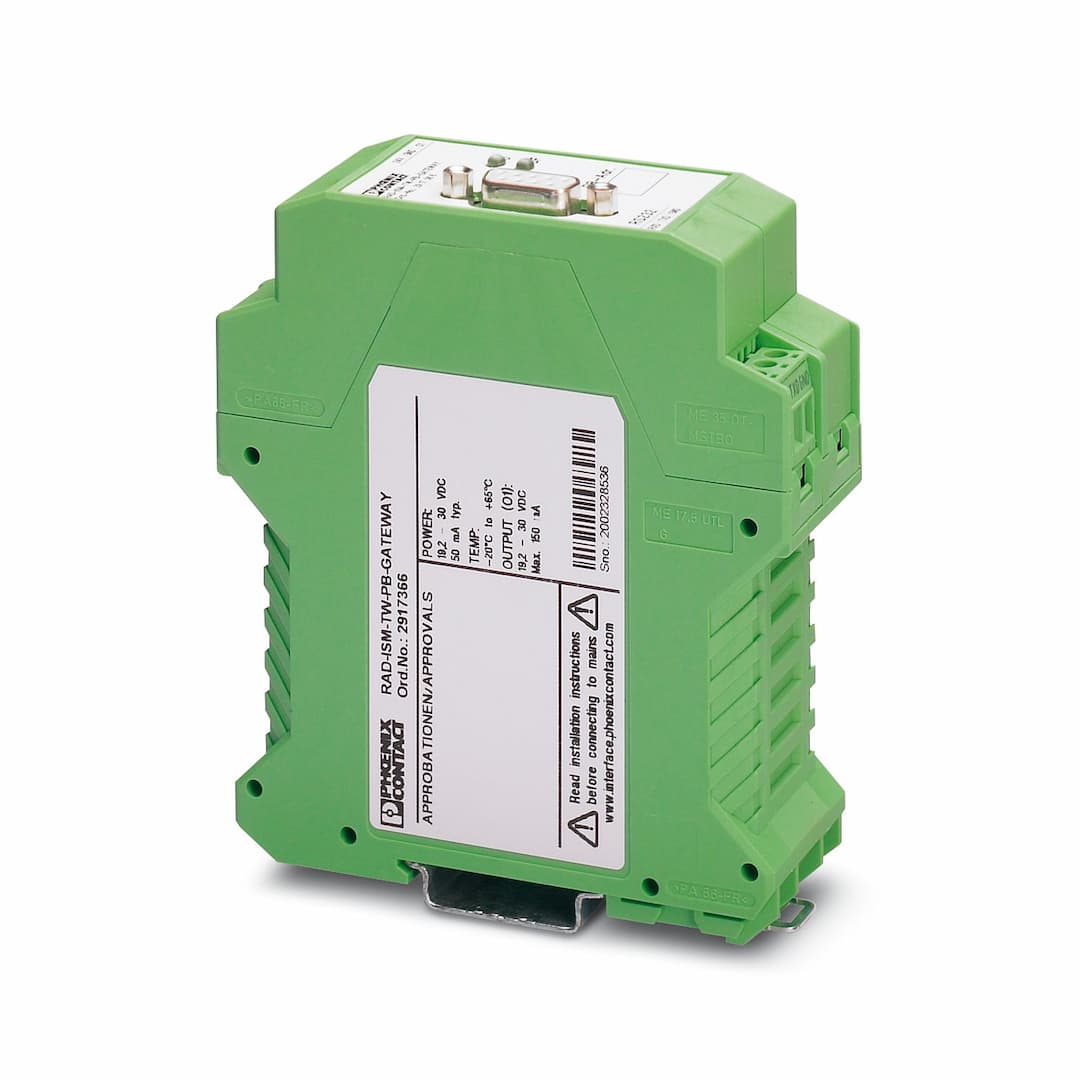

RAD-ISM-TW-PB-GATEWAY
Selling Points
- 1High-Performance Gateway Solution: Designed for industrial applications, ensuring robust and reliable network operation.
- 2Industrial-Grade Reliability: Built to withstand harsh environments, providing consistent performance in demanding conditions.
- 3Easy Integration: Simple to integrate with existing systems, minimizing setup time and effort.
- 4Advanced Connectivity Options: Supports various connectivity options, including ISM band frequencies, for seamless data transmission.
- 524-Hour Stock Availability: Get instant stock updates within 24 hours, ensuring timely delivery of your needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Gateways/Proxies |
Operating mode | 100% operating factor | Insulation voltage PROFIBUS side / equipment electronics | 500 V AC (1 min.) |
Maximum power dissipation for nominal condition | 1.2 W | Test voltage data interface/power supply | 500 V AC |
Nominal supply voltage | 24 V DC -20 % ... +25 % (U | Typical current consumption | 50 mA (plus load current of an output) |
Protective circuit | Polarity protection, surge protection | Input voltage | 24 V DC ±20 % |
Nominal input current at U | typ. 50 mA (plus load current of an output) | Protective circuit | Polarity protection, surge protection |
Output name | Digital outputs | Number of outputs | 1 |
Residual voltage | < 0.5 V DC (U | Maximum switching voltage | 24 V DC ±20 % (U |
Max. switching current | 150 mA | Protective circuit | Polarity protection, surge protection; Freewheeling diode |
Connection method | COMBICON | Connection method | COMBICON |
Tightening torque | 0.56 Nm ... 0.79 Nm | Signal | PROFIBUS |
Transmission speed | 57.6 kbps | Connection method | COMBICON |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section AWG max. | 14 | Conductor cross section AWG min. | 24 |
Data rate | 12 MBit/s | Connection method | D-SUB-9 |
Width | 35 mm | Height | 114.5 mm |
Depth | 99 mm | Color (Housing) | green (RAL 6021) |
Material (Housing) | Polycarbonate | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Assembly note | in rows with zero spacing | Mounting position | any |
