Product Model

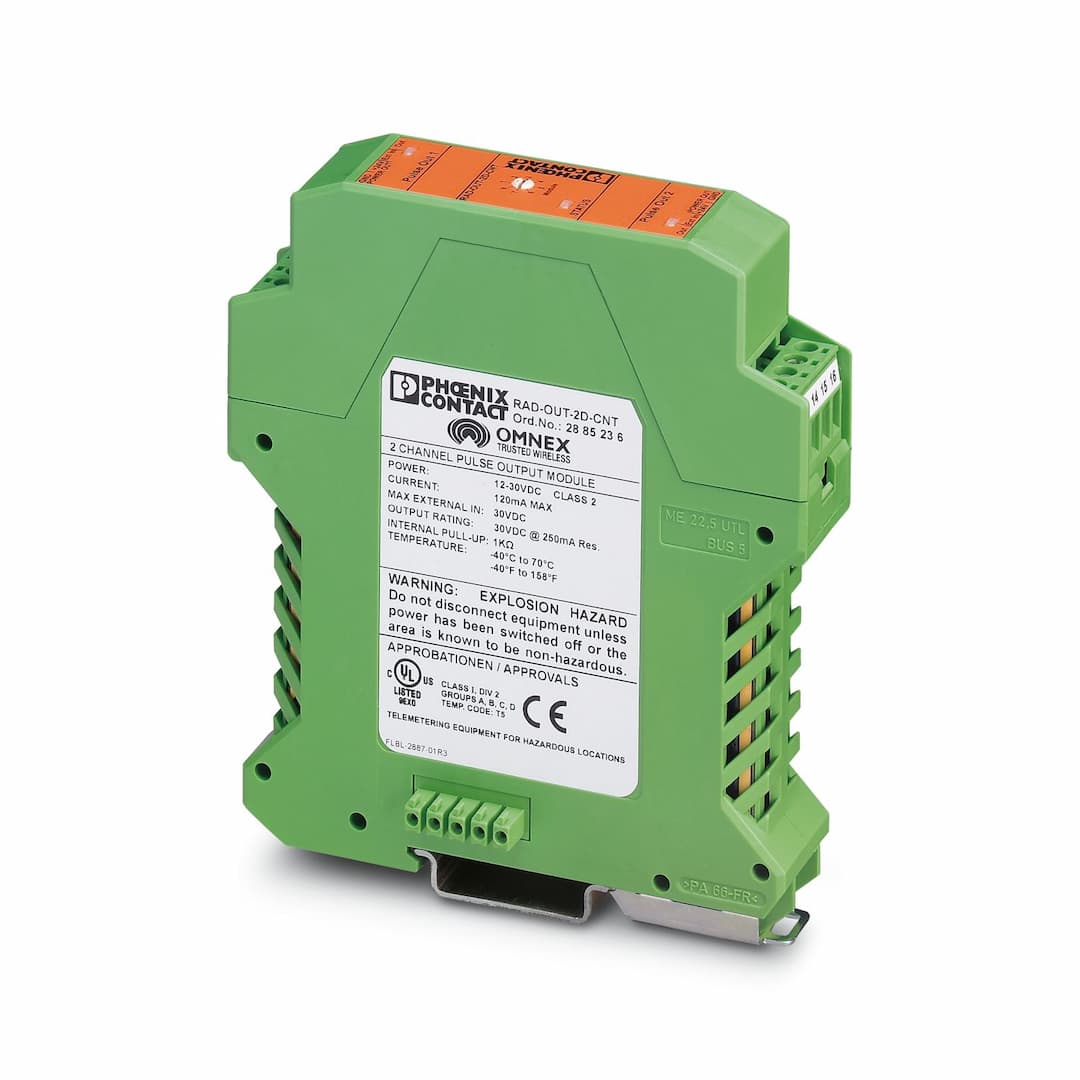

RAD-OUT-2D-CNT
Selling Points
- 1Accurate Pulse and Frequency Measurement: The module provides 2 digital outputs for precise measurement of pulses and frequencies.
- 2Industrial-Grade Reliability: Designed for Class I, Division 2 environments, ensuring reliable operation in harsh industrial settings.
- 3Easy Installation: Mounts on standard DIN rail NS 35 according to EN 60715, simplifying installation and integration.
- 4High Data Reliability: Built with CE-compliant and UL-approved components, ensuring high data integrity and safety.
- 5Compact Design: Measures 22.5 mm in width, 99 mm in height, and 114.5 mm in depth, making it space-efficient for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Extension module | Maximum power dissipation for nominal condition | 2.76 W |
Connection method | Screw connection | Supply voltage range | 9 V DC ... 30 V DC (via bus foot) |
Typical current consumption | 90 mA | Max. current consumption | 115 mA |
Connection method | Screw connection | Stripping length | 8 mm |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Cross section AWG | 24 ... 14 | Screw thread | M3 |
Width | 22.5 mm | Height | 99 mm |
Depth | 114.5 mm | Color (Housing) | green (RAL 6021) |
Material (Housing) | Polyamide | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 65 °C
-4 °F ... 149 °F | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Identification | Class I, Div. 2, Groups A, B, C, D |
Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 | Mounting position | any |
Specifications may be subject to change without notice
