Product Model

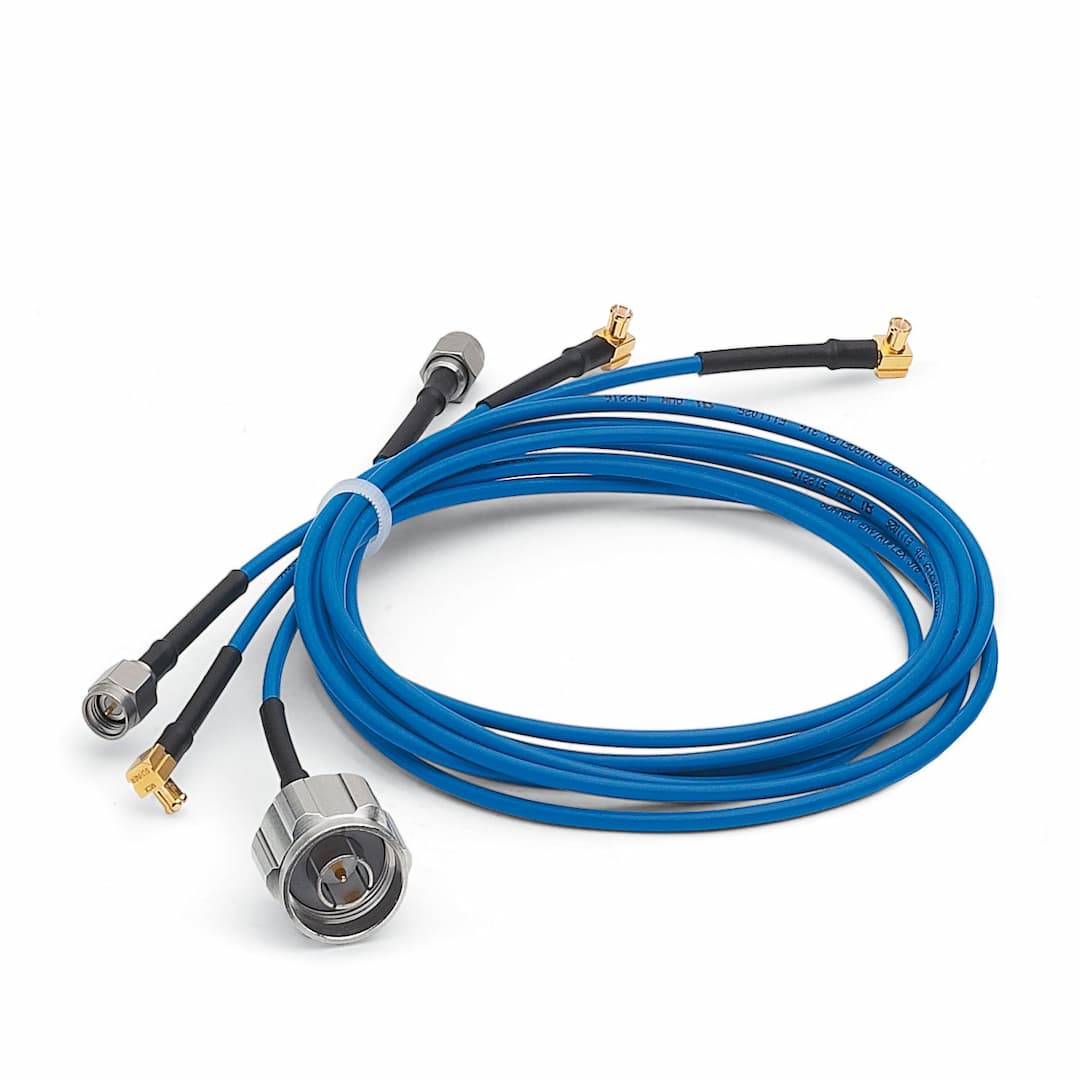

RAD-PIG-EF316-N-N
Selling Points
- 150 Ω Impedance for Reliable Signal Transmission
- 2Supports 2.4 GHz and 5 GHz Frequency Range
- 3Durable RADOX LSFH Outer Sheath for Longevity
- 4Flexible Cable Design with 50 cm Fixed Length
- 5Halogen-Free and Flame-Retardant for Safety
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Coaxial cable | Frequency range | 900 MHz
2.4 GHz
5 GHz |
Impedance | 50 Ω | Connection method | N (female) |
Connection method | N (male) | Outer sheath, material | RADOX®(LSFH) |
Cable length | 50 cm | Cable type | EF 316 |
External cable diameter | 2.50 mm | Outer sheath, material | RADOX®(LSFH) |
External sheath, color | blue | Bending radius, long-term | 12.50 mm |
868 / 900 MHz | 0.6 dB | 2.4 GHz | 1 dB |
Ambient temperature (operation) | -40 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Specifications may be subject to change without notice
