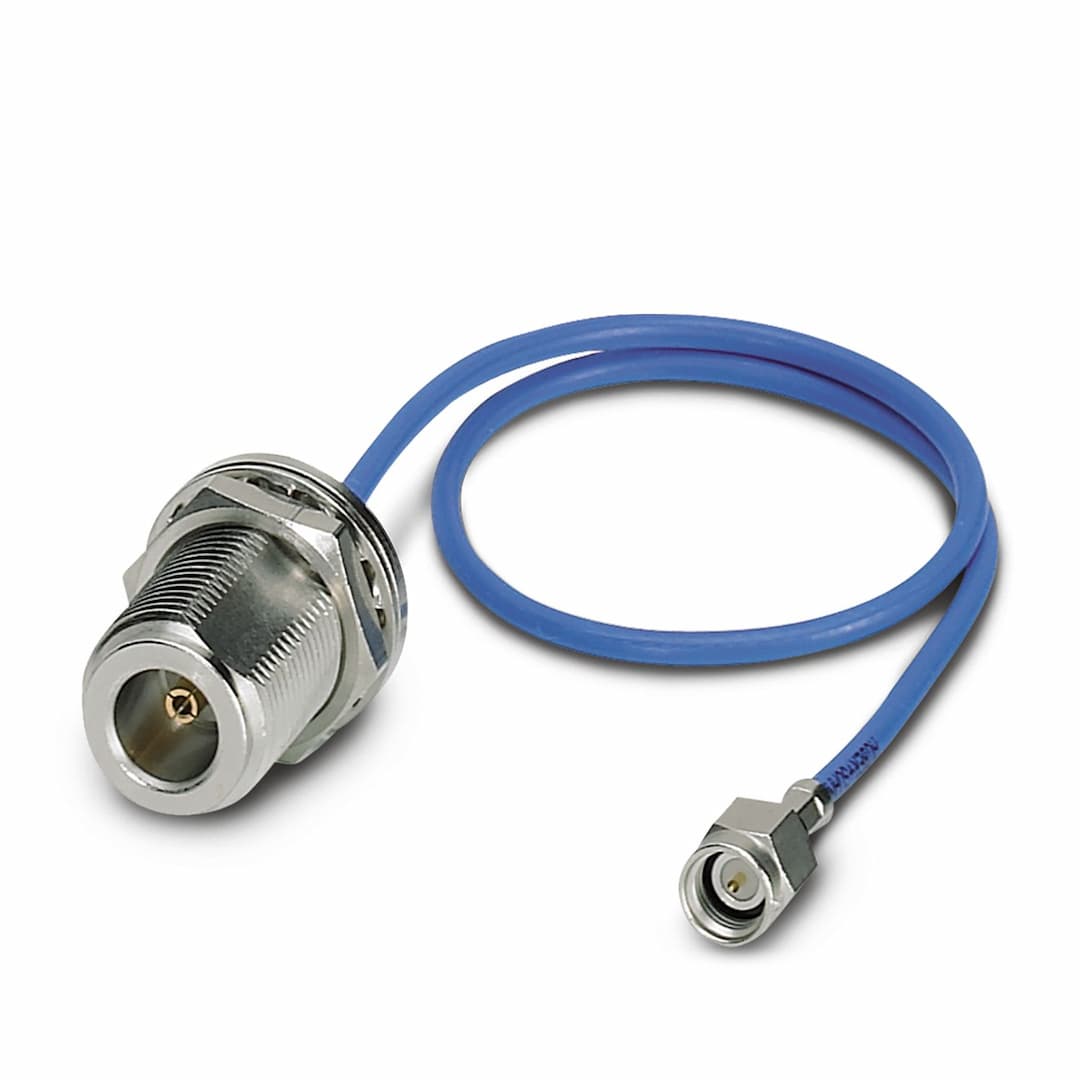

Product Model
RAD-PIG-EF316-N-SMA
Selling Points
- 1Halogen-free and Flame-retardant: Ensures safety in various environments.
- 2Stranded Inner Conductor: Provides reliable signal transmission.
- 3Attenuation: 0.5 / 0.7 / 0.9 dB: Optimized for 0.9, 2.4, and 5.8 GHz frequencies.
- 4UV Resistant: Long-lasting performance in outdoor conditions.
- 5Commercial Data Item Number 2867694: Easy identification and ordering.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Coaxial cable |
Frequency range | 0.3 GHz ... 6 GHz | Impedance | 50 Ω |
Connection method | SMA (male) | Connection method | N (female) |
Outer sheath, material | RADOX®(LSFH) | Cable length | 30 cm |
Cable type | EF 316 | External cable diameter | 2.50 mm |
Outer sheath, material | RADOX®(LSFH) | External sheath, color | blue |
Bending radius, long-term | 12.50 mm | 868 / 900 MHz | 0.5 dB |
2.4 GHz | 0.7 dB | Ambient temperature (operation) | -40 °C ... 105 °C |
Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Specifications may be subject to change without notice
