Product Model

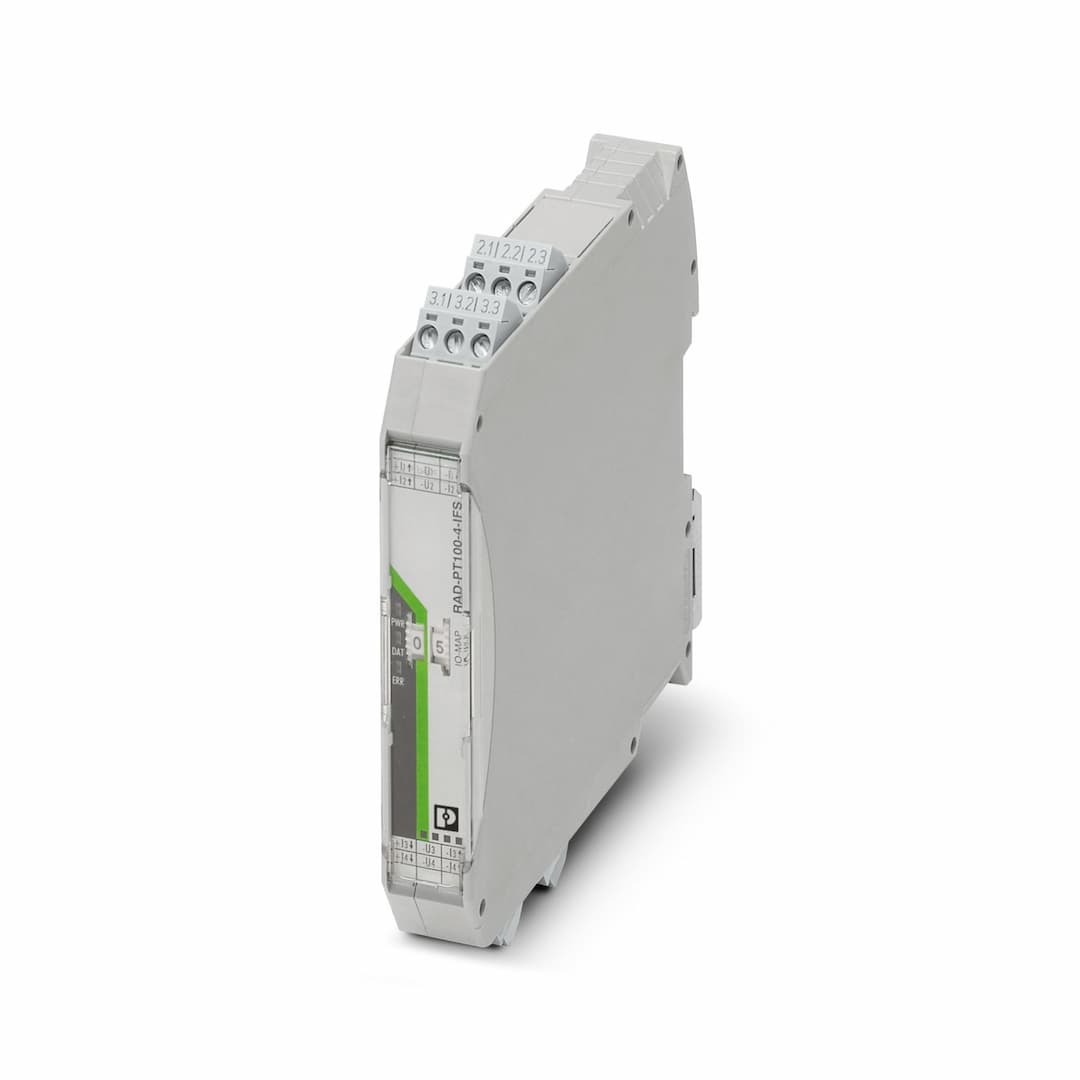

RAD-PT100-4-IFS
Selling Points
- 1Measures temperature with 0.1% accuracy over the range of -50 °C to 250 °C.
- 2Simple thumbwheel operation for easy assignment of inputs and outputs.
- 3Allows for easy module replacement even during operation.
- 4Operates in ambient temperatures from -40 °C to 70 °C.
- 5Meets EMC Directive 2014/30/EU and ATEX standards for use in potentially explosive areas.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on application | Only for industrial use | Product type | Extension module |
MTTF | 1249 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
506 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
194 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) | Article revision | 09 |
Overvoltage category | II | Degree of pollution | 2 |
Rated insulation voltage | 60 V (In accordance with EN/IEC 60079-7) | Electrical isolation | 50 V (Rated insulation voltage (in each case between the Pt 100 inputs / TBUS supply, reinforced insulation in accordance with EN 61010))
300 V (Rated insulation voltage (to adjacent devices, basic insulation in accordance with EN/IEC 61010)) |
Test voltage | 1.5 kV AC (50 Hz, 1 min.) | Maximum power dissipation for nominal condition | 0.912 W |
Transient surge protection | yes | Supply voltage range | 19.2 V DC ... 30.5 V DC (DIN rail connector) |
Max. current consumption | ≤ 38 mA (At 24 V DC, at 25°C) | Description of the input | Pt 100 input |
Number of inputs | 4 | Connection technology | 2-, 3-conductor |
Temperature measuring range | -50 °C ... 250 °C | Measuring accuracy | 0.1% (From the measuring range final value) |
Process data channel | 16 bit (per channel) | Max. permissible overall conductor resistance | 25 Ω |
Sensor input current | 1 mA (constant) | Tightening torque | 0.5 Nm ... 0.6 Nm
5 lb |
Connection method | Screw connection | Stripping length | 7 mm |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Status display | LED supply voltage, PWR (green)
Green LED (bus communication, DAT)
LED periphery error, ERR (red) | Width | 17.5 mm |
Height | 113 mm | Depth | 114.5 mm |
Color (Housing) | gray (RAL 7042) | Material (Housing) | PA 6.6-FR |
Flammability rating according to UL 94 | V0 | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 70 °C
-40 °F ... 158 °F | Ambient temperature (storage/transport) | -40 °C ... 85 °C
-40 °F ... 185 °F |
Altitude | 2000 m | Permissible humidity (operation) | 20 % ... 85 % |
Permissible humidity (storage/transport) | 20 % ... 85 % | Shock | 16g, 11 ms |
Vibration (operation) | in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz | Certificate | CE-compliant |
Identification | II 3 G Ex ec IIC T4 Gc | Certificate | IBExU 15 ATEX B008 X |
Note | Please follow the special installation instructions in the documentation! | Identification | Ex ec IIC T4 Gc |
Certificate | IECEx IBE 13.0019X | Identification | 2Ex nA nC IIC T4 Gc X |
Certificate | RU C-DE.HB49.B.00033/20 | Identification | 508 Listed
Class I, Div. 2, Groups A, B, C, D T4A
Class I, Zone 2, IIC T4 |
Identification | Ex ec IIC T4 Gc | Certificate | 2022122310115625 |
Certificate | KTL 20-KA4BO-149X | Identification | ISA-S71.04-1985 G3 Harsh Group A |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Noise immunity | EN 61000-6-2 |
Noise emission | EN 61000-6-4 | Standard designation | EMC Directive 2014/30/EU |
Standards/specifications | EN 61000-6-2 | Standard designation | EMC Directive 2014/30/EU |
Standards/specifications | EN 61000-6-4 | Standard designation | Ex Directive (ATEX) |
Standards/specifications | EN 60079-0 | Standard designation | Ex Directive (ATEX) |
Standards/specifications | EN 60079-15 | Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 |
Mounting position | any |
Specifications may be subject to change without notice
