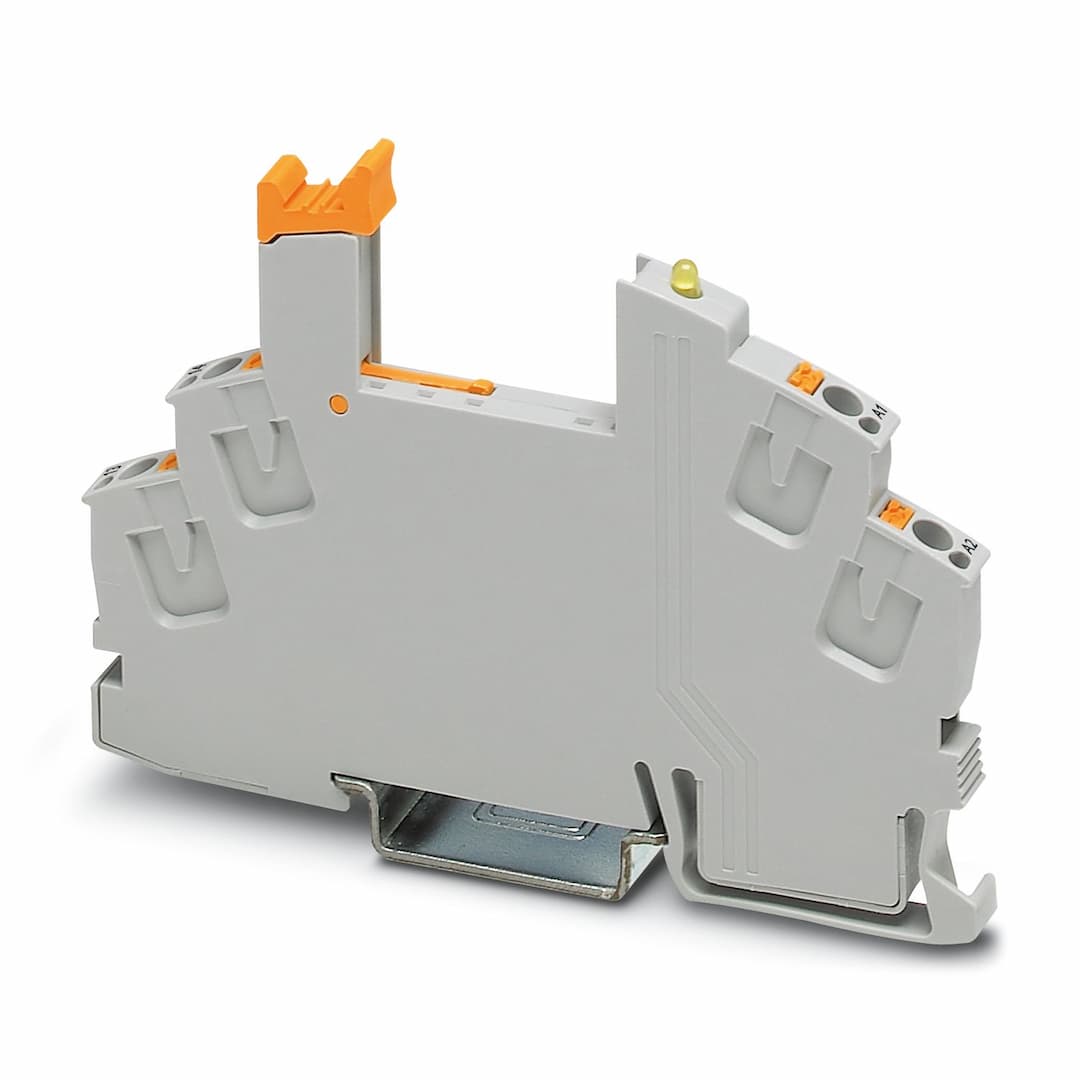

Product Model
RIF-0-BPT/1
Selling Points
- 1Compact design with dimensions: 6.2 mm width, 93 mm height, and 66 mm depth.
- 2Compatible with miniature power relays and solid-state relays of the same design.
- 3Push-in connection for easy installation and reliable contacts.
- 4Ambient temperature range: -40 °C to 85 °C for operation and storage/transport.
- 5Input voltage range: 12 V DC to 24 V DC with damping diode for protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay socket | Product family | RIFLINE complete |
Article revision | 08 | Nominal voltage U | 250 V AC/DC (Contact side) |
Nominal current I | max. 8 A (Depends on application/assembly) | Protective circuit | Freewheeling diode |
Input voltage range | 12 V DC ... 24 V DC | Connection method | Push-in connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) | Conductor cross section AWG | 24 ... 16 |
Width | 6.2 mm | Height | 93 mm |
Depth | 66 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V2 (Housing) | Ambient temperature (operation) | -40 °C ... 85 °C (Depends on application/assembly) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
