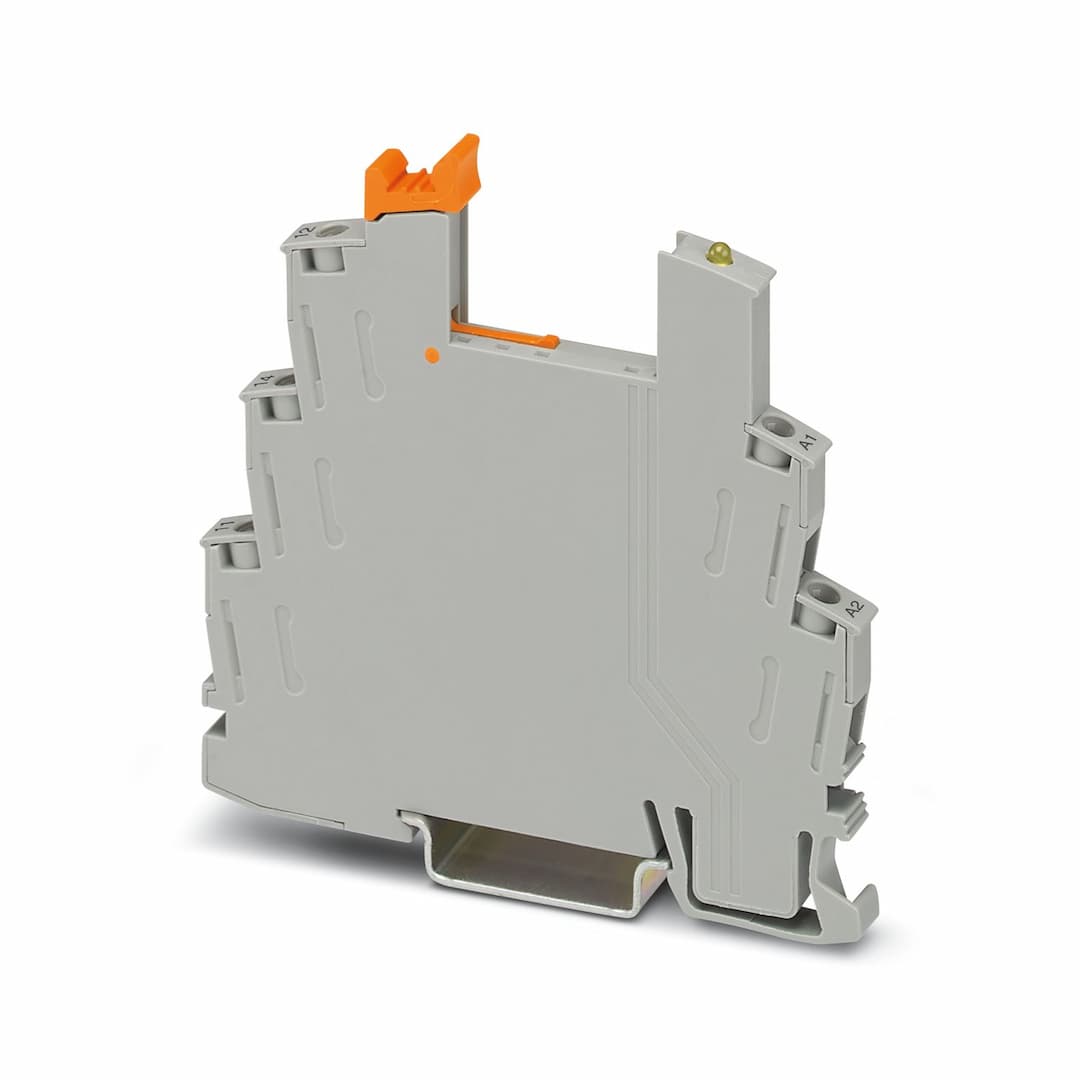

Phoenix Contact RIF-0-BSC/21 Relay Socket - 250V AC/DC, DIN Rail Mounting

Selling Points

1Reliable and Versatile Socket: Designed for various relay configurations in industrial and control panel applications.
2DIN Rail Compatibility: Easy integration into electrical systems with DIN rail mounting.
3High Voltage Rating: Compatible with 250V AC/DC, ensuring secure relay installations.
4Gray Color for Easy Identification: Enhances visibility in complex electrical systems.
530-Day Returns Policy: Secure your purchase with a hassle-free return policy.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Relay socket	Product family	RIFLINE complete
Article revision	03	Nominal voltage U	250 V AC/DC (Contact side)
Nominal current I	max. 8 A (Depends on application/assembly)	Protective circuit	Freewheeling diode
Input voltage range	12 V DC ... 24 V DC	Connection method	Screw connection
Stripping length	7 mm	Conductor cross section rigid	0.5 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section)	0.5 mm² ... 1.5 mm²	Conductor cross section flexible	0.5 mm² ... 2.5 mm² 0.5 mm² ... 2.5 mm² (Ferrule without plastic sleeve) 0.5 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)	0.5 mm² ... 1.5 mm² 0.5 mm² ... 1 mm² (TWIN ferrule with plastic sleeve)	Conductor cross section AWG	20 ... 12 (solid) 20 ... 14 (flexible)
Tightening torque	0.5 Nm ... 0.6 Nm	Width	6.2 mm
Height	84 mm	Depth	82 mm
Color	gray (RAL 7042)	Flammability rating according to UL 94	V2 (Housing)
Ambient temperature (operation)	-40 °C ... 85 °C (Depends on application/assembly)	Ambient temperature (storage/transport)	-40 °C ... 85 °C
Identification	ISA-S71.04. G3 Harsh Group EN 60068-2-60	Mounting type	DIN rail mounting
Assembly note	in rows with zero spacing	Mounting position	any

Specifications may be subject to change without notice
