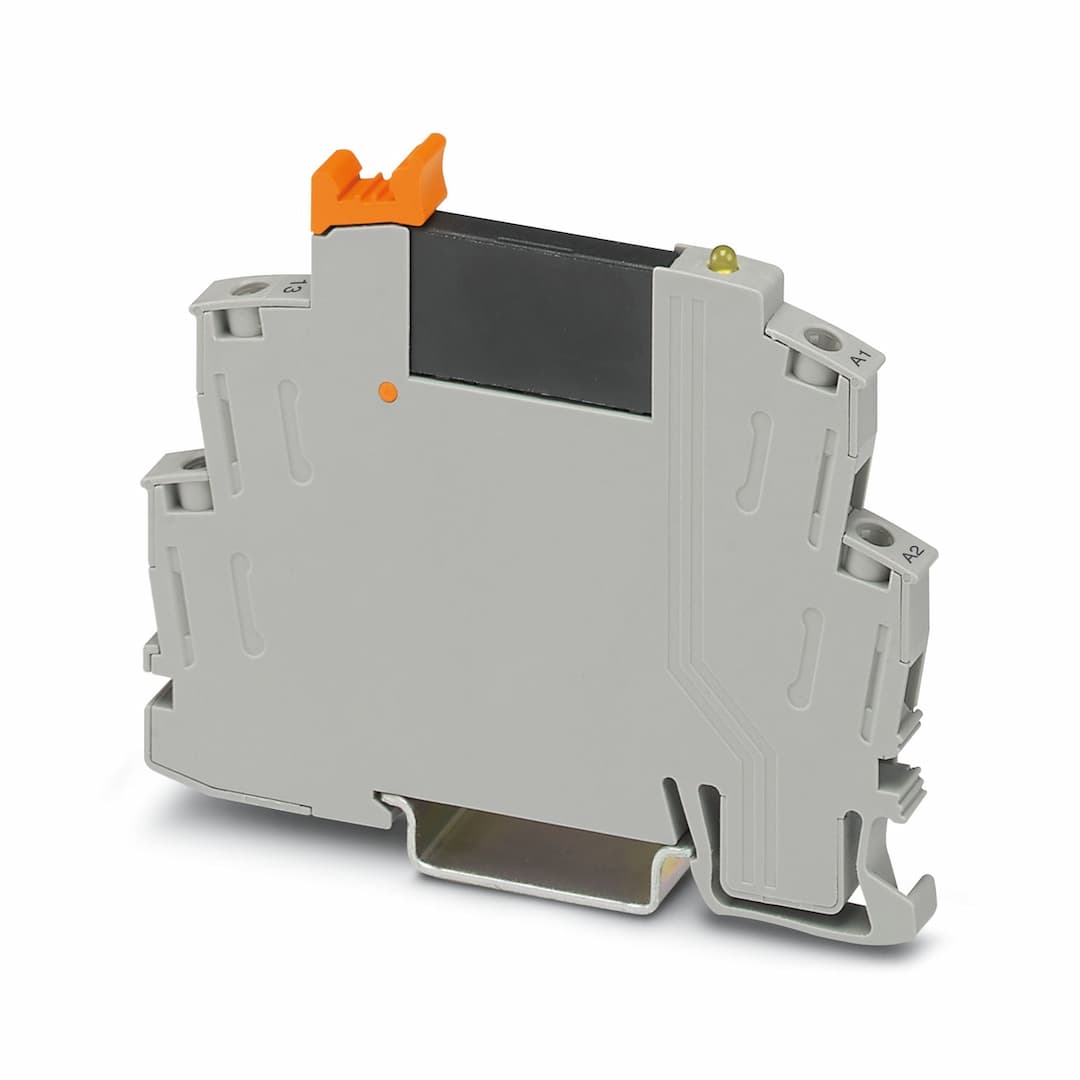

Product Model
RIF-0-OSC-24DC/24DC/2
Selling Points
- 1DIN Rail Mounting: Easily integrates into your system using DIN rail NS 35/7.5.
- 2High Switching Power: Handles high current with a maximum inrush current of 15A (10ms).
- 3Efficient Connection: Features screw connection for secure and efficient system cabling.
- 4Wide Operating Temperature Range: Operates between -25°C and +60°C, ensuring reliability in various environments.
- 5IP20 Relay Base: Meets IP20 standards for protection against solid particles, making it suitable for industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solid-state relay module | Product family | RIFLINE complete |
Application | Universal | Operating mode | 100% operating factor |
Date of last data management | 10.06.2024 | Article revision | 03 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.2 W |
Test voltage (Input/output) | 2.5 kV | Rated insulation voltage | 250 V AC |
Rated surge voltage | 4 kV | Rated actuating voltage U | 24 V DC |
Voltage range with reference to U | 0.8 ... 1.2 | Rated actuating current I | 8.5 mA |
Input voltage range | 19.2 V DC ... 28.8 V DC | "0" signal switching threshold in reference to U | < 0.4 |
"1" signal switching threshold in reference to U | > 0.8 | Typical response time | 20 µs |
Typical turn-off time | 300 µs | Status display | LED (yellow) |
Protective circuit | Freewheeling diode | Transmission frequency | 300 Hz |
Contact switching type | 1 N/O contact | Design of digital output | electronic |
Output voltage range | 3 V DC ... 33 V DC | Limiting continuous current | 3 A (see derating curve) |
Maximum inrush current | 15 A (10 ms) | Surge voltage protection | > 33 V |
Voltage drop at max. limiting continuous current | < 200 mV | Output circuit | 2-conductor, floating |
Protective circuit | Reverse polarity protection
Surge protection | Utilization category CB Scheme (IEC 60947-5-1) | DC12, 3 A/24 V |
Connection method | Screw connection | Stripping length | 7 mm |
Conductor cross section rigid | 0.5 mm² ... 4 mm² | Conductor cross-section rigid (2 conductors with same cross section) | 0.5 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.5 mm² ... 2.5 mm²
0.5 mm² ... 2.5 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 1.5 mm² (Ferrule with plastic sleeve) | Conductor cross section flexible (2 conductors with same cross section) | 0.5 mm² ... 1.5 mm²
0.5 mm² ... 1 mm² (TWIN ferrule with plastic sleeve) |
Conductor cross section AWG | 20 ... 12 (solid)
20 ... 14 (flexible) | Tightening torque | 0.5 Nm ... 0.6 Nm |
Width | 6.2 mm | Height | 84 mm |
Depth | 68 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V2 (Housing) | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Standards/regulations | DIN EN 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
