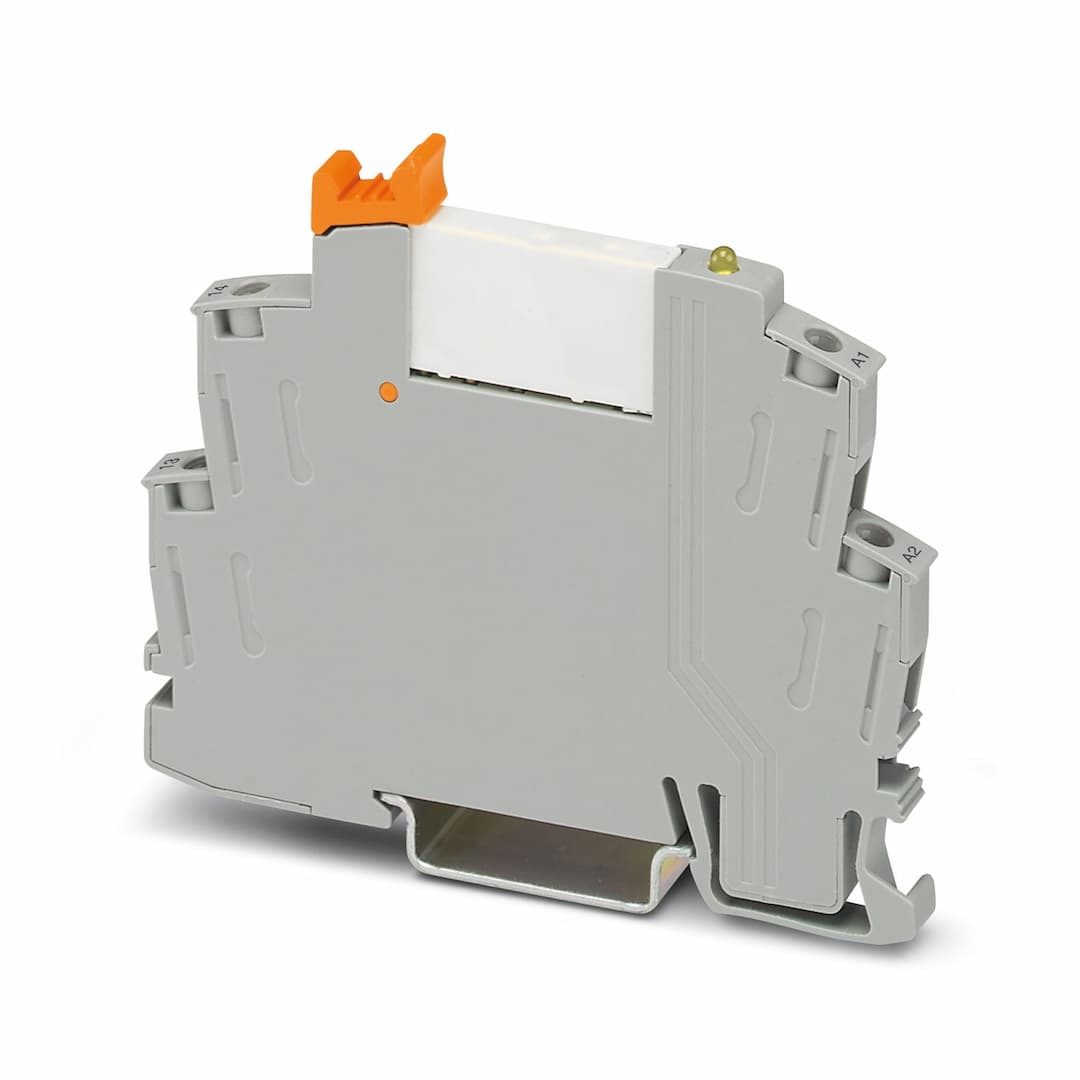

Product Model
RIF-0-RSC-24DC/ 1AU
Selling Points
- 1Supports up to 3A at 230V AC and 1A at 24V DC.
- 2AgSnO, hard gold-plated contacts ensure reliable switching.
- 3Dimensions: 6.2mm x 84mm x 68mm, perfect for DIN rail mounting.
- 4Typical response time of 5ms and release time of 8ms.
- 5Meets EMC class A standards, ensuring safe operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | RIFLINE complete |
Application | Universal | Operating mode | 100% operating factor |
Mechanical service life | approx. 2x 10 | Date of last data management | 09.08.2024 |
Article revision | 03 | Insulation | safe isolation |
Overvoltage category | III | Pollution degree | 2 |
Service life electrical | see diagram | Maximum power dissipation for nominal condition | 0.22 W |
Test voltage (Winding/contact) | 4 kV | Rated insulation voltage | 250 V AC |
Rated surge voltage | 6 kV | Nominal input voltage U | 24 V DC |
Input voltage range | 19.2 V DC ... 36 V DC (20 °C) | Input voltage range in reference to U | see diagram |
Drive and function | monostable | Drive (polarity) | polarized |
Typical input current at U | 9 mA | Typical response time | 5 ms |
Typical release time | 8 ms | Coil voltage | 24 V DC |
Protective circuit | Freewheeling diode | Operating voltage display | Yellow LED |
Contact switching type | 1 N/O contact | Type of switch contact | Single contact |
Contact material | AgSnO, hard gold-plated | Maximum switching voltage | 30 V AC
36 V DC |
Minimum switching voltage | 100 mV (10 mA) | Limiting continuous current | 50 mA |
Maximum inrush current | 50 mA | Min. switching current | 1 mA (12 V) |
Interrupting rating (ohmic load) max. | 1.2 W (24 V DC) | Utilization category CB Scheme (IEC 60947-5-1) | AC15, 3 A/250 V (N/O contact)
AC15, 1 A/250 V (N/C contact)
DC13, 1.5 A/24 V (N/O contact)
DC13, 0.2 A/110 V (N/O contact)
DC13, 0.1 A/220 V (N/O contact) |
Note | — | Contact material | AgSnO |
Maximum switching voltage | 250 V AC/DC | Minimum switching voltage | 5 V (at 100 mA) |
Limiting continuous current | 6 A | Min. switching current | 10 mA (at 12 V) |
Interrupting rating (ohmic load) max. | 140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC) | Switching capacity | 2 A (at 24 V, DC13)
0.2 A (at 110 V, DC13)
0.1 A (at 220 V, DC13)
3 A (at 24 V, AC15)
3 A (at 120 V, AC15)
3 A (at 230 V, AC15) |
Connection method | Screw connection | Stripping length | 7 mm |
Conductor cross section rigid | 0.5 mm² ... 4 mm² | Conductor cross-section rigid (2 conductors with same cross section) | 0.5 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.5 mm² ... 2.5 mm²
0.5 mm² ... 2.5 mm² (Ferrule without plastic sleeve)
0.5 mm² ... 1.5 mm² (Ferrule with plastic sleeve) | Conductor cross section flexible (2 conductors with same cross section) | 0.5 mm² ... 1.5 mm²
0.5 mm² ... 1 mm² (TWIN ferrule with plastic sleeve) |
Conductor cross section AWG | 20 ... 12 (solid)
20 ... 14 (flexible) | Tightening torque | 0.5 Nm ... 0.6 Nm |
Width | 6.2 mm | Height | 84 mm |
Depth | 68 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V2 (Housing) | Degree of protection (Relay base) | IP20 (Relay base) |
Degree of protection (Relay) | RT III (Relay) | Ambient temperature (operation) | -40 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
