Product Model

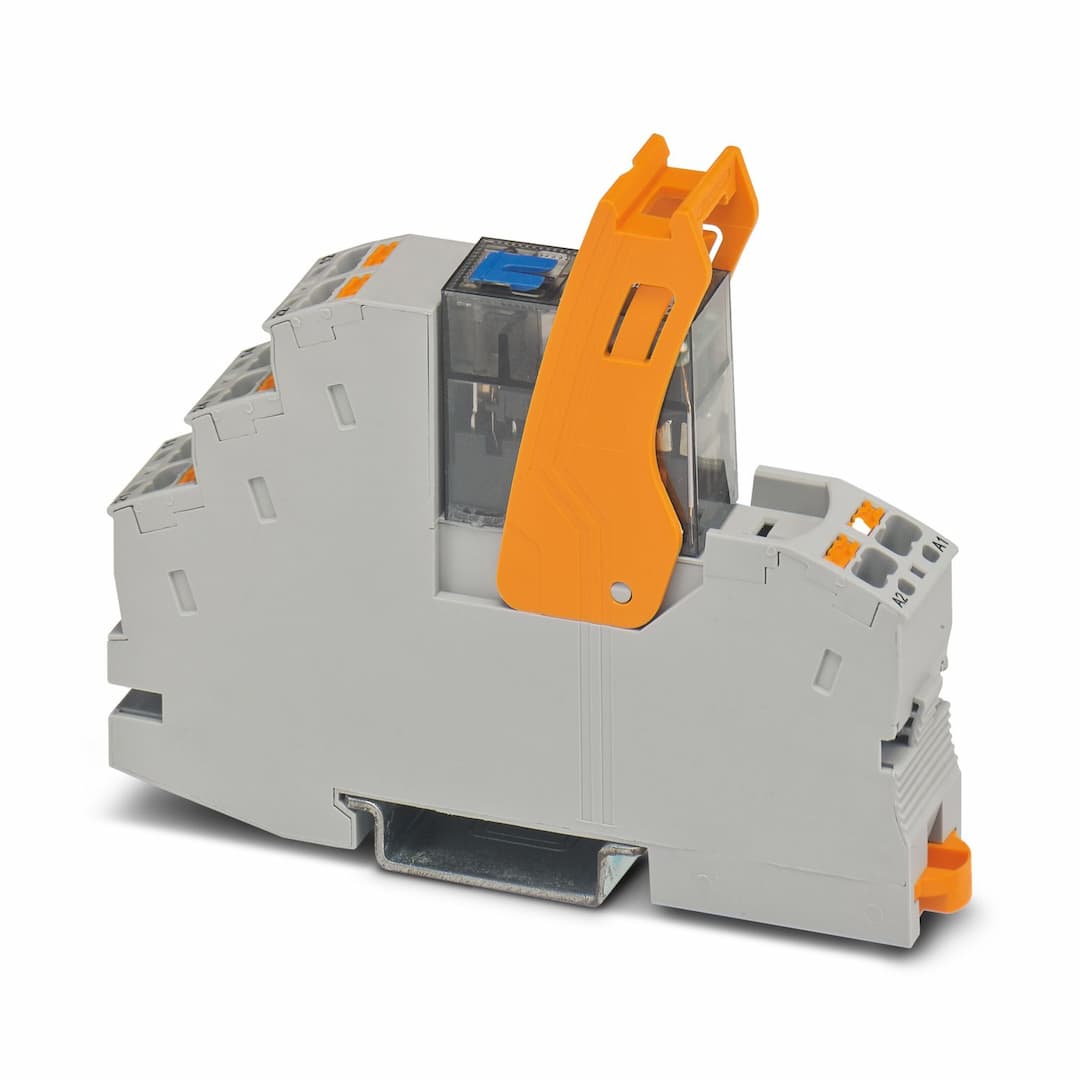

RIF-1-RPT-LDP-24DC/1X21MS
Selling Points
- 1Ensures long-lasting performance with a mechanical service life of approximately 5x 10^6 cycles.
- 2Supports up to 250 V AC/DC, making it versatile for various applications.
- 3Operates at a nominal input voltage of 24 V DC with a maximum power dissipation of 0.43 W.
- 4Features a typical response time of 9 ms and release time of 10 ms for quick switching.
- 5Equipped with a freewheeling diode for protective circuitry and a yellow LED for operating voltage display.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | RIFLINE complete |
Application | Universal
Palm switch | Operating mode | 100% operating factor |
Mechanical service life | approx. 5x 10 | Date of last data management | 15.10.2024 |
Article revision | 06 | Insulation | Safe isolation between input and output
Basic insulation between the changeover contacts |
Overvoltage category | III | Pollution degree | 2 |
Service life electrical | see diagram | Maximum power dissipation for nominal condition | 0.43 W |
Test voltage (Winding/contact) | 4 kV | Rated insulation voltage | 250 V AC |
Rated surge voltage | 6 kV (Input/output)
4 kV (between the changeover contacts) | Nominal input voltage U | 24 V DC |
Input voltage range | 19.2 V DC ... 30 V DC (20 °C) | Input voltage range in reference to U | see diagram |
Drive and function | monostable | Drive (polarity) | polarized |
Typical input current at U | 18 mA | Typical response time | 9 ms |
Typical release time | 10 ms | Coil voltage | 24 V DC |
Protective circuit | Freewheeling diode | Operating voltage display | Yellow LED |
Contact switching type | 1 changeover contact | Type of switch contact | Single contact |
Contact material | AgNi | Maximum switching voltage | 250 V AC/DC |
Minimum switching voltage | 12 V (10 mA) | Limiting continuous current | 11 A (see diagram) |
Maximum inrush current | 24 A (20 ms, N/O contacts) | Min. switching current | 10 mA (12 V) |
Interrupting rating (ohmic load) max. | 264 W (24 V DC)
62 W (48 V DC)
48 W (60 V DC)
52 W (110 V DC)
66 W (220 V DC)
2500 VA (250 V AC) | Switching capacity min. | 120 mW |
Utilization category CB Scheme (IEC 60947-5-1) | AC15, 3 A/250 V (N/O contact)
DC13, 2 A/24 V (N/O contact) | Connection method | Push-in connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) | Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) |
Diameter | 3.2 mm | Width | 16 mm |
Height | 96 mm | Depth | 75 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V2 (Housing) |
Degree of protection (Relay base) | IP20 (Relay base) | Degree of protection (Relay) | RT II (Relay) |
Ambient temperature (operation) | -40 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Standards/regulations | IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
