Product Model

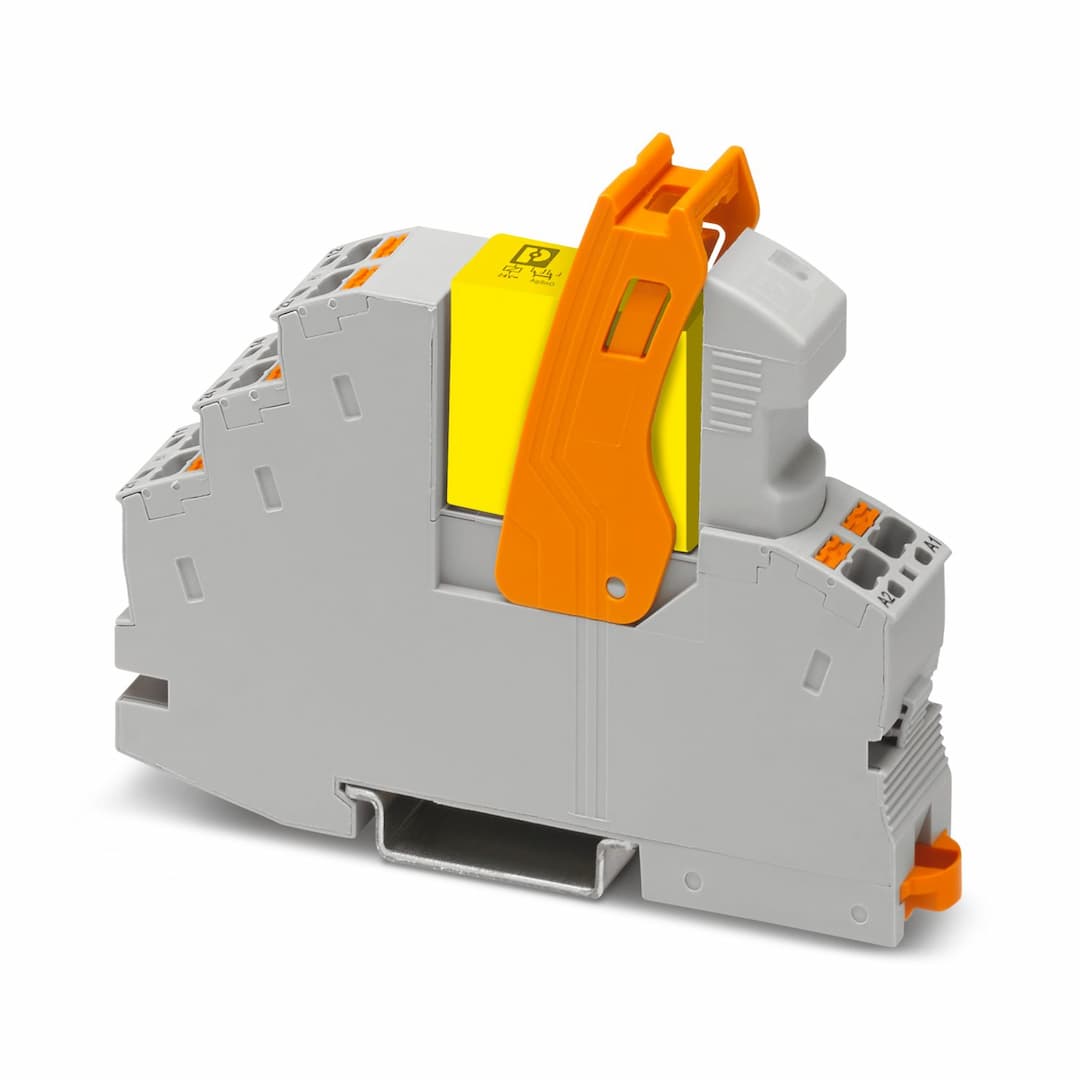

RIF-1-RPT-LDP-24DC/2X21/FG
Selling Points
- 1Preassembled with Push-in Connection: Easy to integrate into your industrial control systems.
- 2Force-Guided Contacts: Ensures safe and reliable switching in accordance with DIN EN 50205.
- 324V DC Input Voltage: Compatible with a wide range of industrial control systems.
- 4High Mechanical Service Life: Approximate 10,700 cycles for durable performance.
- 5Compliant with UL 508: Meets stringent safety standards for industrial control equipment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | RIFLINE complete |
Application | Forcibly guided contacts | Operating mode | 100% operating factor |
Mechanical service life | approx. 10 | B | 600000 Cycles (AC1; 250 V / 6 A; 1 NO)
900000 Cycles (AC1; 250 V / 3 A; 1 NO)
1800000 Cycles (AC1; 250 V / 1,5 A; 1 NO)
300000 Cycles (DC13; 24 V / 3 A; 1 NO)
1000000 Cycles (DC13; 24 V / 1,5 A; 1 NO)
3000000 Cycles (DC13; 24 V / 0,75 A; 1 NO) |
Date of last data management | 13.08.2024 | Article revision | 06 |
Insulation | Safe isolation between input and output
Basic insulation between the changeover contacts | Overvoltage category | III |
Pollution degree | 2 | Maximum power dissipation for nominal condition | 0.72 W |
Test voltage (Winding/contact) | 4 kV | Test voltage () | 1.5 kV |
Test voltage (Changeover contact/changeover contact) | 2.5 kV | Rated insulation voltage | 250 V AC (Input/output) |
Rated surge voltage | 6 kV (Input/output)
4 kV (between the changeover contacts) | Current | 10 A (RT28-32) |
Voltage | 500 V (SCPD) | Short-circuit current | 1 kA (conditional short-circuit current) |
Nominal operating voltage U | 24 V DC | Input voltage range | 20.4 V DC ... 28.8 V DC (20 °C) |
Input voltage range in reference to U | see diagram | Drive and function | monostable |
Drive (polarity) | polarized | Typical input current at U | 30 mA |
Typical response time | 15 ms | Typical release time | 10 ms |
Coil voltage | 24 V DC | Protective circuit | Freewheeling diode |
Operating voltage display | Yellow LED | Contact switching type | 2 changeover contacts, forcibly actuated |
Type of switch contact | Single contact | Contact material | AgSnO |
Maximum switching voltage | 250 V AC/DC | Limiting continuous current | 6 A |
Interrupting rating (ohmic load) max. | 144 W (24 V DC)
58 W (48 V DC)
54 W (60 V DC)
55 W (110 V DC)
55 W (220 V DC)
1500 VA (250 V AC) | Utilization category CB Scheme (IEC 60947-5-1) | AC15, 3 A/240 V (N/O contact) |
Connection method | Push-in connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) |
Conductor cross section AWG | 26 ... 16 | Diameter | 3.2 mm |
Width | 16 mm | Height | 96 mm |
Depth | 70 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V2 (Housing) | Degree of protection (Relay base) | IP20 (Relay base) |
Degree of protection (Relay) | RT I (Relay) | Ambient temperature (operation) | -25 °C ... 60 °C |
Ambient temperature (storage/transport) | -25 °C ... 85 °C | Altitude | ≤ 2000 m |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Identification | cULus Listed UL 508 | Certificate | NRNT.E172140 |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Standards/regulations | IEC 60947-5-1
IEC 61810-3 |
Standards/regulations | DIN EN 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
