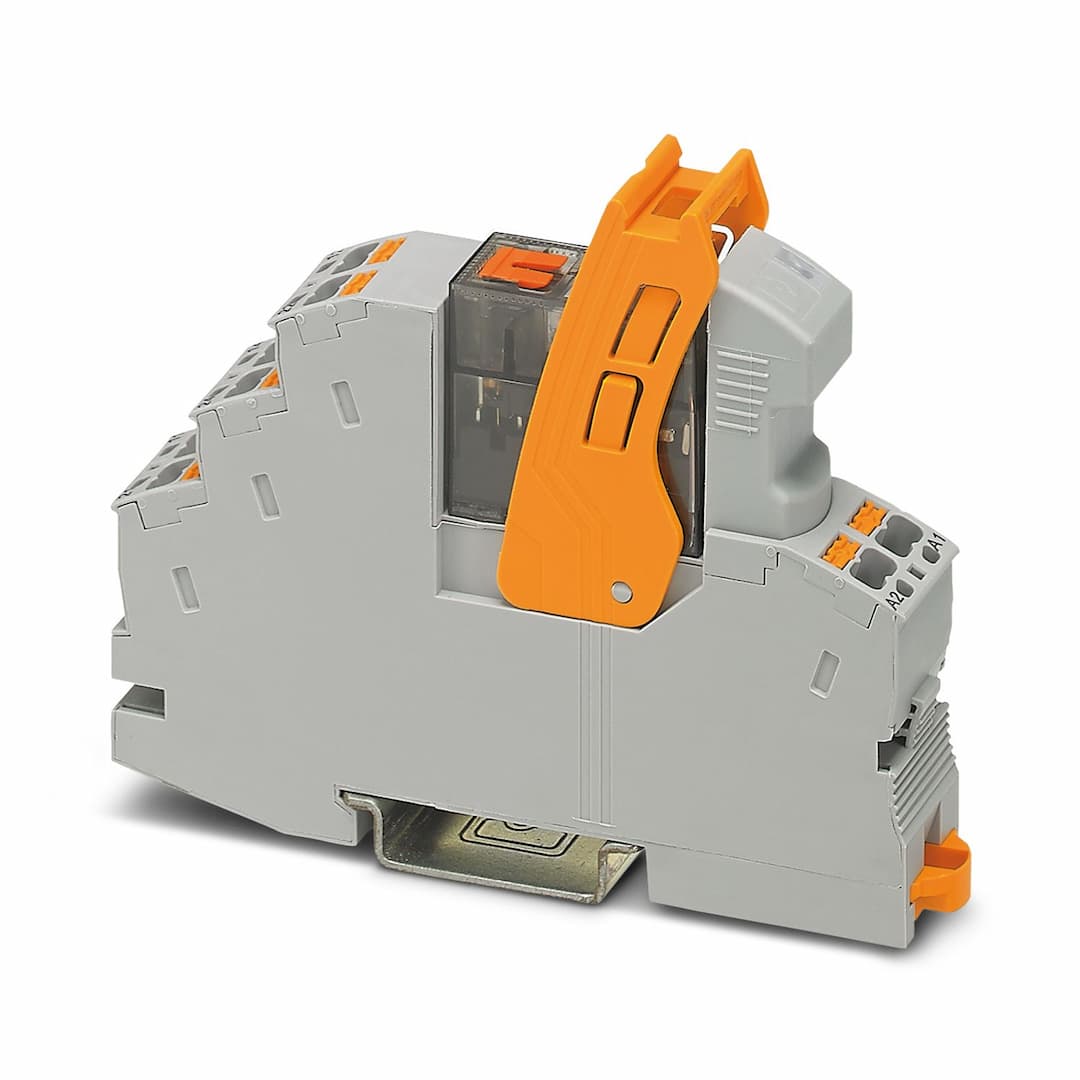

Product Model
RIF-1-RPT-LV-24AC/2X21MS
Selling Points
- 1Reliable 24V AC Input: Operates on 24V AC with a voltage range of 19.2V AC to 27.6V AC.
- 2Safe Isolation: Ensures safe isolation between input and output with basic insulation between changeover contacts.
- 3High Switching Capacity: Supports up to 2000VA for 250V AC and 8A continuous current.
- 4Fast Response Time: Offers a typical response time of 3ms to 12ms and release time of 3ms to 20ms.
- 5Durable Construction: Meets UL 508 standards and has a flammability rating of UL 94 V2, ensuring long service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | FBS 2-6... plug-in bridge for the input side (A2) and FBS-2-8... plug-in bridge for the output side (11/21) | Product type | Relay Module |
Product family | RIFLINE complete | Application | Universal
Palm switch |
Operating mode | 100% operating factor | Mechanical service life | approx. 10 |
Date of last data management | 22.10.2024 | Article revision | 05 |
Insulation | Safe isolation between input and output
Basic insulation between the changeover contacts | Overvoltage category | III |
Pollution degree | 2 | Service life electrical | see diagram |
Maximum power dissipation for nominal condition | 0.8 W | Test voltage (Winding/contact) | 4 kV |
Test voltage (Changeover contact/changeover contact) | 2.5 kV | Rated insulation voltage | 250 V AC |
Rated surge voltage | 6 kV (Input/output)
4 kV (between the changeover contacts) | Nominal input voltage U | 24 V AC |
Input voltage range | 19.2 V AC ... 27.6 V AC (20 °C) | Input voltage range in reference to U | see diagram |
Mains frequency | 50/60 Hz | Drive and function | monostable |
Drive (polarity) | polarized | Typical input current at U | 32 mA |
Typical response time | 3 ms ... 12 ms | Typical release time range | 3 ms ... 20 ms |
Coil voltage | 24 V AC | Protective circuit | Varistor |
Operating voltage display | Yellow LED | Contact switching type | 2 changeover contacts |
Type of switch contact | Single contact | Contact material | AgNi |
Maximum switching voltage | 250 V AC/DC | Minimum switching voltage | 5 V (10 mA) |
Limiting continuous current | 8 A (see diagram) | Maximum inrush current | 12 A (20 ms, N/O contacts) |
Min. switching current | 10 mA (5 V) | Interrupting rating (ohmic load) max. | 192 W (at 24 V DC)
124 W (at 48 V DC)
60 W (at 60 V DC)
44 W (at 110 V DC)
57 W (at 220 V DC)
2000 VA (for 250 V AC) |
Utilization category CB Scheme (IEC 60947-5-1) | AC15, 1.5 A/250 V (N/O contact)
DC13, 1 A/24 V (N/O contact) | Connection method | Push-in connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) | Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) |
Diameter | 3.2 mm | Width | 16 mm |
Height | 96 mm | Depth | 75 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V2 (Housing) |
Degree of protection (Relay) | RT III (Relay) | Degree of protection (Relay base) | IP20 (Relay base) |
Ambient temperature (operation) | -40 °C ... 50 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Standards/regulations | IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
