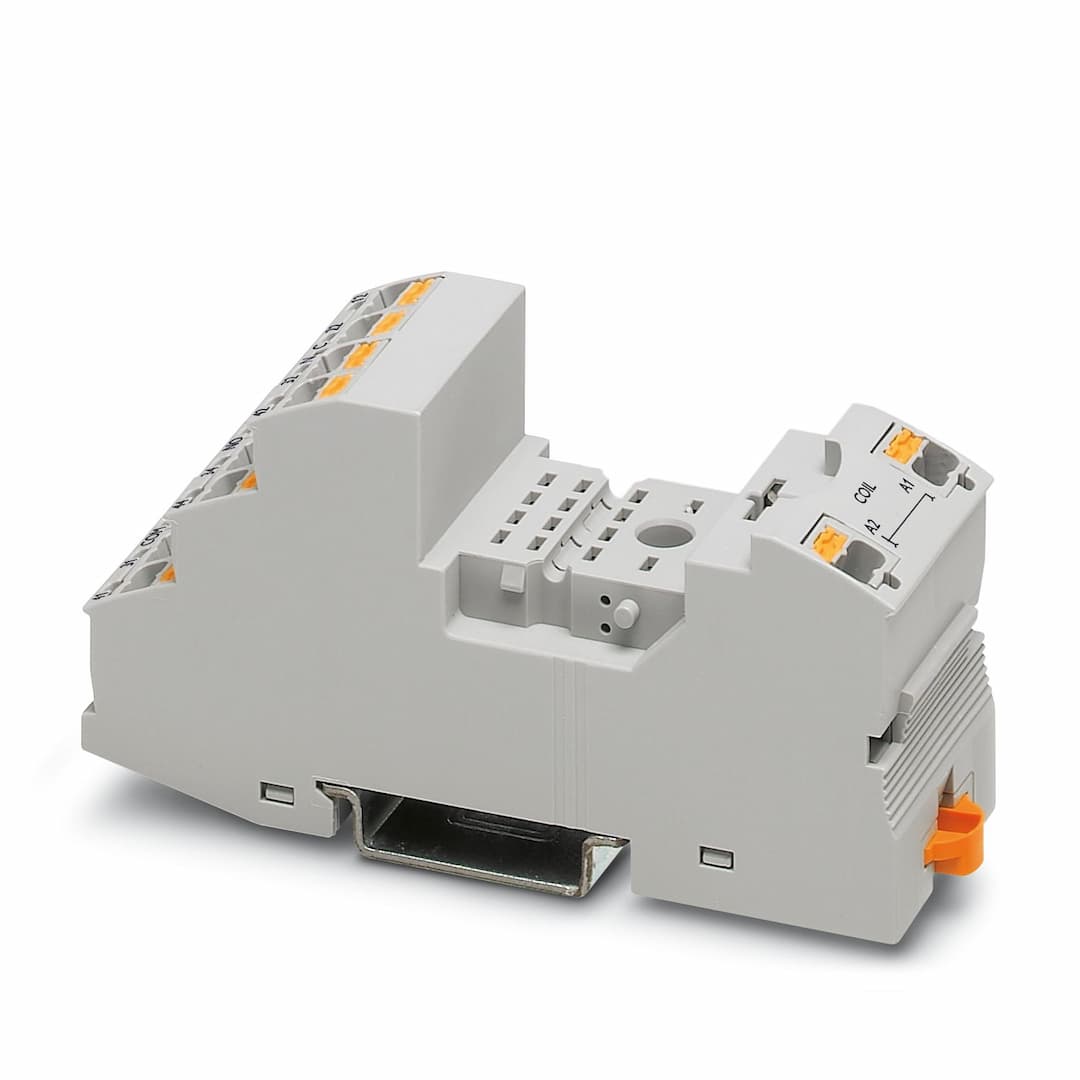

Product Model
RIF-2-BPT/4X21/EX
Selling Points
- 1Designed for robust industrial use with high ambient temperature tolerance.
- 2Supports solid, flexible, and AWG conductors (0.14 mm² to 1.5 mm²).
- 3Easy and secure connections with a stripping length of 8 mm.
- 4Approved for use in zone 2 and Ex zone class I, div. 2 environments.
- 5Dimensions: 31 mm width, 96 mm height, and 75 mm depth with retaining bracket.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay socket | Product family | RIFLINE complete |
Article revision | 03 | Nominal voltage U | 250 V AC/DC |
Nominal current I | 4x 6 A | Protective circuit | depending on the selected input/suppressor modules |
Connection method | Push-in connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) |
Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) | Width | 31 mm |
Height | 96 mm | Depth Retaining bracket | 75 mm (with retaining bracket) |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V2 (Housing) |
Ambient temperature (operation) | -40 °C ... 60 °C (Related to the assembly) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Mounting type | DIN rail mounting |
Mounting position | any |
Specifications may be subject to change without notice
