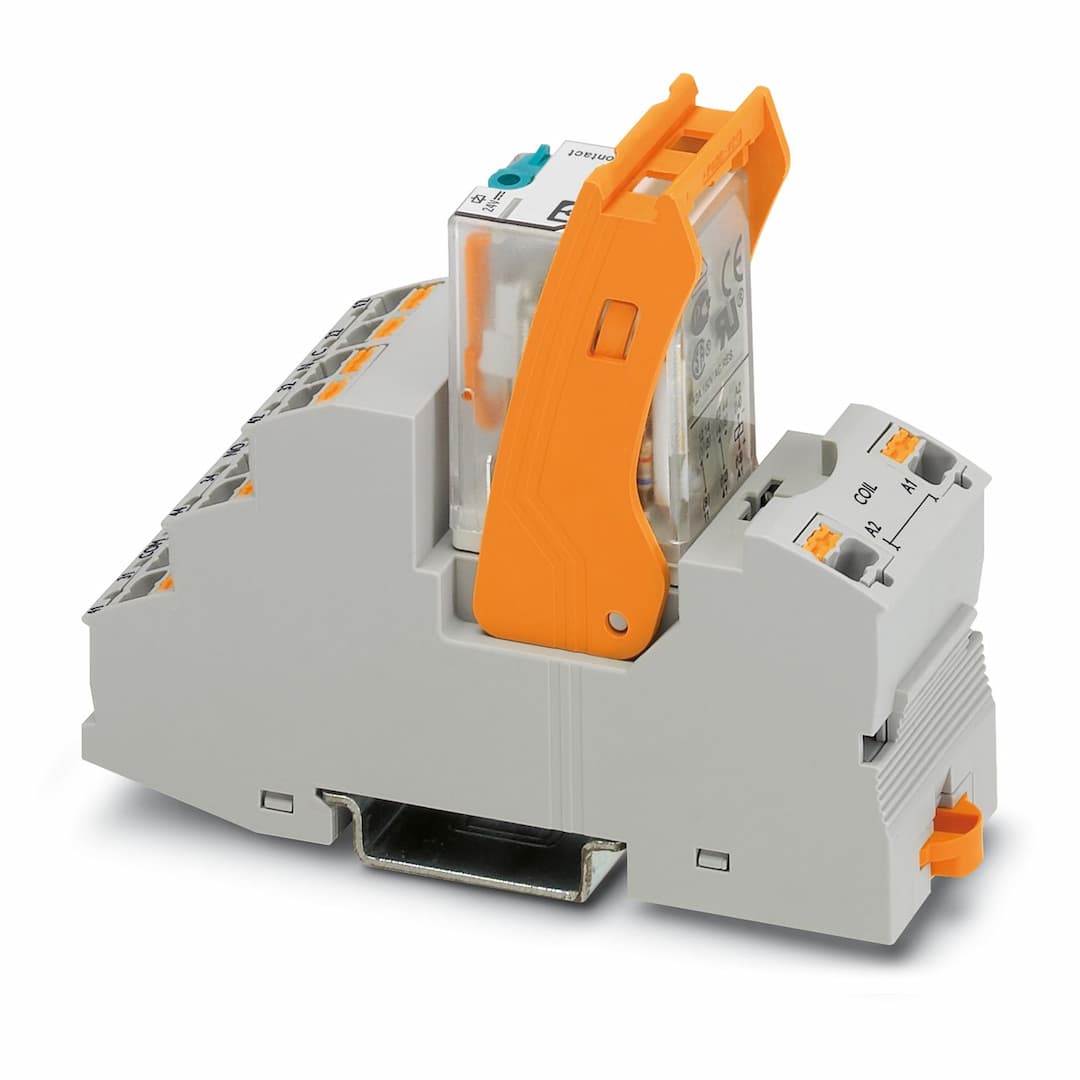

Product Model
RIF-2-RPT-LDP-24DC/2X21
Selling Points
- 1High Reliability: Designed for industrial use with a mechanical service life of approximately 2 x 10^7 cycles.
- 2Versatile Connectivity: Equipped with push-in connections for easy installation and maintenance.
- 3Wide Operating Range: Operates between -40°C to 60°C ambient temperature, making it suitable for various environments.
- 4Advanced Safety Features: Includes a damping diode for protective circuitry and a yellow LED for operating voltage display.
- 5High Switching Capacity: Can handle up to 2500 VA for 250V AC and 240W for 24V DC, ensuring reliable switching operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | RIFLINE complete |
Application | Universal | Operating mode | 100% operating factor |
Mechanical service life | approx. 2x 10 | Date of last data management | 22.08.2024 |
Article revision | 08 | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 2 (Rated voltage of 230/400 V) |
Maximum power dissipation for nominal condition | 1.01 W | Test voltage (Winding/contact) | 2.5 kV |
Test voltage (Contact/contact) | 2.5 kV | Rated insulation voltage | 250 V AC |
Rated surge voltage | 4 kV | Nominal input voltage U | 24 V DC |
Input voltage range | 19.2 V DC ... 30 V DC (20 °C) | Input voltage range in reference to U | see diagram |
Drive and function | monostable | Drive (polarity) | polarized |
Typical input current at U | 42 mA | Typical response time | 13 ms |
Typical release time | 14 ms | Coil voltage | 24 V DC |
Protective circuit | Freewheeling diode | Operating voltage display | Yellow LED |
Contact switching type | 2 changeover contacts | Type of switch contact | Single contact |
Contact material | AgNi | Maximum switching voltage | 250 V AC/DC |
Minimum switching voltage | 5 V (24 mA) | Limiting continuous current | 10 A (see diagram) |
Maximum inrush current | 30 A (20 ms, N/O contacts) | Min. switching current | 5 mA (24 V) |
Interrupting rating (ohmic load) max. | 240 W (at 24 V DC)
124 W (at 48 V DC)
108 W (at 60 V DC)
52 W (at 110 V DC)
48 W (at 220 V DC)
2500 VA (for 250 V AC) | Switching capacity | 2 A (at 24 V, DC13)
0.22 A (at 120 V, DC13)
0.11 A (at 250 V, DC13)
3 A (at 120 V, AC15)
1.5 A (at 240 V, AC15) |
Connection method | Push-in connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) |
Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) | Diameter | 3.2 mm |
Width | 31 mm | Height | 96 mm |
Depth | 75 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V2 (Housing) | Degree of protection (Relay base) | IP20 (Relay base) |
Degree of protection (Relay) | RT I (Relay) | Ambient temperature (operation) | -40 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
