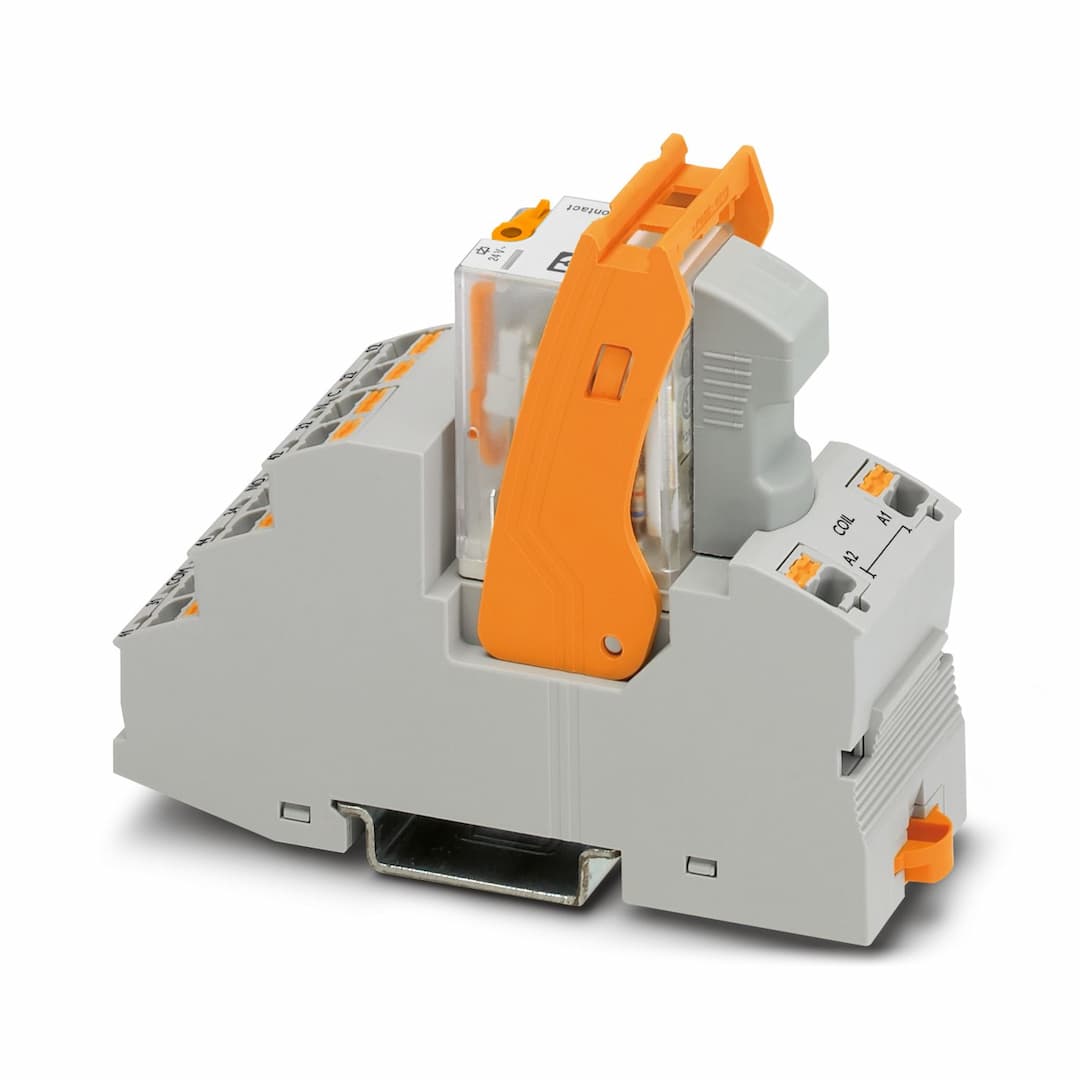

Product Model
RIF-2-RPT-LV-24AC/2X21
Selling Points
- 1High Frequency Compatibility: Supports both 50 Hz and 60 Hz mains frequencies.
- 2Monostable Drive: Ensures stable and reliable operation with a monostable drive mechanism.
- 3Polarized Polarity: Simplifies installation with polarized polarity for easy connection.
- 4Low Input Current: Typical input current is 66 mA, reducing power consumption.
- 5Fast Response Time: Offers a typical response time of 5 ms to 15 ms for quick switching.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | RIFLINE complete |
Application | Universal | Operating mode | 100% operating factor |
Mechanical service life | approx. 2x 10 | Date of last data management | 22.08.2024 |
Article revision | 08 | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 2 (Rated voltage of 230/400 V) |
Maximum power dissipation for nominal condition | 1.58 W | Test voltage (Winding/contact) | 2.5 kV |
Test voltage (Contact/contact) | 2.5 kV | Rated insulation voltage | 250 V AC |
Rated surge voltage | 4 kV | Nominal input voltage U | 24 V AC |
Input voltage range | 19.2 V AC ... 28.8 V AC (20 °C) | Input voltage range in reference to U | see diagram |
Mains frequency | 50/60 Hz | Drive and function | monostable |
Drive (polarity) | polarized | Typical input current at U | 66 mA |
Typical response time | 5 ms ... 15 ms | Typical release time range | 5 ms ... 20 ms |
Coil voltage | 24 V AC | Protective circuit | Varistor |
Operating voltage display | Yellow LED | Contact switching type | 2 changeover contacts |
Type of switch contact | Single contact | Contact material | AgNi |
Maximum switching voltage | 250 V AC/DC | Minimum switching voltage | 5 V (24 mA) |
Limiting continuous current | 8.5 A (see diagram) | Maximum inrush current | 30 A (20 ms, N/O contacts) |
Min. switching current | 5 mA (24 V) | Interrupting rating (ohmic load) max. | 204 W (at 24 V DC)
124 W (at 48 V DC)
108 W (at 60 V DC)
52 W (at 110 V DC)
48 W (at 220 V DC)
2125 VA (for 250 V AC) |
Switching capacity | 2 A (at 24 V, DC13)
0.22 A (at 120 V, DC13)
0.11 A (at 250 V, DC13)
3 A (at 120 V, AC15)
1.5 A (at 240 V, AC15) | Connection method | Push-in connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) | Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) |
Diameter | 3.2 mm | Width | 31 mm |
Height | 96 mm | Depth | 75 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V2 (Housing) |
Degree of protection (Relay base) | IP20 (Relay base) | Degree of protection (Relay) | RT I (Relay) |
Ambient temperature (operation) | -40 °C ... 50 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Standards/regulations | IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
