Product Model

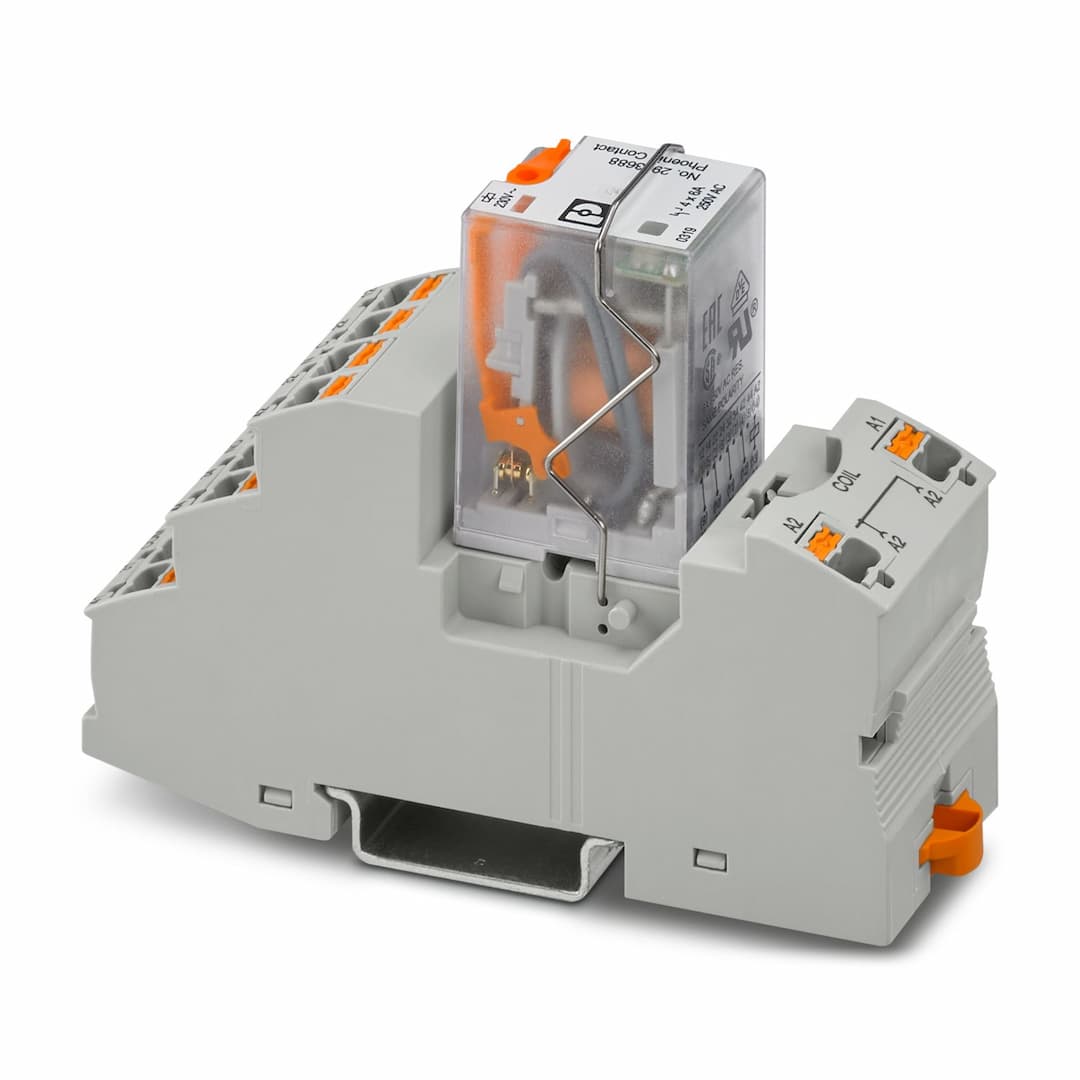

RIF-2-RPT-MH-L-230AC/4X21
Selling Points
- 1Preassembled relay module with Push-in connection for easy installation.
- 2Consists of relay base, power contact relay, and metal retaining bracket.
- 3Switch contact type: 4 PDTs with single contact material (AgNi).
- 4Maximum switching voltage: 250 V AC/DC, suitable for various applications.
- 5Recognized and approved in accordance with UL 508 for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | RIFLINE complete |
Application | Universal | Operating mode | 100% operating factor |
Mechanical service life | approx. 2x 10 | Date of last data management | 22.08.2024 |
Article revision | 03 | Insulation | Basic insulation |
Overvoltage category | II | Pollution degree | 2 |
Service life electrical | see diagram | Maximum power dissipation for nominal condition | 1.5 W |
Test voltage (Winding/contact) | 2.5 kV | Test voltage (Changeover contact/changeover contact) | 2 kV |
Rated insulation voltage | 250 V AC | Rated surge voltage | 2.5 kV |
Nominal input voltage U | 230 V AC | Input voltage range | 184 V AC ... 276 V AC (20 °C) |
Input voltage range in reference to U | see diagram | Mains frequency | 50/60 Hz |
Drive and function | monostable | Drive (polarity) | polarized |
Typical input current at U | 6.5 mA | Typical response time | 5 ms ... 15 ms |
Typical release time range | 5 ms ... 20 ms | Coil voltage | 230 V AC |
Operating voltage display | Yellow LED | Contact switching type | 4 changeover contacts |
Type of switch contact | Single contact | Contact material | AgNi |
Maximum switching voltage | 250 V AC/DC | Minimum switching voltage | 5 V (24 mA) |
Limiting continuous current | 5 A (20 °C) | Maximum inrush current | 16 A (20 ms, N/O contacts) |
Min. switching current | 5 mA (24 V) | Interrupting rating (ohmic load) max. | 144 W (24 V DC)
124 W (48 V DC)
108 W (60 V DC)
52 W (at 110 V DC)
48 W (220 V DC)
1500 VA (250 V AC) |
Switching capacity min. | 0.12 W | Switching capacity | 2 A (24 V, DC13)
1 A (230 V, AC15) |
Connection method | Push-in connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) |
Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) | Diameter | 3.2 mm |
Width | 31 mm | Height | 96 mm |
Depth | 70 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V2 (Housing) | Degree of protection (Relay) | RT I (Relay) |
Degree of protection (Relay base) | IP20 (Relay base) | Ambient temperature (operation) | -40 °C ... 50 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
