Phoenix Contact RIF-2-RSC-LV-120AC/4X21/EX

Selling Points

  • 1The RIF-2-RSC-LV-120AC/4X21/EX features a typical response time of 5 ms to 15 ms and a typical release time range of 5 ms to 20 ms.
  • 2Certified for use in potentially explosive areas, meeting Zone 2 and Class I, Division 2 standards.
  • 3Basic insulation with an overvoltage category of III and a pollution degree of 2, ensuring reliable operation.
  • 4Mechanical service life of approximately 2x 10^7 cycles, making it suitable for demanding applications.
  • 5Screw connection and compact design for easy integration into various industrial systems.
Product Details

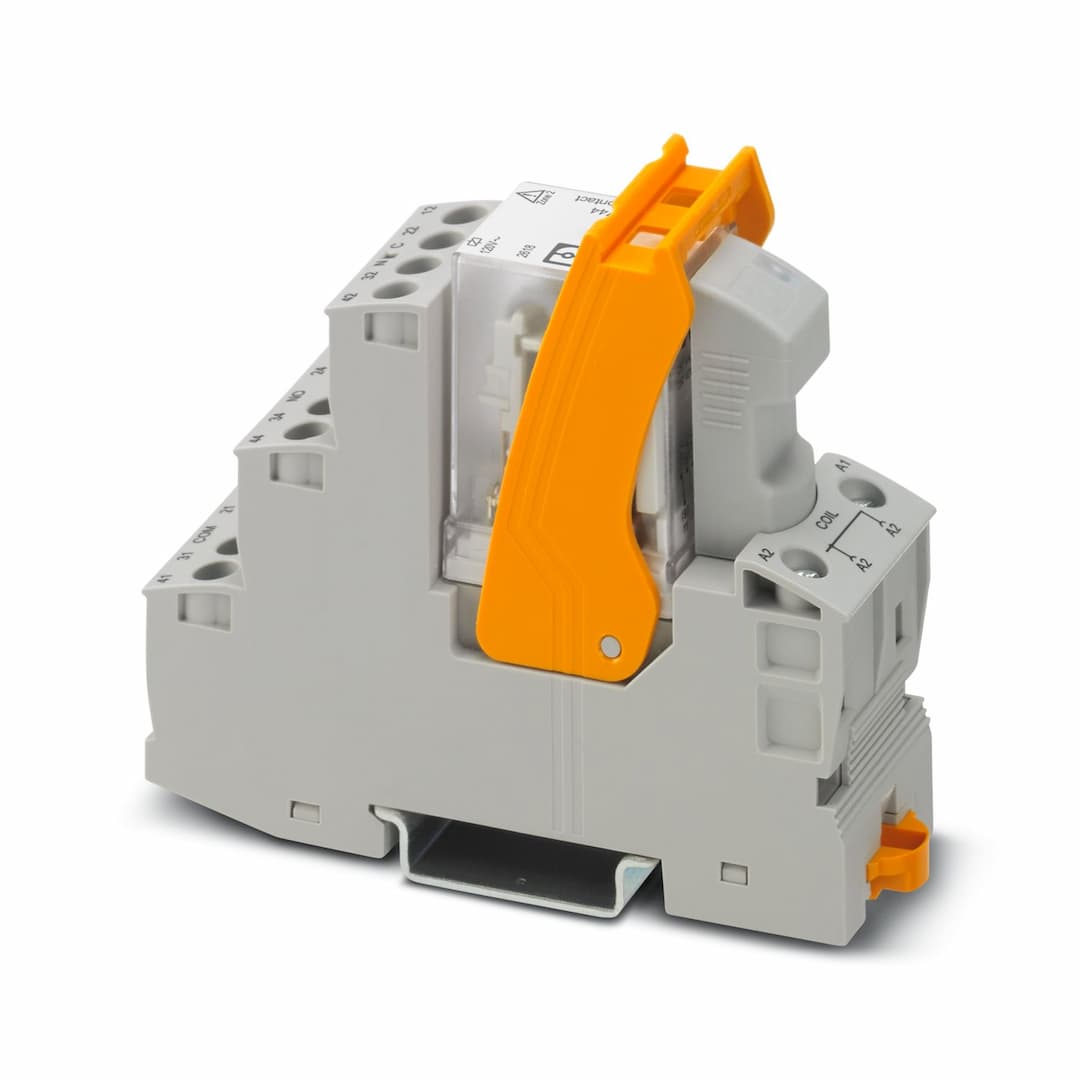

RIF-2-RSC-LV-120AC/4X21/EX
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Relay Module
Product family
RIFLINE complete
Application
Class I, Division 2 potentially explosive areas
Operating mode
100% operating factor
Mechanical service life
approx. 2x 10
Date of last data management
22.08.2024
Article revision
02
Insulation
Basic insulation
Overvoltage category
III II (Zone 2)
Pollution degree
2
Maximum power dissipation for nominal condition
1.7 W
Test voltage (Winding/contact)
2.5 kV
Test voltage (Contact/contact)
2 kV
Rated insulation voltage
250 V AC
Rated surge voltage
2.5 kV
Nominal input voltage U
120 V AC
Input voltage range
96 V AC ... 144 V AC (20 °C)
Input voltage range in reference to U
see diagram
Mains frequency
50/60 Hz
Drive and function
monostable
Drive (polarity)
polarized
Typical input current at U
13 mA
Typical response time
5 ms ... 15 ms
Typical release time range
5 ms ... 20 ms
Coil voltage
120 V AC
Protective circuit
Varistor
Operating voltage display
Yellow LED
Contact switching type
4 changeover contacts
Type of switch contact
Single contact
Contact material
AgNi
Maximum switching voltage
250 V AC/DC
Minimum switching voltage
5 V (24 mA)
Limiting continuous current
5 A (see diagram)
Maximum inrush current
16 A (20 ms, N/O contacts)
Min. switching current
5 mA (24 V)
Interrupting rating (ohmic load) max.
120 W (24 V DC) 124 W (48 V DC) 108 W (60 V DC) 52 W (110 V DC) 48 W (220 V DC) 1250 VA (250 V AC)
Utilization category CB Scheme (IEC 60947-5-1)
AC15, 1 A/240 V (N/O contact) DC13, 2 A/24 V (N/O contact)
Connection method
Screw connection
Stripping length
8 mm
Conductor cross section rigid
0.5 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section)
0.5 mm² ... 2.5 mm²
Conductor cross section flexible
0.5 mm² ... 4 mm² 0.5 mm² ... 4 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)
0.5 mm² ... 2.5 mm² 0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG
20 ... 10 (solid) 20 ... 12 (flexible)
Tightening torque
0.5 Nm ... 0.6 Nm
Width
27 mm
Height
89 mm
Depth
75 mm
Color
gray (RAL 7042)
Flammability rating according to UL 94
V2 (Housing)
Degree of protection (Relay base)
IP20 (Relay base)
Degree of protection (Relay)
RT III (Relay)
Ambient temperature (operation)
-40 °C ... 50 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Identification
 II 3G Ex ec nC IIC T4 Gc
Certificate
IBExU17ATEXB014X
Identification
 II 3G Ex ec nC IIC T4 Gc
Certificate
PxcIF21UKEX2909741X
Identification
Ex ec nC IIC T4 Gc
Certificate
IECEx IBE 17.0032X
Identification
Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, Group IIC
Identification
ISA-S71.04. G3 Harsh Group EN 60068-2-60
Standards/regulations
IEC 60947-5-1
Standards/regulations
EN/IEC 60079-0 EN/IEC 60079-7 EN/IEC 60079-15
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any

Specifications may be subject to change without notice
