Product Model

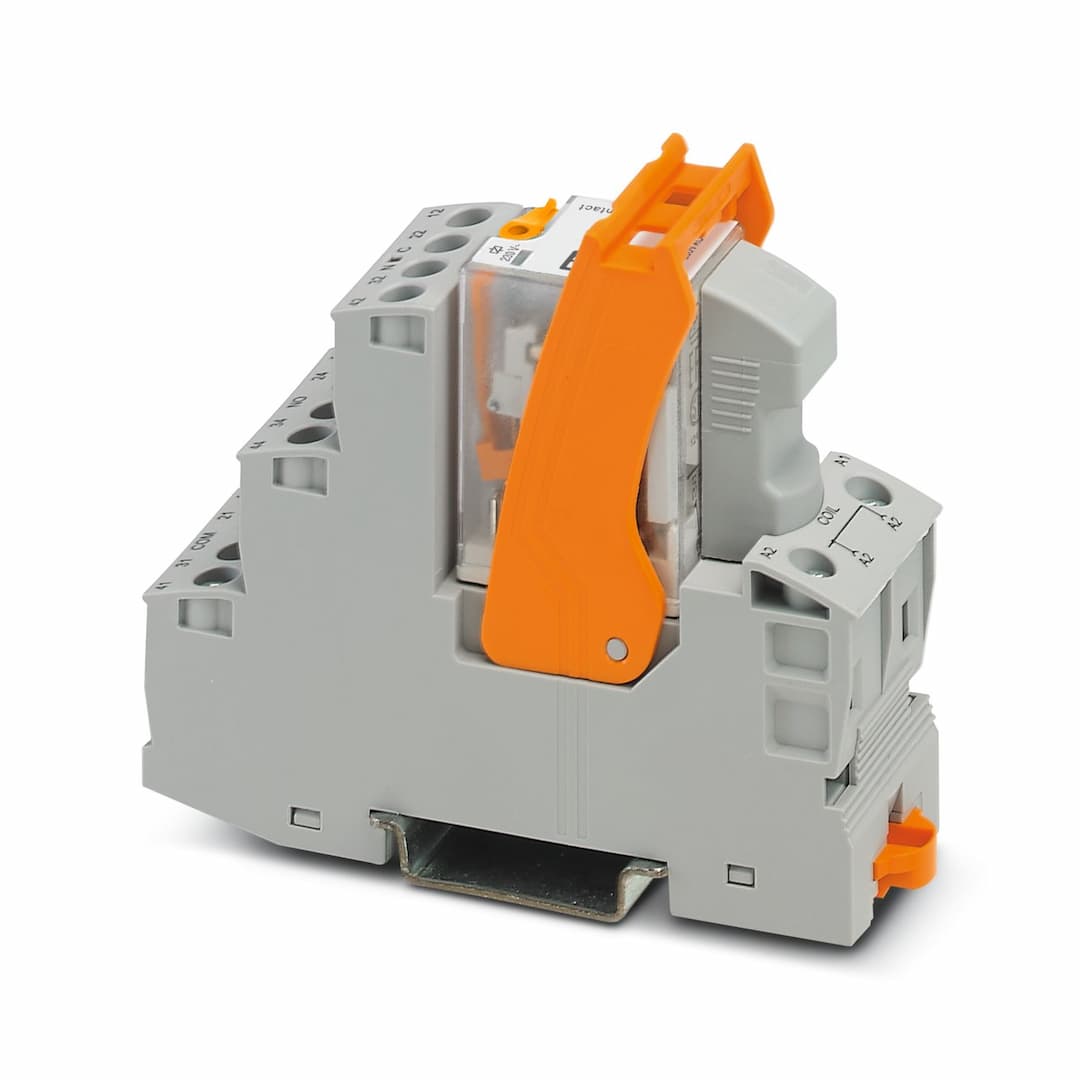

RIF-2-RSC-LV-230AC/2X21
Selling Points
- 1Highly Reliable Operation: Designed for continuous operation in harsh environments with an ambient temperature range of -40°C to 50°C.
- 2Efficient Switching: Fast response time of 5 ms to 15 ms and release time range of 5 ms to 20 ms for quick switching.
- 3Robust Construction: Made with AgNi contacts, ensuring high switching voltage of up to 250 V AC/DC and a maximum inrush current of 30 A.
- 4Versatile Connectivity: Compatible with conductor cross-sections from 0.5 mm² to 4 mm², supporting both solid and flexible conductors.
- 5Durable Design: Mechanical service life of approximately 2x10^7 cycles, ensuring long-lasting performance in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | RIFLINE complete |
Application | Universal | Operating mode | 100% operating factor |
Mechanical service life | approx. 2x 10 | Date of last data management | 22.08.2024 |
Article revision | 04 | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 2 (Rated voltage of 230/400 V) |
Maximum power dissipation for nominal condition | 1.5 W | Test voltage (Winding/contact) | 2.5 kV |
Test voltage (Contact/contact) | 2.5 kV | Rated insulation voltage | 250 V AC |
Rated surge voltage | 4 kV | Nominal input voltage U | 230 V AC |
Input voltage range | 184 V AC ... 276 V AC (20 °C) | Input voltage range in reference to U | see diagram |
Mains frequency | 50/60 Hz | Drive and function | monostable |
Drive (polarity) | polarized | Typical input current at U | 6.5 mA |
Typical response time | 5 ms ... 15 ms | Typical release time range | 5 ms ... 20 ms |
Coil voltage | 230 V AC | Protective circuit | Varistor |
Operating voltage display | Yellow LED | Contact switching type | 2 changeover contacts |
Type of switch contact | Single contact | Contact material | AgNi |
Maximum switching voltage | 250 V AC/DC | Minimum switching voltage | 5 V (24 mA) |
Limiting continuous current | 8.5 A (see diagram) | Maximum inrush current | 30 A (20 ms, N/O contacts) |
Min. switching current | 5 mA (24 V) | Interrupting rating (ohmic load) max. | 204 W (24 V DC)
124 W (48 V DC)
108 W (60 V DC)
52 W (110 V DC)
48 W (220 V DC)
2125 VA (250 V AC) |
Utilization category CB Scheme (IEC 60947-5-1) | AC15, 1.5 A/240 V (N/O contact)
DC13, 2 A/24 V (N/O contact) | Connection method | Screw connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.5 mm² ... 4 mm² |
Conductor cross-section rigid (2 conductors with same cross section) | 0.5 mm² ... 2.5 mm² | Conductor cross section flexible | 0.5 mm² ... 4 mm²
0.5 mm² ... 4 mm² (Ferrule with plastic sleeve) |
Conductor cross section flexible (2 conductors with same cross section) | 0.5 mm² ... 2.5 mm²
0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve) | Conductor cross section AWG | 20 ... 10 (solid)
20 ... 12 (flexible) |
Tightening torque | 0.5 Nm ... 0.6 Nm | Width | 27 mm |
Height | 89 mm | Depth | 75 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V2 (Housing) |
Degree of protection (Relay base) | IP20 (Relay base) | Degree of protection (Relay) | RT I (Relay) |
Ambient temperature (operation) | -40 °C ... 50 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Standards/regulations | IEC 60947-5-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
