Product Model

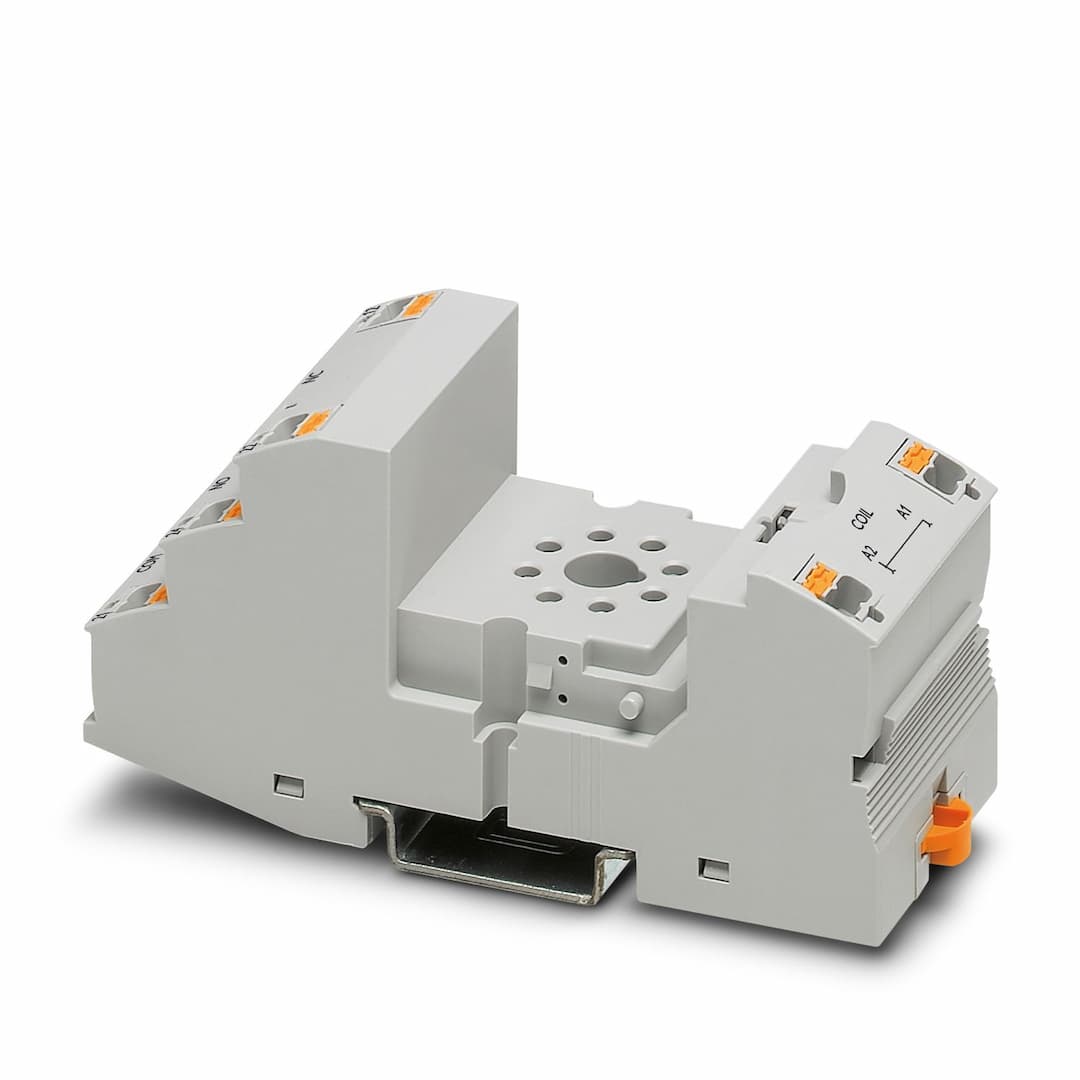

RIF-3-BPT/2X21
Selling Points
- 1The RIF-3-BPT/2X21 relay base ensures consistent operation with a nominal input voltage of 24 V DC.
- 2Featuring push-in connections, this relay base is designed for quick and easy mounting on DIN rail systems.
- 3Offers plug-in options for input and suppressor modules, enhancing customization and flexibility.
- 4Equipped with AgNi, hard gold-plated contacts for long-lasting reliability and minimal wear.
- 5Ideal for octal relay applications, this compact design fits seamlessly into your control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay socket | Product family | RIFLINE complete |
Article revision | 04 | Nominal voltage U | 250 V AC/DC |
Nominal current I | max. 12 A (Depends on application/assembly) | Protective circuit | depending on the selected input/suppressor modules |
Connection method | Push-in connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) |
Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) | Width | 40 mm |
Height | 103 mm | Depth Retaining bracket | 90 mm (with retaining bracket) |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V2 (Housing) |
Ambient temperature (operation) | -40 °C ... 85 °C (Depends on application/assembly) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 | Mounting type | DIN rail mounting |
Mounting position | any |
Specifications may be subject to change without notice
