Product Model

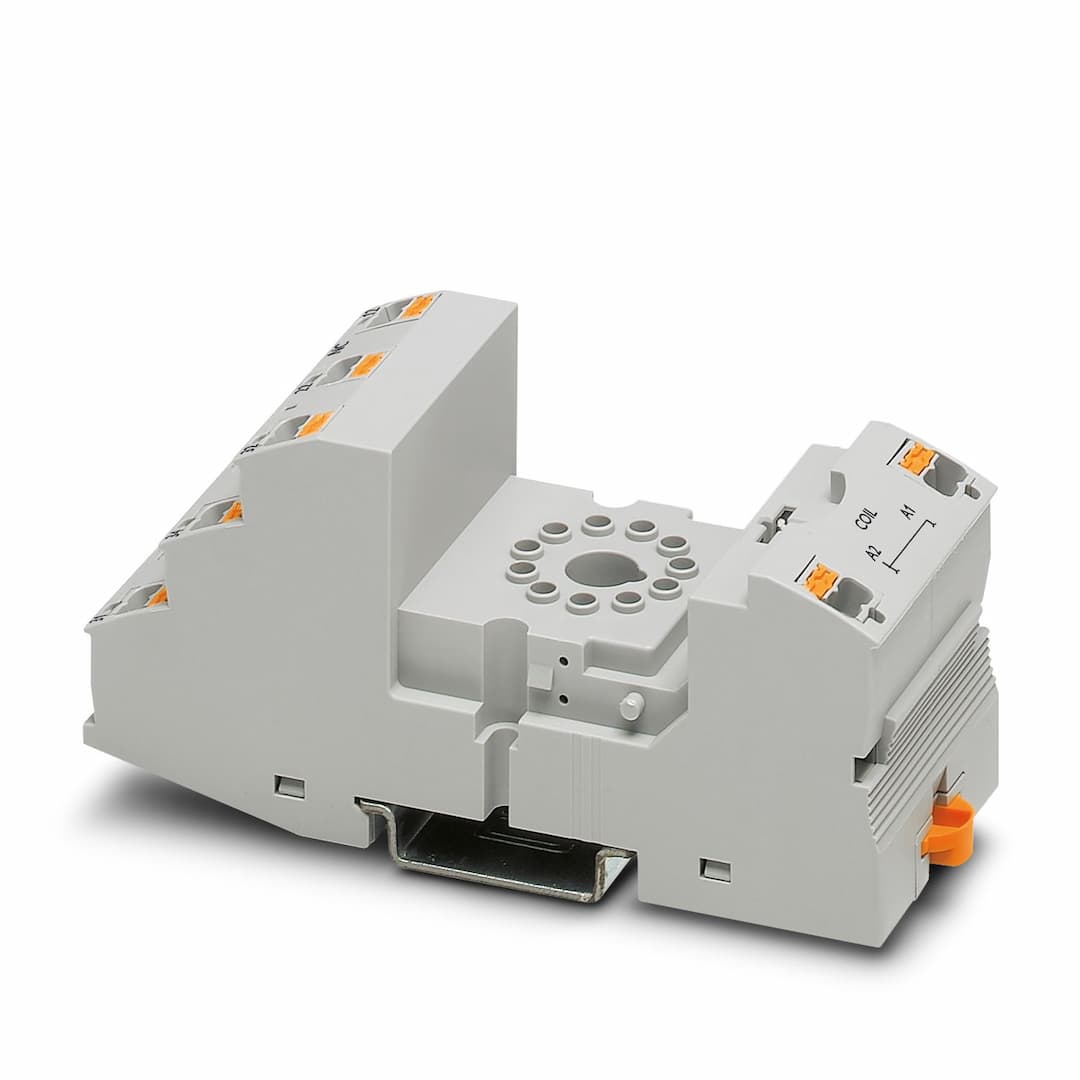

RIF-3-BPT/3X21
Selling Points
- 1Universal Compatibility: Designed for octal relays with 3 PDTs, ensuring compatibility with various relay configurations.
- 2Easy Installation: Features push-in connection and plug-in option for input/suppressor modules, simplifying installation and maintenance.
- 3Durable Construction: Built with high-quality materials, offering reliable performance in a wide range of ambient conditions (-40°C to 85°C).
- 4Versatile Mounting Options: Suitable for mounting on NS 35/7,5, providing flexibility in system design.
- 5High Current Capacity: Supports nominal current up to 12 A, making it ideal for demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay socket | Product family | RIFLINE complete |
Article revision | 06 | Nominal voltage U | 250 V AC/DC |
Nominal current I | max. 12 A (Depends on application/assembly) | Protective circuit | depending on the selected input/suppressor modules |
Connection method | Push-in connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) |
Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) | Diameter | 3.2 mm |
Width | 40 mm | Height | 103 mm |
Depth Retaining bracket | 90 mm (with retaining bracket) | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V2 (Housing) | Ambient temperature (operation) | -40 °C ... 85 °C (Depends on application/assembly) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
