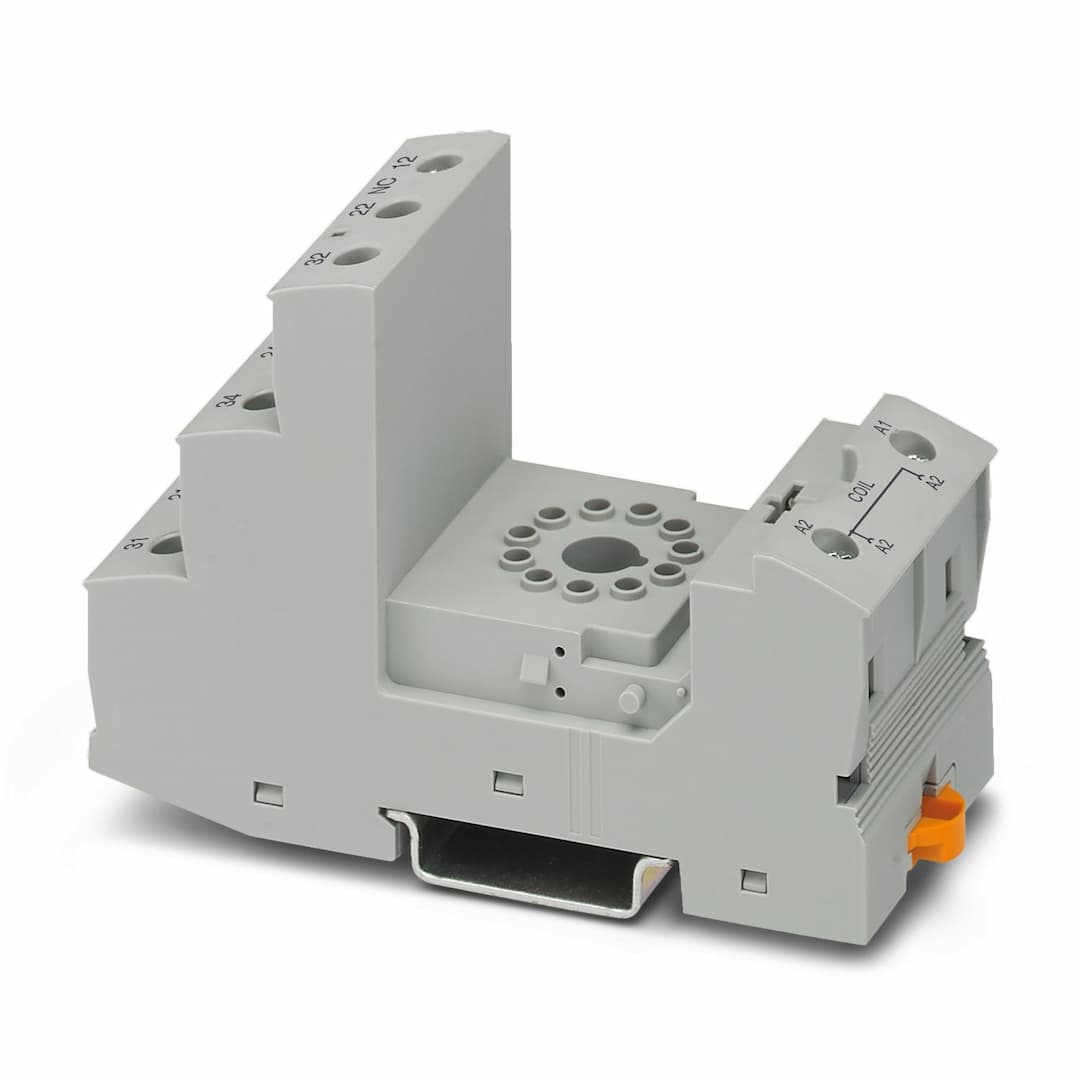

Product Model
RIF-3-BSC/3X21
Selling Points
- 1Reliable Construction: Built with high-quality materials, ensuring durability and long-lasting performance.
- 2Versatile Connectivity: Supports screw connection and flexible conductor cross sections (0.5 mm² to 4 mm²).
- 3DIN Rail Mounting: Easy installation on NS 35/7,5 DIN rails, suitable for various industrial applications.
- 4Comprehensive Protection: Includes protective circuits depending on selected input/suppressor modules for enhanced safety.
- 5Wide Operating Range: Operates within a broad ambient temperature range (-40 °C to 85 °C), making it suitable for diverse environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay socket | Product family | RIFLINE complete |
Article revision | 03 | Nominal voltage U | 250 V AC/DC |
Nominal current I | max. 10.5 A (Depends on application/assembly) | Protective circuit | depending on the selected input/suppressor modules |
Connection method | Screw connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.5 mm² ... 4 mm² | Conductor cross-section rigid (2 conductors with same cross section) | 0.5 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.5 mm² ... 4 mm²
0.5 mm² ... 4 mm² (Ferrule with plastic sleeve) | Conductor cross section flexible (2 conductors with same cross section) | 0.5 mm² ... 2.5 mm²
0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve) |
Conductor cross section AWG | 20 ... 10 (solid)
20 ... 12 (flexible) | Tightening torque | 0.5 Nm ... 0.6 Nm |
Width | 40 mm | Height | 96 mm |
Depth Retaining bracket | 90 mm (with retaining bracket) | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V2 (Housing) | Ambient temperature (operation) | -40 °C ... 85 °C (Depends on application/assembly) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
