Product Model

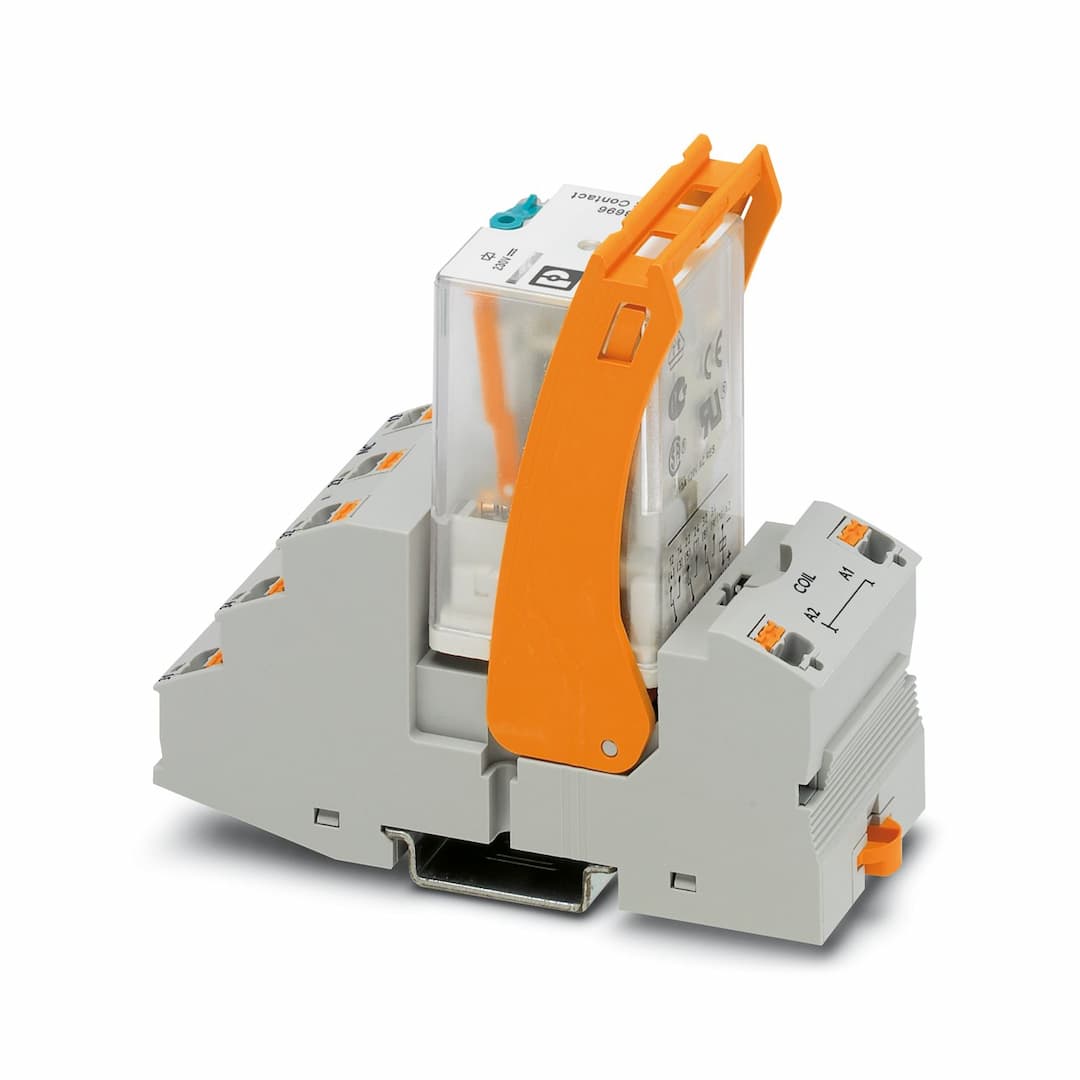

RIF-3-RPT-LDP-24DC/3X21
Selling Points
- 1Highly Reliable: Designed with 3 PDTs and AgNi contacts for reliable switching up to 250 V AC/DC.
- 2Easy Installation: Pre-assembled with push-in connections, simplifying your setup process.
- 3Wide Operating Range: Operates between -40°C to 60°C ambient temperature, ensuring versatility in various environments.
- 4Efficient Power Handling: Handles maximum inrush current of 30 A and limiting continuous current of 8.5 A.
- 5Compact Design: Measures 40 mm x 103 mm x 90 mm, making it ideal for space-constrained applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Relay Module | Product family | RIFLINE complete |
Application | Universal | Operating mode | 100% operating factor |
Mechanical service life | approx. 2x 10 | Date of last data management | 22.08.2024 |
Article revision | 07 | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 2 |
Maximum power dissipation for nominal condition | 1.44 W | Test voltage (Winding/contact) | 2.5 kV |
Test voltage (Contact/contact) | 2 kV | Rated insulation voltage | 250 V AC |
Rated surge voltage | 4 kV | Nominal input voltage U | 24 V DC |
Input voltage range | 20.4 V DC ... 26.4 V DC (20 °C) | Input voltage range in reference to U | see diagram |
Drive and function | monostable | Drive (polarity) | polarized |
Typical input current at U | 60 mA | Typical response time | 18 ms |
Typical release time | 20 ms | Coil voltage | 24 V DC |
Protective circuit | Freewheeling diode | Operating voltage display | Yellow LED |
Contact switching type | 3 changeover contacts | Type of switch contact | Single contact |
Contact material | AgNi | Maximum switching voltage | 250 V AC/DC |
Minimum switching voltage | 10 V (24 mA) | Limiting continuous current | 8.5 A (see diagram) |
Maximum inrush current | 30 A (20 ms, N/O contacts) | Min. switching current | 10 mA (24 V) |
Interrupting rating (ohmic load) max. | 204 W (24 V DC)
124 W (48 V DC)
108 W (60 V DC)
52 W (110 V DC)
48 W (220 V DC)
2125 VA (250 V AC) | Utilization category CB Scheme (IEC 60947-5-1) | AC15, 1.5 A/240 V (N/O contact)
DC13, 2 A/240 V (N/O contact) |
Connection method | Push-in connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) |
Conductor cross section AWG | 26 ... 16 (solid)
26 ... 16 (flexible) | Diameter | 3.2 mm |
Width | 40 mm | Height | 103 mm |
Depth | 90 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V2 (Housing) | Degree of protection (Relay base) | IP20 (Relay base) |
Degree of protection (Relay) | RT I (Relay) | Ambient temperature (operation) | -40 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Identification | ISA-S71.04. G3 Harsh Group
EN 60068-2-60 |
Standards/regulations | IEC 60947-5-1 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
